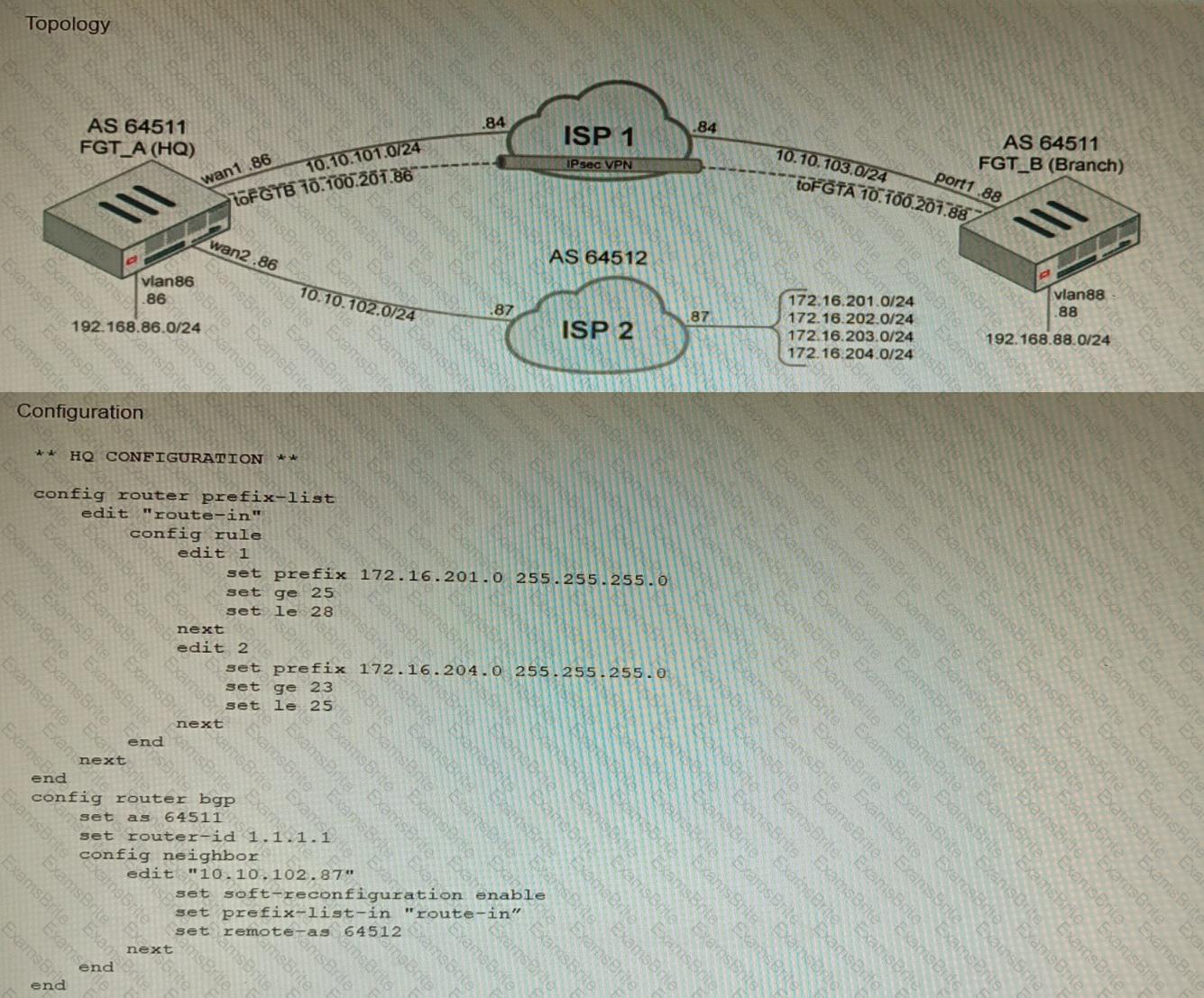

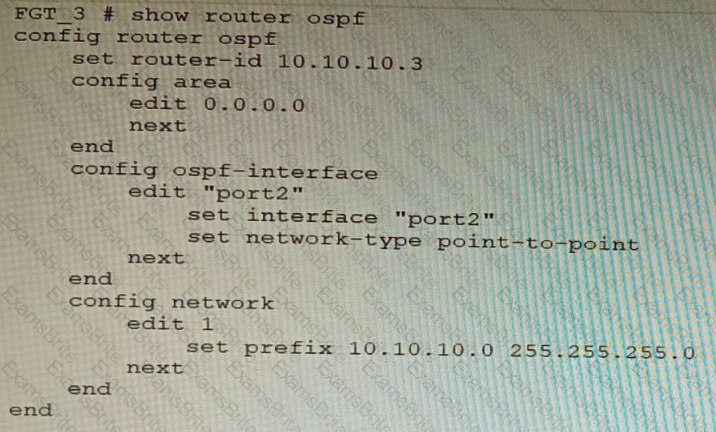

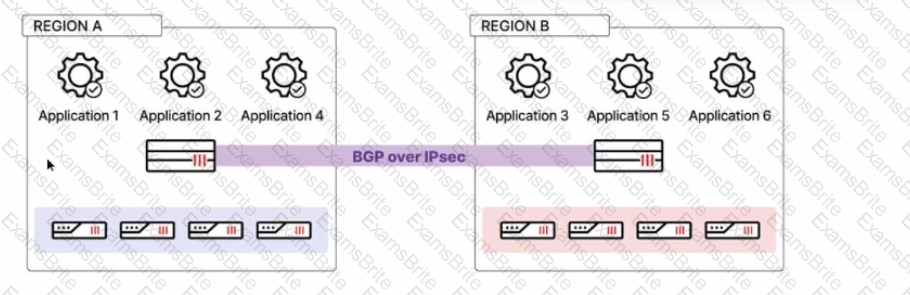

The prefix list in the exhibit is configured to match prefixes that are either in the 172.16.204.0/24 subnet or in the 172.62.0.0/16 subnet. The routes that match these prefixes will be active in the routing table on the HQ firewall.

The routes that match the following prefixes will not be active in the routing table:

172.16.201.96/29

172.62.0.64/27

These routes do not match the criteria set by the prefix list.

References:

Prefix lists | FortiGate / FortiOS 7.4.0 - Fortinet Document Library

Configuring BGP | FortiGate / FortiOS 7.4.0 - Fortinet Document Library

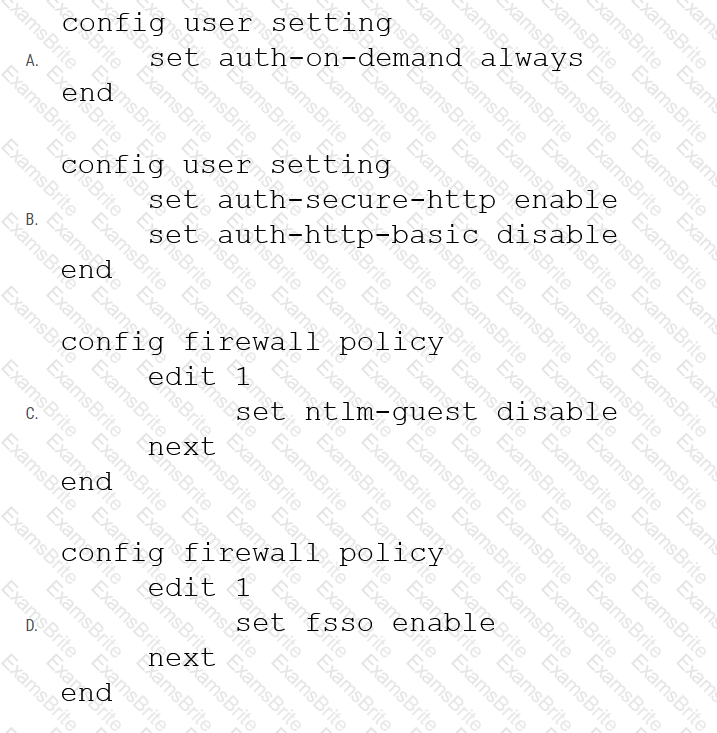

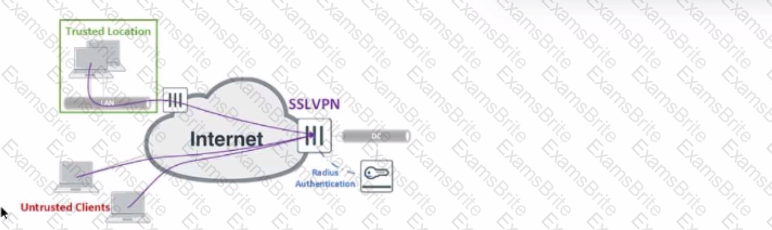

References:

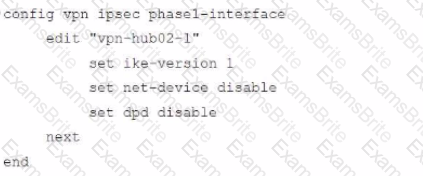

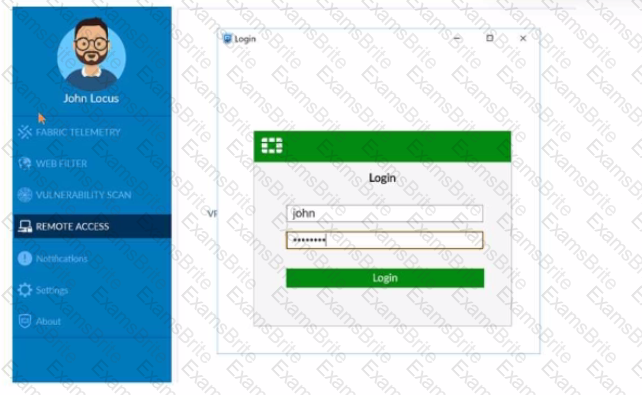

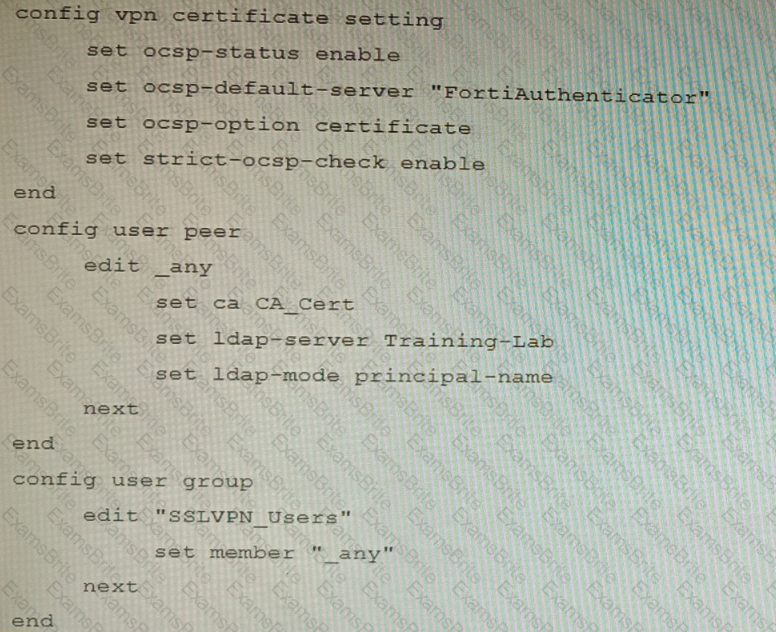

Configuring SSL VPN authentication using digital certificates | FortiGate / FortiOS 7.2.0 - Fortinet Document Library

Online Certificate Status Protocol (OCSP) | FortiGate / FortiOS 7.2.0 - Fortinet Document Library

Certificate Revocation Lists (CRLs) | FortiGate / FortiOS 7.2.0 - Fortinet Document Library

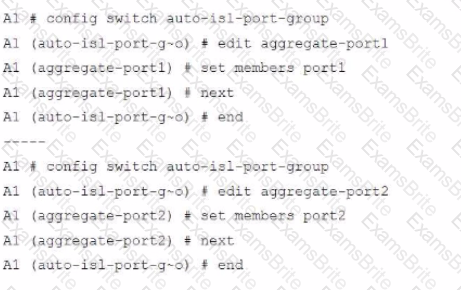

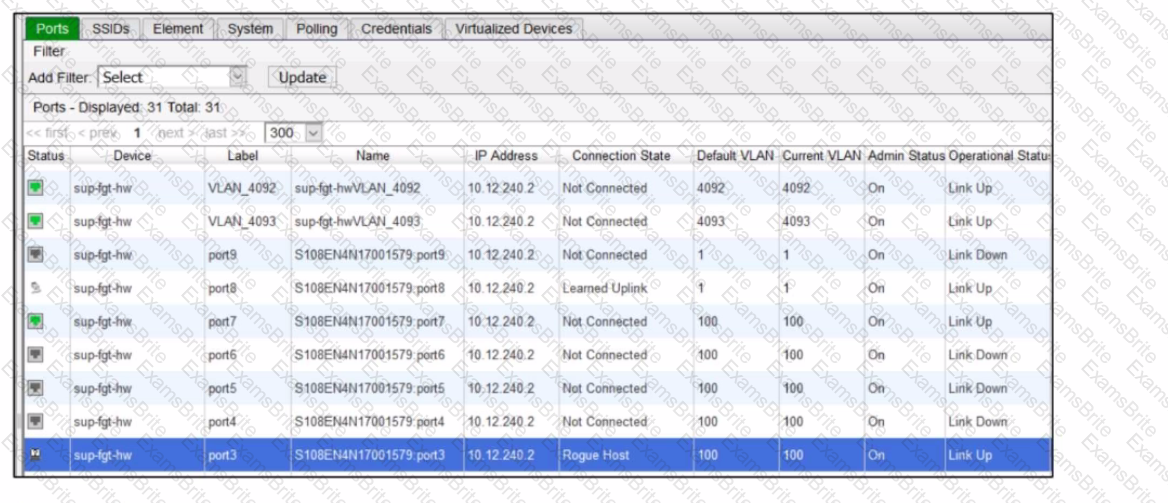

C. The IP address of the FortiSwitch is 10.12.240.2:This statement is correct based on the exhibit and your clarification. The exhibit lists the "IP Address" as 10.12.240.2 across multiple entries, including ports and VLANs associated with the device "sup-fgt-hw" (FortiSwitch). Your reasoning indicates that this IP is the management address of the FortiSwitch, as it is consistently shown as the IP for the device containing the ports. In Fortinet’s architecture, as described in the NSE 8 study guide, the management IP of a FortiSwitch is typically configured and visible in such configurations, especially when integrated with FortiGate and FortiNAC. The "Device" column labeling "sup-fgt-hw" further supports that this is the FortiSwitch, and the IP 10.12.240.2 is its management address. This aligns with FortiSwitch management and integration details in the NSE 8 study guide.

D. An unknown host is connected to port3:This statement is correct as the exhibit highlights port3 under the "Name" column for the device "sup-fgt-hw" with a "Rogue Host" status in the "Connection" column, an IP address of 10.12.240.2, a Default VLAN of 100, and an Operational Status of "Link Up." In FortiNAC, a "Rogue Host" indicates an unknown or unauthorized device connected to the network, which FortiNAC identifies for further action or isolation. This is consistent with FortiNAC’s capabilities for detecting and classifying unknown devices, as detailed in the NSE 8 study guide under network access control and rogue device detection.

Why A and B are incorrect:

A. A device that is modeled in FortiNAC is connected on VLAN_4093: This is incorrect based on your clarification that there is no device connected on that port—it is simply the default VLAN (4093) for that entry. The exhibit shows VLAN_4093 with a "Not Connected" status and "Link Up" operational status, but no active device connection is indicated. The NSE 8 study guide emphasizes that FortiNAC requires an active connection and device profiling for a device to be considered "connected," which is not evident here for VLAN_4093.

B. Port8 is connected to a FortiGate in FortiLink mode: This is incorrect because the exhibit shows port8 with a "Learned Uplink" status, which, as you noted, refers to any kind of uplink and does not specifically indicate FortiLink mode. FortiLink mode is a specific configuration between FortiGate and FortiSwitch requiring explicit settings, which are not mentioned or implied in the exhibit. The NSE 8 study guide clarifies that FortiLink mode involves distinct configuration details (e.g., FortiLink interfaces), which are absent here.

Fortinet Network Security Expert 8 Study Guide References:

FortiNAC 7.2 Admin Guide (NSE 8): Sections on Device Visibility, VLAN Management, and Rogue Device Detection.

FortiSwitch 7.2 Admin Guide (NSE 8): Sections on FortiLink Configuration, Network Segmentation, and Management IP Configuration.

FortiGate 7.2 Admin Guide (NSE 8): Sections on Integration with FortiNAC and FortiSwitch for Network Security.

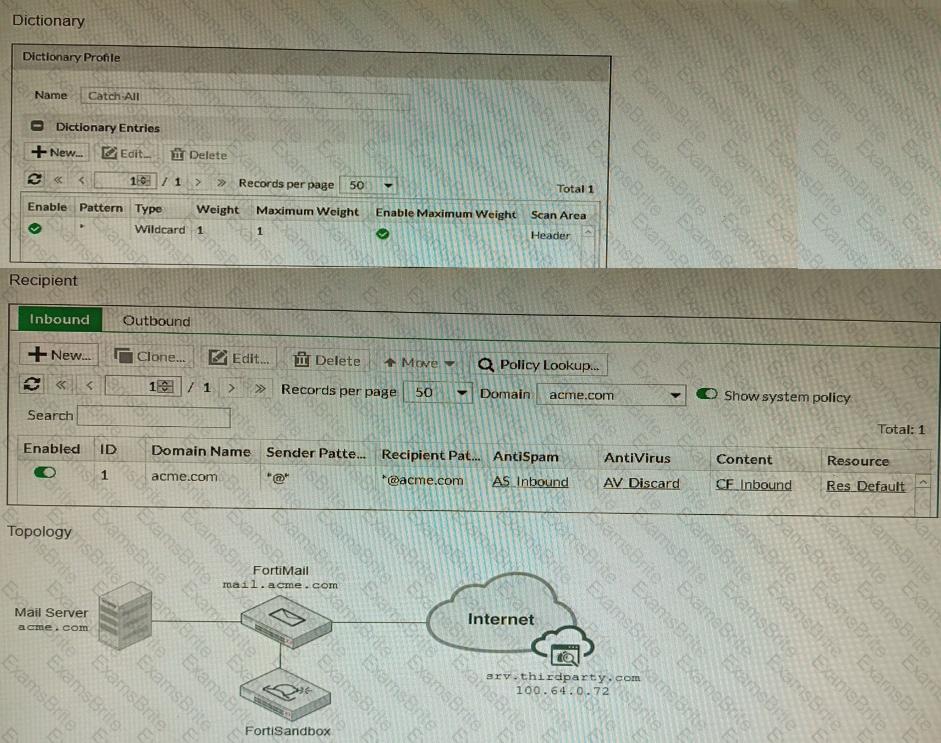

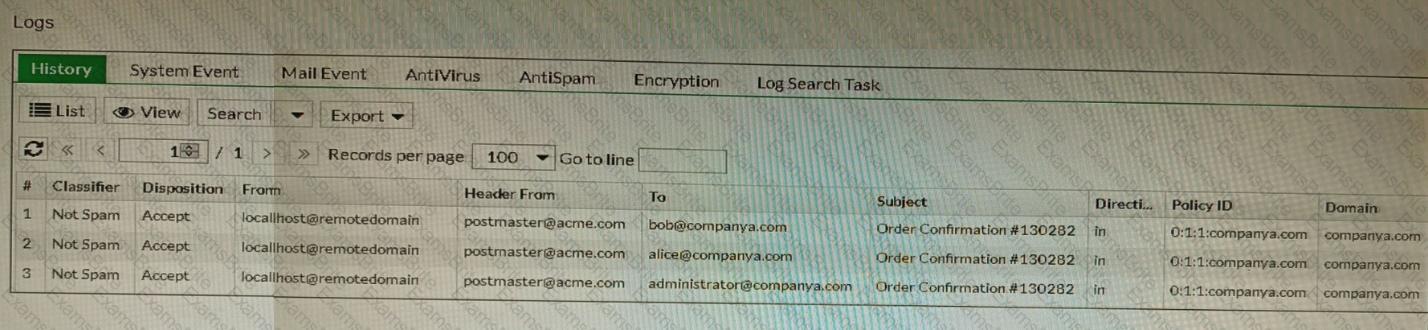

A is correct because the scan order must be changed to antispam-sandbox-content in order for FortiMail to scan the email for spam and viruses before forwarding it to the third-party service.

B is correct because the Catch-All profile must be applied to the CFInbound profile in order for FortiMail to forward clean emails to the third-party service.

E is correct because an IP policy must be created with a Source value of 100.64.0.72/32 in order to allow emails from the third-party service to be delivered to FortiMail.

The other options are not necessary to meet the requirements. Option C is not necessary because the access receive rule will already allow emails from the third-party service to be received by FortiMail. Option D is not necessary because the Catch-All profile already allows emails to be delivered to any destination.

Here are some additional details about integrating a third-party service into the FortiMail email processing path:

The third-party service must be able to receive emails from FortiMail and send them back to FortiMail.

The third-party service must be able to communicate with FortiMail using the SMTP protocol.

The third-party service must be able to authenticate with FortiMail using the SMTP AUTH protocol.

Once the third-party service is integrated into the FortiMail email processing path, all inbound emails will be processed by FortiMail as usual. If the email is clean, FortiMail will forward it to the third-party service. The third-party service will then send the email back to FortiMail for final delivery. FortiMail will not scan the email again.

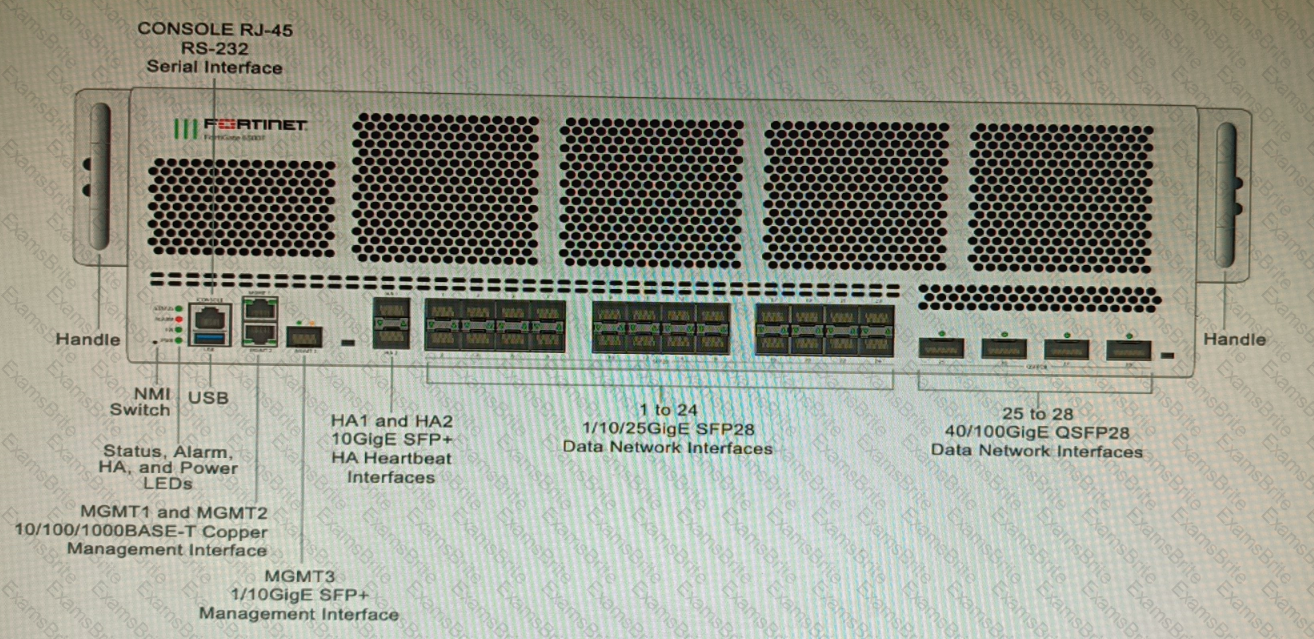

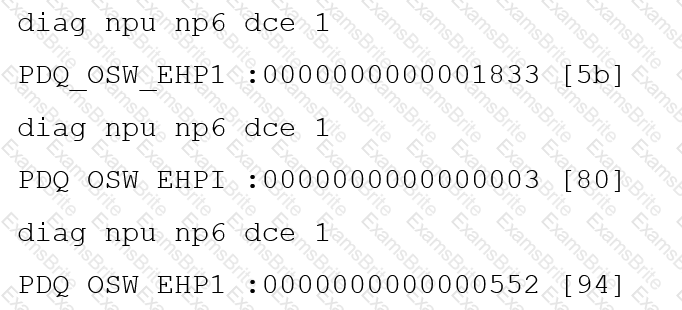

The diagnose command shown in the output is used to display information about NP6 packet descriptor queues. The output shows that there are 16 NP6 units in total, and each unit has four XAUI ports (XA0-XA3). The output also shows that there are some non-zero values in the columns PDQ ACCU (packet descriptor queue accumulated counter) and PDQ DROP (packet descriptor queue drop counter). These values indicate that there are some packet descriptor queues that have reached their maximum capacity and have dropped some packets at the XAUI ports. This could be caused by congestion or misconfiguration of the XAUI ports or the ISF (Internal Switch Fabric). References:https://docs.fortinet.com/document/fortigate/7.0.0/cli-reference/19662/diagnose-np6-pdq

The output is showing a packet descriptor queue accumulated counter, which is a measure of the number of packets that have been dropped by the NP6 due to congestion. The counter will increase if there are more packets than the NP6 can handle, which can happen if the bandwidth between the ISF and the NP is not sufficient or if the HPE shaper is enabled.

The output also shows that there are packet drops at the XAUI, which is the interface between the NP6 and the FortiGate's backplane. This means that the NP6 is not able to keep up with the traffic and is dropping packets.

The other statements are not true. Host-shortcut mode is not enabled, and enabling bandwidth control between the ISF and the NP will not change the output. HPE shaper is a feature that can be enabled to improve performance, but it will not change the output of the diagnose command.

FortiSIEM supports two methods for importing user defined Lookup Table Data:

Report: You can import lookup table data from a report. This is the most common method for importing lookup table data.

API: You can also import lookup table data using the FortiSIEM API. This is a more advanced method that allows you to import lookup table data programmatically.

FTP, SCP, and other file transfer protocols are not supported for importing lookup table data into FortiSIEM.

B is correct because creating an HA setup with a second FortiDDoS 200F will provide redundancy in case one of the devices fails. This will prevent all traffic from being dropped in the event of a failure.

D is correct because the FortiDDoS 1500F has a larger throughput capacity than the FortiDDoS 200F. This means that it will be less likely to drop traffic even under heavy load.

The other options are incorrect. Option A is incorrect because changing the Adaptive Mode will not prevent the device from dropping traffic. Option C is incorrect because moving the internet connection from the SFP interfaces to the LC interfaces will not change the throughput capacity of the device.

References:

FortiDDoS 200F Datasheet | Fortinet Document Library

FortiDDoS 1500F Datasheet | Fortinet Document Library

High Availability (HA) on FortiDDoS | FortiDDoS / FortiOS 7.0.0 - Fortinet Document Library
