The correct answers are C and E . Fortinet states that the SOC Dashboard provides an effective visualization of reported incidents and events and, through Security Fabric integration, enables administrators to gain complete visibility of the entire attack surface . The MITRE ATT & CK Attack view complements this by presenting incident and event information according to ATT & CK-defined attack tactics and techniques, allowing analysts to understand where observed activity maps into known adversary behavior. The MITRE Coverage view has a different purpose—it measures event-handler coverage—while the Attack view focuses on actual incidents and events. Risk Summary and Resources Reports are associated primarily with FortiSIEM reporting functions, and Analytics Search is a query and investigation mechanism rather than a consolidated attack-surface view. Therefore, the required FortiAnalyzer views are MITRE ATT & CK Attack and SOC Dashboard .

================

The correct answers are A and C .

Option C is correct because the profile clearly contains the Operational Technology category and specific OT application signatures such as Modbus and IEC.60870.5.104 . The study guide says “You can use application control signatures to detect OT protocols” and “You can filter to a specific OT protocol.” That means OT application signatures are active in this sensor profile.

Option A is correct because the guide explains that application control works at different levels: “Detection of protocol (one detection per session)” and “Message level (one detection per protocol message).” It also says you can use application signatures for “granular message type identification.” In the exhibit, IEC.60870.5.104.Control.Functions is explicitly configured, which is a granular IEC message/control-level signature rather than only a protocol-level match. That means logging and control can occur at the IEC command level.

Option B is not correct because the profile shows Modbus configured at the parent protocol level as Monitor , while the guide states that the “parent signature takes precedence over the child signature.” Since protocol-level detection is one detection per session , that does not mean FortiGate will necessarily log each Modbus command individually.

Option D is incorrect because even though the broader Operational Technology category is set to block, the profile includes specific application and filter overrides for Modbus and IEC 104 behavior. So the resulting effect is not simply that all OT protocols are blocked .

Based on the exhibit and the OT Security 7.6 Architect standards for Secure Remote Access :

Secure Tunneling (Statement A) : The exhibit shows a Remote PC connecting through a VPN Cloud to the Edge-FortiGate . In the Fortinet architecture, IPsec VPN is the primary method for establishing a secure, encrypted tunnel for remote administrators or supervisors to access the internal OT segments (Level 2/3) from an external location.

Multi-Factor Authentication (Statement B) : Secure remote access in OT environments (aligned with IEC 62443 standards) requires strong authentication. The study guide emphasizes the use of FortiToken to provide Two-Factor Authentication (2FA) for VPN users, ensuring that compromised credentials alone are not enough to gain access to critical infrastructure.

FSSO (Statement D) : Fortinet Single Sign-On is generally used for identifying internal users already on the network to apply identity-based policies; it is not the primary mechanism for establishing the remote connection itself.

SD-WAN (Statement C) : While SD-WAN can manage the path of the VPN traffic, it is a WAN optimization and reliability feature, not a " secure remote access " feature for a supervisor in the context of authentication and encryption.

Based on the technical data provided in the exhibits and the OT Security 7.6 Architect curriculum:

Industrial Protocol Identification (Statement A) : The log details exhibit clearly shows that the Destination Port used in the attack is 502 . According to the study guide ' s section on Industrial Protocol Protection , the standard port used by the Modbus TCP protocol is 502 . Furthermore, the attack name identifies a " Triangle.Research.Nano-10.PLC, " which are industrial controllers commonly utilizing Modbus for communications.

Attack Mitigation (Statement B) : The log details specify that the Action taken by the FortiGate (Edge-FortiGate) was dropped . In cybersecurity and Fortinet fabric operations, dropping a packet associated with an IPS signature means the traffic was blocked from reaching its target, thereby mitigating the attack.

Target IP Address (Statement E) : The log detail explicitly lists the Destination IP as 192.168.2.3 . The Incident Analysis page also titles the incident with dstip:192.168.2.3. While the " Affected Endpoint " is shown as 10.1.5.20 , in an " outgoing " attack direction (as shown in the log), this likely refers to the internal source/attacker IP, whereas the target is the destination IP (192.168.2.3). Thus, Statement E is incorrect.

Protocol Conflict (Statement C) : The IEC 104 protocol typically utilizes port 2404 . Since the log specifies port 502, Statement C is incorrect.

Severity Distinction (Statement D) : While the Incident severity is marked as High , the question specifically asks about event severity. The " Events " table at the bottom of the Incident Analysis page shows a " User login/logout failed " event with a medium severity. Because there is a distinction in the management console between the severity of individual events and the aggregated incident, and Statement A and B are technically definitive based on port and action, A and B are the correct architectural choices.

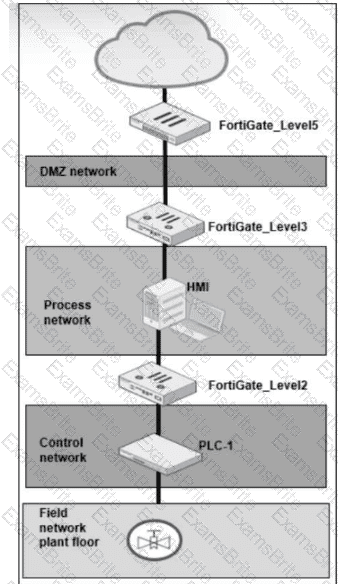

The correct answers are B. IPS on FortiGate_Level5 and C. Virtual patching on FortiGate_Level2 .

The study guide explains that “the first line of defense is securing the IT side of your network” and that FortiGate should be placed to protect ICS environments and stop threats from propagating from IT into OT. It also states that IPS improves OT security because “today’s threat landscape requires IPS to block a wider range of threats and improve OT security” and that in IPS mode, vulnerable devices are protected . This makes FortiGate_Level5 , at the upper boundary near the DMZ and external connectivity, the correct place to implement IPS as a primary protection control.

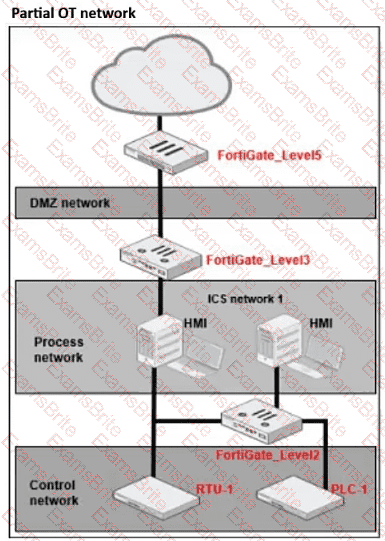

The study guide also states in the Purdue model section that “Level 2 consists of the processes and programs that control the PLCs, RTUs, and IEDs found at Level 1” and that “it is necessary to segment, or even microsegment, these servers with firewall segmentation, along with policies that include application control and virtual patching.” In addition, the virtual patching section says “Virtual patching protects OT devices that have not yet been updated against vulnerability exploits” and applies when traffic related to the vulnerable device reaches the firewall policy. Since FortiGate_Level2 sits between the process network and the control network, it is the right enforcement point for virtual patching to protect the PLC-side assets.

Option A is not one of the best answers because offline IDS only detects and logs attacks; the guide says “no traffic flows through FortiGate” in offline IDS mode, whereas IPS can actually block threats. Option D is also not the best answer because OT signatures are enabled within the IPS framework, but the stronger control explicitly described for this design is to deploy IPS at the upper boundary and virtual patching closer to vulnerable OT devices .

Industrial Protocol

Correct Characteristic

POWERLINK

Mainly used for the transmission of process data

EtherCAT

Offers real-time data transmission in a primary-secondary configuration

Modbus

Uses client/server communication

Ethernet/IP

Based entirely on Ethernet standards

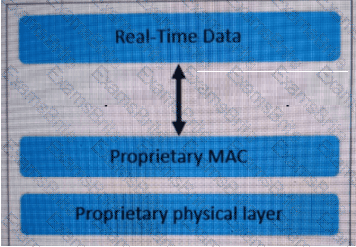

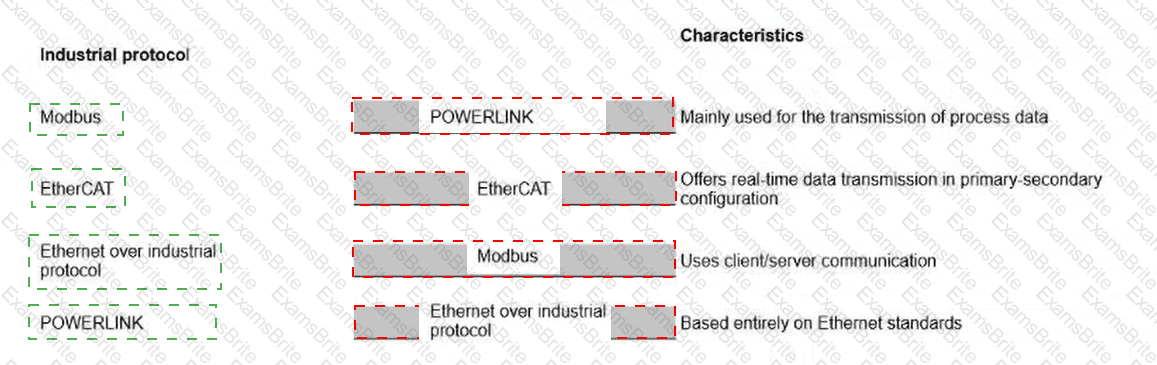

The correct mappings follow the industrial Ethernet characteristics defined in the OT Security 7.6 curriculum. Ethernet/IP is the industrial protocol based entirely on Ethernet standards and adapts to the standard Ethernet/TCP-IP architecture. EtherCAT is designed for deterministic real-time communication and specifically operates in a primary-secondary configuration while bypassing OSI layers 3 through 6. POWERLINK is an open real-time industrial Ethernet protocol that uses OSI layers 2 and 7 and is mainly intended for transmitting process data. Modbus , by contrast, uses a client/server communication model in which the server responds only after receiving a request from a client; it is not considered a real-time transmission protocol. These distinctions uniquely determine all four drag-and-drop placements.

The correct answers are B and C . The study guide states that “You can use application control signatures to detect OT protocols” and that “Application control detects the protocols used in applications like Modbus, IEC 104, and the contents of the telecontrol messages” . It also shows that a Modbus application control profile can be enabled on a firewall policy “for OT protocol visibility in the monitor status.” This directly supports B , because application control is the feature used to identify and monitor OT protocols on FortiGate.

The guide also explains under IPS that “By default, OT signatures are excluded from the signatures lists on the GUI until you enable them on the CLI” using config ips global and set exclude-signatures none . Once enabled, FortiGate can use those OT signatures for OT-aware inspection and protection. That supports C as the second required configuration. A is related to device discovery, not protocol identification, and D is focused on exploit and vulnerability detection rather than the first-step goal of identifying OT protocols.

The correct answers are B and D .

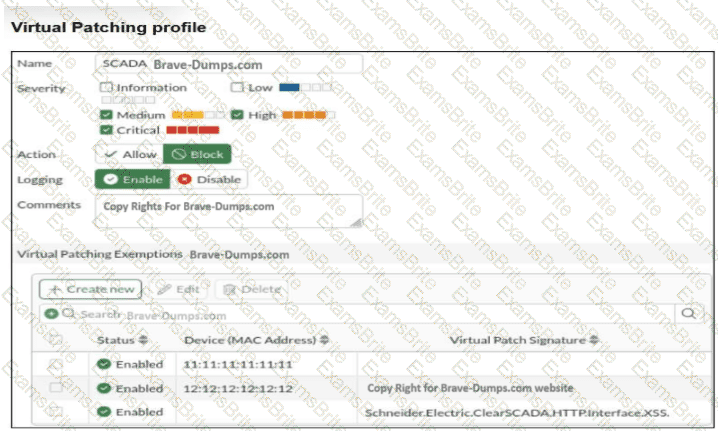

Option B is correct because the profile has Medium , High , and Critical selected, while Low severity is not selected. That means low-severity virtual patching signatures are not enforced by this profile. So for the device with MAC address 12:12:12:12:12 , low-severity signatures are not blocked. The study guide explains virtual patching as device-specific protection where “FortiGate caches the signatures and mitigation rules that apply to each device” and applies them when the related traffic matches the firewall policy.

Option D is correct because the Virtual Patching Exemptions table shows a row with the MAC address 11:11:11:11:11 and no specific signature listed. The study guide states that in the Virtual Patching profile you can “Exempt a specific device with the MAC address or a specific signature.” A MAC-only exemption means that specific device is excluded from virtual patching enforcement, so in practical terms it is treated as having no applicable vulnerabilities in this profile.

Option C is incorrect because the profile does not block critical signatures for all devices. The exemptions list proves that at least one device can be excluded by MAC address, and a specific signature can also be exempted. Therefore, enforcement is not universal across all devices.

Option A is incorrect because the entry Schneider.Electric.ClearSCADA.HTTP.Interface.XSS appears as a specific signature exemption , not as the only remaining vulnerability. The profile display is showing exemptions, not a statement that only one vulnerability is still present.
