Network Functions Virtualization (NFV) is a framework designed to virtualize network services traditionally run on proprietary hardware. It decouples network functions from dedicated hardware appliances and implements them as software running on standard servers or virtual machines. Let’s analyze each statement:

A. The NFV framework explains how VNFs fit into the whole solution.

Correct:The NFV framework provides a structured approach to deploying and managing Virtualized Network Functions (VNFs). It defines how VNFs interact with other components, such as the NFV Infrastructure (NFVI), Management and Orchestration (MANO), and the underlying hardware.

B. The NFV Infrastructure (NFVI) is a component of NFV.

Correct:The NFV Infrastructure (NFVI) is a critical part of the NFV architecture. It includes the physical and virtual resources (e.g., compute, storage, networking) that host and support VNFs. NFVI acts as the foundation for deploying and running virtualized network functions.

C. The NFV Infrastructure (NFVI) is not a component of NFV.

Incorrect:This statement contradicts the NFV architecture. NFVI is indeed a core component of NFV, providing the necessary infrastructure for VNFs.

D. The NFV framework is defined by the W3C.

Incorrect:The NFV framework is defined by the European Telecommunications Standards Institute (ETSI), not the W3C. ETSI’s NFV Industry Specification Group (ISG) established the standards and architecture for NFV.

Why These Answers?

Framework Explanation:The NFV framework provides a comprehensive view of how VNFs integrate into the overall solution, ensuring scalability and flexibility.

NFVI Role:NFVI is essential for hosting and supporting VNFs, making it a fundamental part of the NFV architecture.

JNCIA Cloud References:

The JNCIA-Cloud certification covers NFV as part of its cloud infrastructure curriculum. Understanding the NFV framework and its components is crucial for deploying and managing virtualized network functions in cloud environments.

For example, Juniper Contrail integrates with NFV frameworks to deploy and manage VNFs, enabling service providers to deliver network services efficiently and cost-effectively.

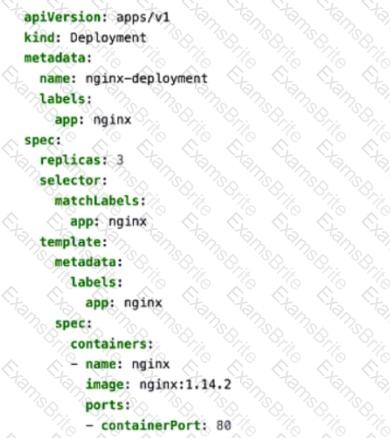

The provided YAML manifest defines a Kubernetes Deployment object that creates and manages a set of pods running the NGINX web server. Let’s analyze each statement in detail:

A. The created pods are receiving traffic on port 80.

Correct:

The containerPort: 80 field in the manifest specifies that the NGINX container listens on port 80 for incoming traffic.

While this does not expose the pods externally, it ensures that the application inside the pod (NGINX) is configured to receive traffic on port 80.

B. This manifest is used to create a deployment.

Correct:

The kind: Deployment field explicitly indicates that this manifest is used to create a Kubernetes Deployment .

Deployments are used to manage the desired state of pods, including scaling, rolling updates, and self-healing.

C. This manifest is used to create a deploymentConfig.

Incorrect:

deploymentConfig is a concept specific to OpenShift, not standard Kubernetes. In OpenShift, deploymentConfig provides additional features like triggers and lifecycle hooks, but this manifest uses the standard Kubernetes Deployment object.

D. Four pods are created as a result of applying this manifest.

Incorrect:

The replicas: 3 field in the manifest specifies that the Deployment will create three replicas of the NGINX pod. Therefore, only three pods are created, not four.

Why These Statements?

Traffic on Port 80:

The containerPort: 80 field ensures that the NGINX application inside the pod listens on port 80. This is critical for the application to function as a web server.

Deployment Object:

The kind: Deployment field confirms that this manifest creates a Kubernetes Deployment, which manages the lifecycle of the pods.

Replica Count:

The replicas: 3 field explicitly states that three pods will be created. Any assumption of four pods is incorrect.

Additional Context:

Kubernetes Deployments:Deployments are one of the most common Kubernetes objects used to manage stateless applications. They ensure that the desired number of pod replicas is always running and can handle updates or rollbacks seamlessly.

Ports in Kubernetes:The containerPort field in the pod specification defines the port on which thecontainerized application listens. However, to expose the pods externally, a Kubernetes Service (e.g., NodePort, LoadBalancer) must be created.

JNCIA Cloud References:

The JNCIA-Cloud certification covers Kubernetes concepts, including Deployments, Pods, and networking. Understanding how Deployments work and how ports are configured is essential for managing containerized applications in cloud environments.

For example, Juniper Contrail integrates with Kubernetes to provide advanced networking and security features for Deployments like the one described in the exhibit.

In cloud networking, overlay networks are used to create virtualized networks that abstract the underlying physical infrastructure. To supportmultipath capabilities, certain protocols provide efficient tunneling mechanisms. Let’s analyze each option:

A. MPLSoGRE

Incorrect:MPLS over GRE (MPLSoGRE) is a tunneling protocol that encapsulates MPLS packets within GRE tunnels. While it supports MPLS traffic, it does not inherently provide multipath capabilities.

B. VXLAN

Correct:VXLAN (Virtual Extensible LAN) is an overlay protocol that encapsulates Layer 2 Ethernet frames within UDP packets. It supports multipath capabilities by leveraging the Equal-Cost Multi-Path (ECMP) routing in the underlay network. VXLAN is widely used in cloud environments for extending Layer 2 networks across data centers.

C. VPN

Incorrect:Virtual Private Networks (VPNs) are used to securely connect remote networks or users over public networks. They do not inherently provide multipath capabilities or overlay tunneling for virtual networks.

D. MPLSoUDP

Correct:MPLS over UDP (MPLSoUDP) is a tunneling protocol that encapsulates MPLS packets within UDP packets. Like VXLAN, it supports multipath capabilities by utilizing ECMP in the underlay network. MPLSoUDP is often used in service provider environments for scalable and flexible network architectures.

Why These Protocols?

VXLAN:Provides Layer 2 extension and supports multipath forwarding, making it ideal for large-scale cloud deployments.

MPLSoUDP:Combines the benefits of MPLS with UDP encapsulation, enabling efficient multipath routing in overlay networks.

JNCIA Cloud References:

The JNCIA-Cloud certification covers overlay networking protocols like VXLAN and MPLSoUDP as part of its curriculum on cloud architectures. Understanding these protocols is essential for designing scalable and resilient virtual networks.

For example, Juniper Contrail uses VXLAN to extend virtual networks across distributed environments, ensuring seamless communication and high availability.

CPU flags indicate hardware support for specific features, including virtualization. Let’s analyze each option:

A. lvm

Incorrect: LVM (Logical Volume Manager) is a storage management technology used in Linux systems. It is unrelated to CPU virtualization.

B. vmx

Correct: The vmx flag indicates Intel Virtualization Technology (VT-x), which provides hardware-assisted virtualization capabilities. This feature is essential for running hypervisors like VMware ESXi, KVM, and Hyper-V.

C. xvm

Incorrect: xvm is not a recognized CPU flag for virtualization. It may be a misinterpretation or typo.

D. kvm

Correct: The kvm flag indicates Kernel-based Virtual Machine (KVM) support, which is a Linux kernel module that leverages hardware virtualization extensions (e.g., Intel VT-x orAMD-V) to run virtual machines. While kvm itself is not a CPU flag, it relies on hardware virtualization features like vmx (Intel) or svm (AMD).

Why These Answers?

Hardware Virtualization Support: Both vmx (Intel VT-x) and kvm (Linux virtualization) are directly related to CPU virtualization. These flags enable efficient execution of virtual machines by offloading tasks to the CPU.

JNCIA Cloud References:

The JNCIA-Cloud certification emphasizes understanding virtualization technologies, including hardware-assisted virtualization. Recognizing CPU flags like vmx and kvm is crucial for deploying and troubleshooting virtualized environments.

For example, Juniper Contrail integrates with hypervisors like KVM to manage virtualized workloads in cloud environments. Ensuring hardware virtualization support is a prerequisite for deploying such solutions.

Kubernetes networking is designed to provide seamless communication between pods, regardless of their location in the cluster. Let’s analyze each statement:

A. Pods are allowed to communicate if they are only in the default namespaces.

Incorrect:Pods can communicate with each other regardless of the namespace they belong to. Namespaces are used for logical grouping and isolation but do not restrict inter-pod communication.

B. Pods are not allowed to communicate if they are in different namespaces.

Incorrect:Pods in different namespaces can communicate with each other as long as there are no network policies restricting such communication. Namespaces do not inherently block communication.

C. Full communication between pods is allowed across nodes without requiring NAT.

Correct:Kubernetes networking is designed so that pods can communicate directly with each other across nodes without Network Address Translation (NAT). Each pod has a unique IP address, and the underlying network ensures direct communication.

D. Each pod has its own IP address in a flat, shared networking namespace.

Correct:In Kubernetes, each pod is assigned a unique IP address in a flat network space. This allows pods to communicate with each other as if they were on the same network, regardless of the node they are running on.

Why These Statements?

Flat Networking Model:Kubernetes uses a flat networking model where each pod gets its own IP address, simplifying communication and eliminating the need for NAT.

Cross-Node Communication:The design ensures that pods can communicate seamlessly across nodes, enabling scalable and distributed applications.

JNCIA Cloud References:

The JNCIA-Cloud certification emphasizes Kubernetes networking concepts, including pod-to-pod communication and the flat networking model. Understanding these principles is essential for designing and managing Kubernetes clusters.

For example, Juniper Contrail provides advanced networking features for Kubernetes, ensuring efficient and secure pod communication across nodes.

OpenShift provides multiple methods for installing and deploying clusters, depending on the level of control and automation desired. Let’s analyze each option:

A. installer-provisioned infrastructure

Correct:

Installer-provisioned infrastructure (IPI)is an automated installation method where the OpenShift installer provisions and configures the underlying infrastructure (e.g., virtual machines, networking) using cloud provider APIs or bare-metal platforms. This method simplifies deployment by handling most of the setup automatically.

B. kubeadm

Incorrect:

kubeadmis a tool used to bootstrap Kubernetes clusters manually. While it is widely used for Kubernetes installations, it is not specific to OpenShift and is not an official installation method for OpenShift clusters.

C. user-provisioned infrastructure

Correct:

User-provisioned infrastructure (UPI)is a manual installation method where users prepare and configure the infrastructure (e.g., virtual machines, load balancers, DNS) before deploying OpenShift. This method provides greater flexibility and control over the environment but requires more effort from the user.

D. kubespray

Incorrect:

Kubesprayis an open-source tool used to deploy Kubernetes clusters on various infrastructures. Likekubeadm, it is not specific to OpenShift and is not an official installation method for OpenShift clusters.

Why These Methods?

Installer-Provisioned Infrastructure (IPI):Automates the entire installation process, making it ideal for users who want a quick and hassle-free deployment.

User-Provisioned Infrastructure (UPI):Allows advanced users to customize the infrastructure and tailor the deployment to their specific needs.

JNCIA Cloud References:

The JNCIA-Cloud certification covers OpenShift installation methods as part of its curriculum on container orchestration platforms. Understanding the differences between IPI and UPI is essential for deploying OpenShift clusters effectively.

For example, Juniper Contrail integrates with OpenShift to provide advanced networking features, regardless of whether the cluster is deployed using IPI or UPI.
