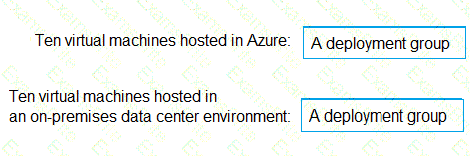

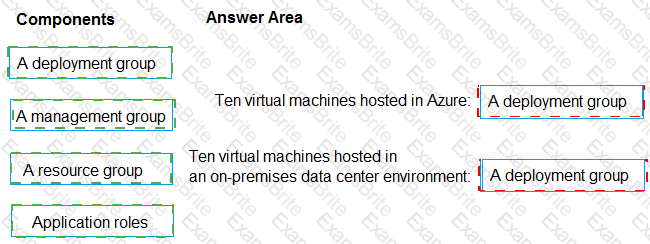

Box 1: A deployment group

When authoring an Azure Pipelines or TFS Release pipeline, you can specify the deployment targets for a job using a deployment group.

If the target machines are Azure VMs,you can quickly and easily prepare them by installing the Azure Pipelines Agent Azure VM extension on each of the VMs, or by using the Azure Resource Group Deployment task in your release pipeline to create a deployment group dynamically.

Box 2: A deployment group

Deployment Mode

Location specified in the Linked artifact variable

Step 1: Create a release pipeline

You need to create a new pipeline.

You can integrate Azure Resource Manager templates (ARM templates) with Azure Pipelines for continuous integration and continuous deployment (CI/CD).

Step 2: Add an Azure Resource Group Deployment task

Step3: Set the template parameters

Step 1: Create an AKS cluster

Step 2: a system-assigned managed identity

To create an RBAC binding, you first need to get the Azure AD Object ID.

Sign in to the Azure portal.

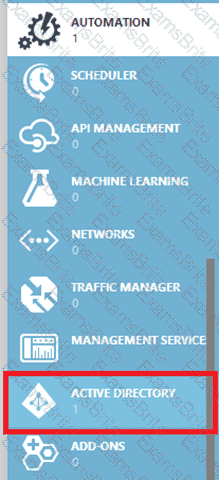

In the search field at the top of the page, enterAzure Active Directory.

Click Enter.

In the Manage menu, select Users.

In the name field, search for your account.

In the Name column, select the link to your account.

In the Identity section, copy the Object ID.

Step 3: a RBAC binding

Box 1: Basic

Assign Basic to users with a TFS CAL, with a Visual Studio Professional subscription, and to users for whom you are paying for Azure Boards & Repos in an organization.

Box 2: Stakeholder

Assign Stakeholders to users with no license or subscriptions who need access to a limited set of features.

Note:

You assign users or groups of users to oneof the following access levels:

Basic: provides access to most features

VS Enterprise: provides access to premium features

Stakeholders: provides partial access, can be assigned to unlimited users for free

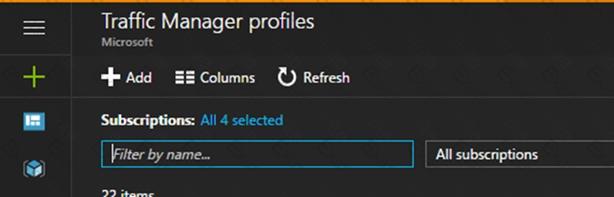

1.Go to the Azure portal, navigate to Traffic Manager profiles and click on the Add button to create a routing profile.

2. In the Create Traffic Manager profile, enter, or select these settings:

Name: az40011566895n1-tm

Routing method: Geographic

Resource group: RG1lod11566895

Note: Traffic Manager profiles can be configured to use the Geographic routing method so that users are directed to specific endpoints (Azure, External or Nested) based on which geographic location their DNS query originates from. This empowers Traffic Manager customers to enable scenarios where knowing a user’s geographic region and routing them based on that is important.

Task 8: Create a Service Hook to Integrate with Azure Storage (queue1)

Step 1: Verify the Storage Account and Queue

In the Azure portal (https://portal.azure.com ):

Go to Storage accounts.

Find the storage48901628 storage account.

In the left menu, click on Queues.

Ensure that a queue named queue1 exists.If not, create it by:

Clicking + Queue.

Enter Name: queue1.

Click OK.

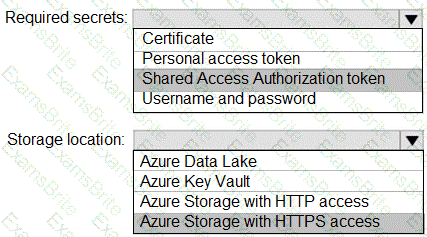

Step 2: Prepare the Storage Account’s Shared Access Signature (SAS)

Azure DevOps uses SAS tokens to send messages to a storage queue.

In the Azure portal, go to the storage48901628 storage account.

In the left menu, click Shared access signature.

Set the following:

Allowed services: Queue.

Allowed resource types: Object.

Allowed permissions: Add, Write.

Start and expiry date/time: Adjust as needed (e.g., 1 year).

Click Generate SAS and connection string.

Copy the Queue SAS URL (e.g., https://storage48901628.queue.core.windows.net/queue1?sv=...).

Step 3: Create the Service Hook in Azure DevOps

In your Azure DevOps Project (Project1):

In the bottom-left, click Project settings.

In the left menu, click Service hooks.

Click + Create subscription.

Step 4: Configure the Azure Storage Service Hook

In the Create a subscription wizard, choose Azure Storage Queues and click Next.

Choose the Trigger:

For example: Code pushed (or other events you want to send to the queue).

Click Next.

Configure the Action:

Queue endpoint URL: The Queue SAS URL you copied in Step 2 (including the queue1 endpoint and SAS token).

Example:

bash

Copy

https://storage48901628.queue.core.windows.net/queue1?sv=...

Step 5: Finalize and Test the Integration

Click Test to ensure Azure DevOps can send a message to the queue.

If the test succeeds, click Finish to create the service hook.

Step 6: Validate in the Azure Portal

In the Azure portal, go to storage48901628 > Queues > queue1.

You should see new messages appear in the queue whenever the configured Azure DevOps event (like push or PR) occurs.

Step 1: Access Azure DevOps

Open your browser and navigate to https://aex.dev.azure.com .

You will be prompted to sign in. Enter the following credentials:

Username: UserUser1-48901628@cxamUsers.com

Password: aFpJ2j-6M!

Click Next or Sign in to proceed.

Note: If you see any Microsoft security challenge (like phone or email verification), follow the instructions to complete it.

Step 2: Sign Up for Azure DevOps

After signing in, you’ll see a prompt to sign up for Azure DevOps.

Use the default settings provided by Azure DevOps for the sign-up process (region, default name, etc.).

Click Continue or Start free with Azure DevOps.

An Azure DevOps Organization is a container for your projects and resources. Default settings are usually fine for new organizations.

Step 3: Create the Organization

Enter a name for your organization. Azure DevOps will suggest a default name (like yourname or org-name), but you can change it if you prefer.

Verify the region is correct.

Click Continue to create the organization.

Your Azure DevOps organization is now created. It’s the top-level container for all your projects.

Step 4: Create a Private Project Named Project1

In your Azure DevOps portal, find the "New Project" button and click it.

Enter the following details:

Project Name: Project1

Description: (optional)

Visibility: Private

Click Create.

A private project means that only users you add can see or access it. This is important for security and privacy.

Step 5: Enforce Maximum File Size for Repositories

By default, Azure DevOps allows files up to 100 MB to be pushed. To ensure the maximum file size for repositories in Project1 is 2 MB, you can enforce this using a pipeline validation.

Azure DevOps does not provide a direct setting for file size limits. However, you can create a pipeline to validate file size on pull requests and block changes if a file exceeds 2 MB.

Here’s how to do it:

Option 1: Enforce with a pipeline validation for pull requests

In your Project1, create a new pipeline.

Use the following YAML for the pipeline:

yaml

Copy

trigger: none

pr:

branches:

include:

- "*"

jobs:

- job: CheckFileSize

pool:

vmImage: 'ubuntu-latest'

steps:

- script: |

echo "Checking file sizes in the PR..."

git fetch origin +refs/pull/*/merge:refs/remotes/origin/pr/*

large_files=$(git diff --cached --name-only | xargs -I{} du -b {} | awk '$1 > 2097152 {print $2}')

if [ -n "$large_files" ]; then

echo "Error: The following files exceed 2 MB:"

echo "$large_files"

exit 1

fi

displayName: 'Check file sizes in PR'

This pipeline will:

Run on pull requests only.

Check the size of all files in the pull request.

If any file is larger than 2 MB (2,097,152 bytes), it will fail the pipeline and block the PR.

Option 2: Local Git configuration (for each developer)

On each developer’s machine, run this command in their local repository:

bash

Copy

git config --local core.bigFileThreshold 2M

This limits the file threshold for checkout, but does not prevent large files from being pushed. Using the pipeline validation (Option 1) is more secure for team environments.

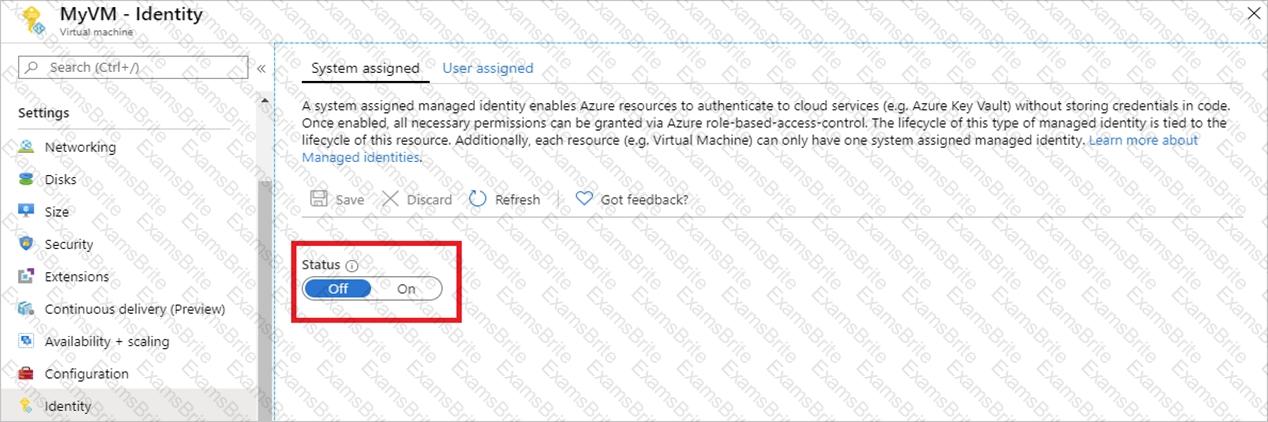

You can usea system-assigned managed identity for a Windows virtual machine (VM) to access Azure Key Vault.

Sign in to Azure portal

Locate virtual machine VM1.

Select Identity

Enable the system-assigned identity for VM1 by setting the Status to On.

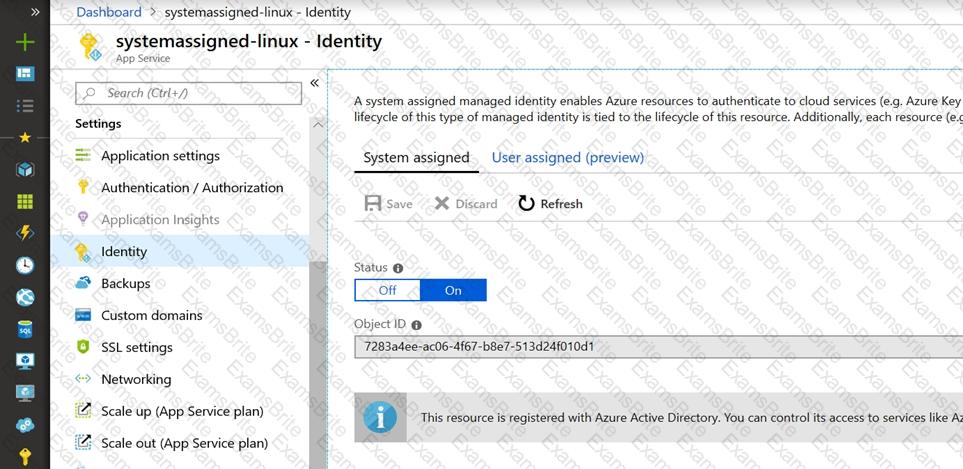

Note:Enabling a system-assigned managed identity is a one-click experience. You can either enable it during the creation of a VM or in the properties of an existing VM.

To ensure that your Azure Web App namedaz400-38443478-maincan retrieve secrets from an Azure Key Vault namedaz400-3844J478-kv1using a system managed identity with the principle of least privilege, follow these detailed steps:

Enable a System Managed Identity for the Azure Web App:

Navigate to the Azure Portal.

Go to the Azure Web Appaz400-38443478-main.

SelectIdentityunder theSettingssection.

In theSystem assignedtab, switch theStatustoOn.

ClickSaveto apply the changes.

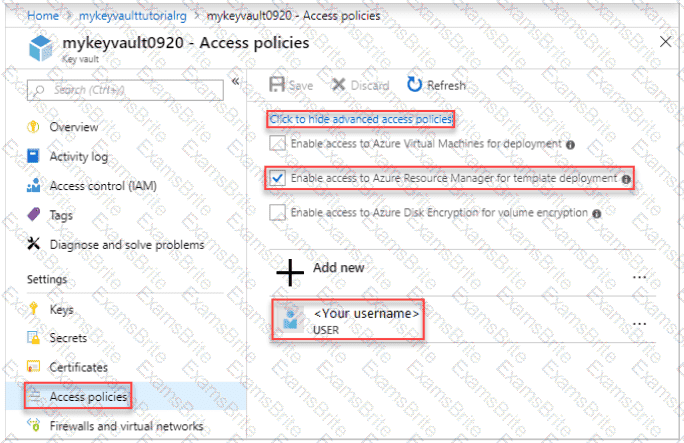

Grant the Web App Access to the Key Vault:

Go to the Azure Key Vaultaz400-3844J478-kv1.

SelectAccess policiesunder theSettingssection.

Click onAdd Access Policy.

ChooseSecret permissionsand selectGetandList. This grants the app the ability to read secrets, adhering to the principle of least privilege.

Click onSelect principal, search for your Web App nameaz400-38443478-main, and select it.

ClickAddto add the policy.

Don’t forget to clickSaveto save the access policy changes.

Retrieve Secrets in the Web App Code:

In your Web App’s code, use the Azure SDK to retrieve the secrets.

For example, in a .NET application,you can use theAzure.IdentityandAzure.Security.KeyVault.Secretsnamespaces.

Utilize theDefaultAzureCredentialclass which will automatically use the system managed identity when running on Azure.

using Azure.Identity;

usingAzure.Security.KeyVault.Secrets;

var client = new SecretClient(new Uri("https://az400-3844J478-kv1.vault.azure.net/ "), new DefaultAzureCredential());

KeyVaultSecret secret = await client.GetSecretAsync("my-secret-name");

string secretValue =secret.Value;

Replace"my-secret-name"with the actual name of the secret you want to retrieve.

By following these steps, your Azure Web App will be able to securely retrieve secrets from the Azure Key Vault using a system managed identity, without needingto store credentials in the code, and adhering to the principle of least privilege. Remember to replace the placeholder names with the actual names of your Web App and Key Vault.

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources, type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create thestorage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

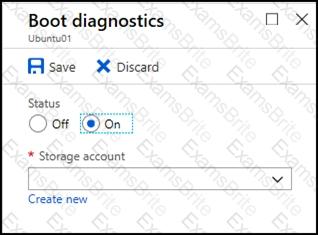

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

Sign in to the Azure portal, and then select the virtual machine VM1.

In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

In Boot diagnostics settings, change the statusto On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

Save the change.

You must restart the virtual machine for the change to take effect.

To store signed images in an Azure Container Registry (ACR) instance and support your planned images while minimizing costs, you need to modify the SKU of your ACR instance to one that supports content trust and image signing. Here’s how you can do it:

Determine the Appropriate SKU:

Content trust and image signing are features of thePremiumservice tier of Azure ContainerRegistry1.

If cost minimization is a priority, ensure that the Premium tier is necessary for your use case. If you require content trust, the Premium tier is the appropriate choice.

Modify the SKU of the ACR Instance:

Navigate to the Azure Portal.

Go to your ACR instanceaz40038443478act1.

SelectUpdatefrom the overview pane.

Choose thePremiumSKU from the SKU drop-down menu2.

Review the changes and pricing, then save the configuration.

By upgrading to the Premium SKU, you’ll be able to store signed images in your ACR instance. Remember to monitor your usage and costs to ensure they align with your budget and requirements.

Step 1: Navigate to Personal Access Tokens

Sign in to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Access User Settings:

Click on your profile picture in the top right corner.

Select User settings.

Open Personal Access Tokens:

In the user settings menu, select Personalaccess tokens.

Step 2: Create a New Personal Access Token

Create a New Token:

Click on + New Token.

Configure the Token:

Name: Enter Token1.

Organization: Select the organization where you want to use the token.

Expiration: Set the expiration to 60 days.

Set Scopes:

Code: Select Read, Write, & Manage.

Build: Select Read & Execute.

Release: Select Read.

Create the Token:

Click on Create.

Step 3: Save the Token

Copy the Token:

Once the token is created, copy it immediately as it will not be displayed again.

Store the token in a secure location.

By following these steps, you will have successfully created a personal access token named Token1 with the specified capabilities and a 60-day expiration

Task 10: Create a Variable Group in Azure DevOps

Step 1: Navigate to Library

In your Azure DevOps Project (Project1), click on the Pipelines section in the left menu.

In the Pipelines submenu, click on Library.

Step 2: Create a New Variable Group

Click on the + Variable group button.

Enter the Name:

nginx

Copy

varGroup1

Step 3: Add Variables

Add the first variable:

Click Add.

In the Name field, enter:

nginx

Copy

username

In the Value field, enter:

Copy

Userl-48901628

Add the second variable:

Click Add again.

In the Name field, enter:

nginx

Copy

password

In the Value field, enter:

Copy

aFpJ2j+6M!

Check the box Keep this value secret.

Step 4: Save the Variable Group

Click Save at the top to save the variable group.

Task 11: Create an Artifact Feed with Specific Retention Policies

Step 1: Navigate to Artifacts

In your Azure DevOps Project (Project1), click on the Artifacts section in the left menu.

Step 2: Create a New Feed

Click on the + New feed button.

In the Name field, enter:

nginx

Copy

artifact_feed

Choose the visibility of the feed:

Project scoped (only accessible to Project1).

Or Organization scoped (accessible across your Azure DevOps organization).

Leave other settings at default unless you have specific permissions or upstream sources.

Click Create.

This creates a new feed named artifact_feed.

Step 3: Configure Retention Policies

In the Artifacts section, click on the feed named artifact_feed to open its details page.

In the top-right corner, click on the three dots (...) and select Feed settings.

Step 4: Set the Maximum Number of Versions to Retain

In the Feed settings page, find the Retention policies section.

Set Maximum number of versions per package to:

Copy

10

Click Save.

This ensures that only the latest 10 versions of any package are retained in the feed.

Step 5: Set the Downloaded Package Retention Period

In the Feed settings page, under Retention policies, find Downloaded package retention.

Set Number of days to retain downloaded packages to:

Copy

90

Click Save.

This ensures that downloaded packages will be retained in the cache for 90 days before deletion.

Add a slot

1. In the Azure portal, search for and select App Services and select your app az400-11566895-main.

2. In the left pane, select Deployment slots > Add Slot.

3. In the Add a slot dialog box, give the slot a name, and select whether to clone an app configuration from another deployment slot. Select Add to continue.

4. After the slot is added, select Close to close the dialog box. The new slot is now shown on the Deployment slots page.

Set up Advanced Threat Protection in the Azure portal

1. Sign into the Azure portal.

2.Navigate to the configuration page of the server you want to protect. In the security settings, select Advanced Data Security.

3. On the Advanced Data Security configuration page:

4. Enable Advanced Data Security on the server.

Note: Advanced Threat Protection for Azure SQL Database detects anomalous activities indicating unusual and potentially harmful attempts to access or exploit databases. Advanced Threat Protection can identify Potential SQL injection, Access from unusual location or data center,Access from unfamiliar principal or potentially harmful application, and Brute force SQL credentials

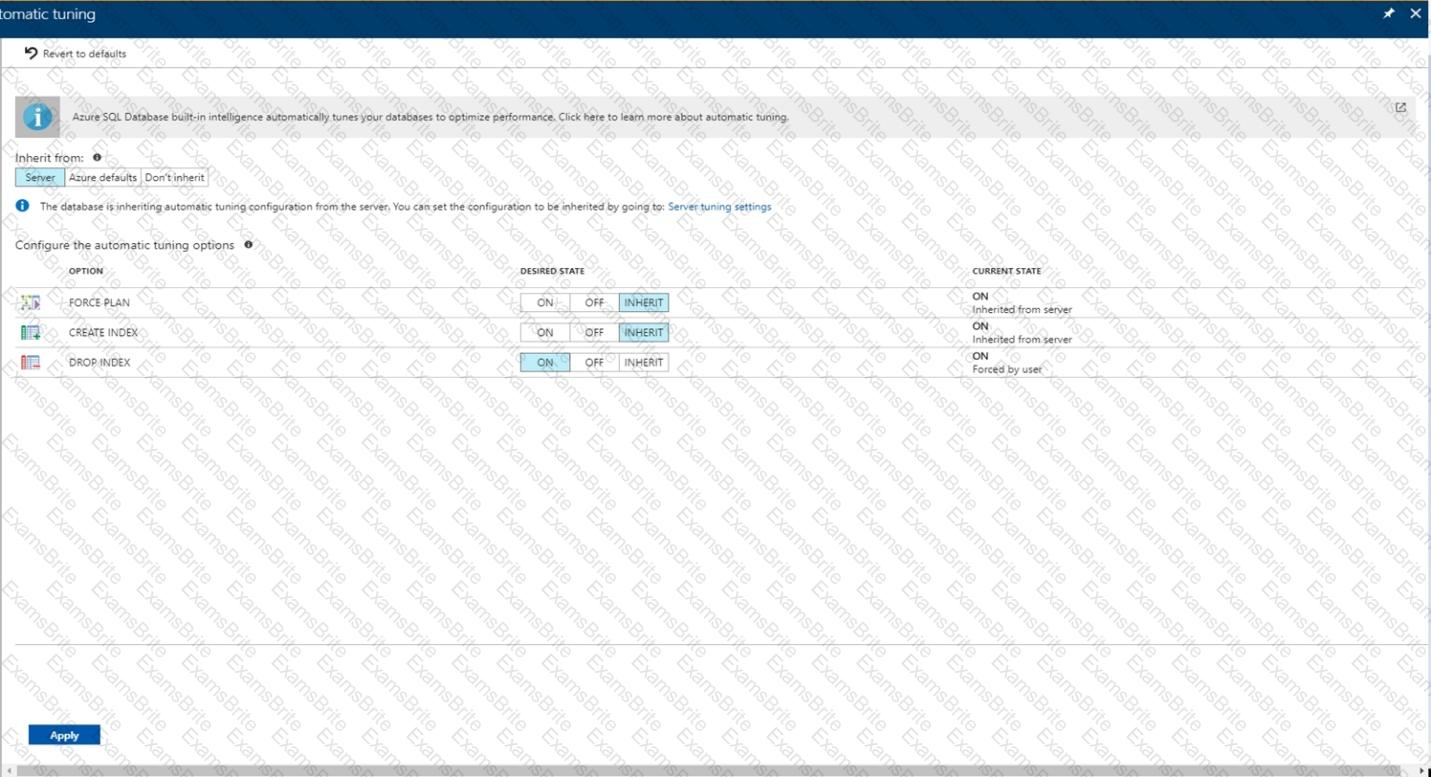

1. To enable automatictuning on a single database, navigate to the database in the Azure portal and select Automatic tuning.

2. Select the automatic tuning options you want to enable and select Apply.

Note: Individual automatic tuning settings can be separately configuredfor each database. You can manually configure an individual automatic tuning option, or specify that an option inherits its settings from the server.

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Initialize theMain Branch:

Go to Repos > Files.

If the main branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch1.

Step 2: Create a New Branch for the Pipeline

Navigate to Branches:

Go to Repos > Branches.

Click on New branch.

Create the Branch:

Enter azure-pipelines as the branch name.

Select main as the base branch.

Click Create2.

Step 3: Create a New Azure Pipelines YAML Pipeline

Navigate to Pipelines:

Go to Pipelines > New pipeline.

Select the Repository:

Choose Azure Repos Git and select the relevant repository.

Configure the Pipeline:

Select Starter pipeline.

Replace the default YAML with the ASP.NET template. You can find the ASP.NET template in the Azure Pipelines documentation oruse the following example:

trigger:

- main

pool:

vmImage: 'windows-latest'

variables:

buildConfiguration: 'Release'

steps:

- task: UseDotNet@2

inputs:

packageType: 'sdk'

version: '5.x'

installationPath: $(Agent.ToolsDirectory)/dotnet

- script: |

dotnet build --configuration $(buildConfiguration)

displayName: 'Build project'

- script: |

dotnet test --no-build --configuration $(buildConfiguration)

displayName: 'Run tests'

Save the Pipeline:

Click on Save and enter azure-pipelines as the branch name.

Click on Save and run to save the pipeline to the new branch named azure-pipelines3.

By following these steps, you will have successfully initialized the main branch, created a new branch named azure-pipelines, and set up a new Azure Pipelines YAML pipeline using the ASP.NET template

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Initialize the Main Branch:

Goto Repos > Files.

If the main branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch1.

Step 2: Enable Squash Merge for the Main Branch

Navigate to Branch Policies:

Go to Repos > Branches.

Find the main branch and click on the … (ellipsis) next to it.

Select Branch policies.

Enable Squash Merge:

Under Policies, scroll down to the Merge strategy section.

Select Squash merge as the required mergestrategy2.

Save Changes:

Click on Save changes to apply the policies.

Step 3: Verify the Squash Merge Policy

Create a Pull Request:

Make achange in a branch and create a pull request to merge it into the main branch.

Complete the Pull Request:

Ensure that the pull request uses thesquash merge strategy by selecting Squash commit under the Merge type in the Complete pull request dialog

1. Open Microsoft Azure Portal, and select the Azure Container Registry instance named az4009940427acr1.

2. Under Policies, select Content Trust > Enabled > Save.

To prepare a Network Security Group (NSG) namedaz400-38443478-nsg1for hosting an Azure DevOps pipeline agent, while allowing only the required outbound port for Azure DevOps and denying all other inbound and outbound access to the Internet, follow these steps:

Create the NSG:

Navigate to the Azure Portal.

Go toNetwork Security Groupsand click on+ Create.

Fill in the details, including the nameaz400-38443478-nsg1, and create the NSG.

ConfigureOutbound Security Rules:

Once the NSG is created, go to its settings.

Navigate toOutbound security rules.

Click on+ Addto create a new rule.

Set theDestination port rangesto443, which is the required port for Azure DevOps12.

Set theProtocoltoTCP.

Set theActiontoAllow.

Assign aPrioritynumber (e.g.,100) that does not conflict with existing rules.

Provide a meaningfulNamefor the rule (e.g.,AllowAzureDevOps).

Configure Default Rules to Deny All Other Traffic:

In the sameOutbound security rulessection, edit the default rule to deny alltraffic.

Change theActiontoDenyfor the rule with the lowest priority (highest number).

Ensure that this rule applies to all protocols, source and destination IP ranges, and port ranges.

Associate the NSG with the Appropriate Resource:

Associate the NSGwith the subnet or network interface of the virtual machine or resource where the Azure DevOps pipeline agent will be hosted.

By following these steps, you will ensure that the Azure DevOps pipeline agent can communicate with Azure DevOps services over the required port while blocking all other inbound and outbound Internet access, adhering to the principle of least privilege and security best practices.

1. Open Microsoft Azure Portal

2. Log into your Azure account, select App Services in the Azure portal left navigation, and then select configureaz400-9940427-func1.

3. On the app page, select Deployment Center in the left menu.

4. On the Build provider page, select Azure Pipelines (Preview), and then select Continue.

5. On the Configure page, in the Code section:

For GitHub, drop down and select the Organization, Repository, and Branch you want to deploy continuously.

6. Select Continue.

7. On the Test page, choose whether to enable load tests, and then select Continue.

8. Depending on your App Service plan pricing tier, you may see a Deployto staging page. Choose whether to enable deployment slots, and then select Continue.

9. After you configure the build provider, review the settings on the Summary page, and then select Finish.

Step 1: Navigate to the Library

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access the Library:

In the left-hand menu, select Pipelines > Library.

Step 2: Create a Variable Group

Create a New Variable Group:

On the Library page, click on + Variable group.

Configure the Variable Group:

Name: Enter varGroup1.

Description: Optionally, add a description for thevariable group.

Add Variables:

Click on + Add to add a new variable.

Variable Name: Enter serverName.

Value: Enter server1.

Click OK.

Click on + Add again to add another variable.

Variable Name: Enter dbName.

Value: Enter db1.

Click OK.

Save the Variable Group:

Click on Save to save the variable group.

By following these steps, you will have successfully created a variable groupnamed varGroup1 containing the specified variables

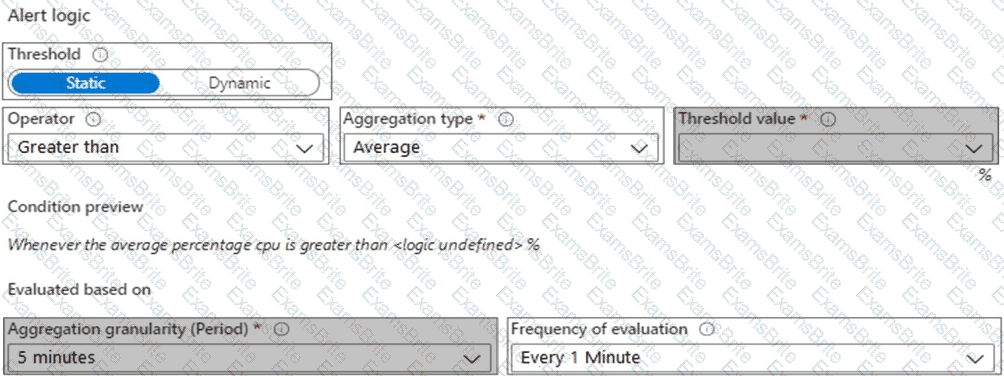

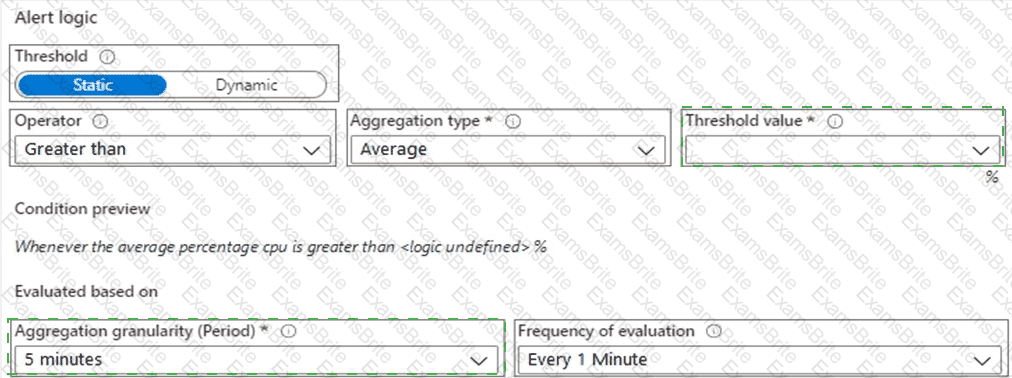

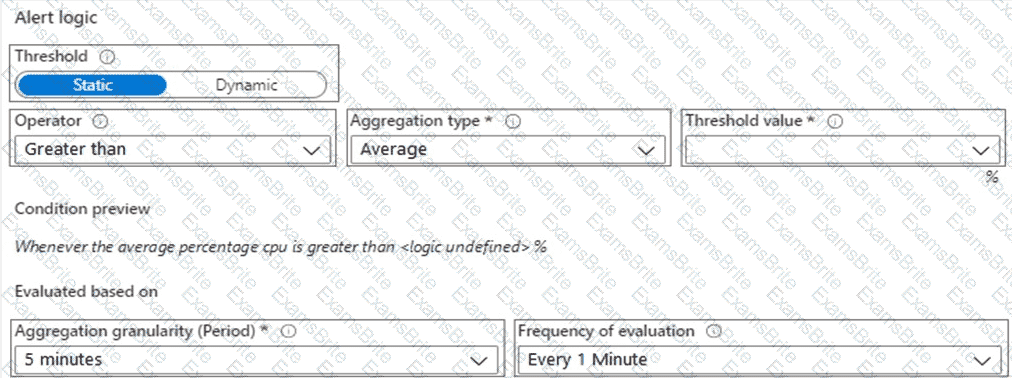

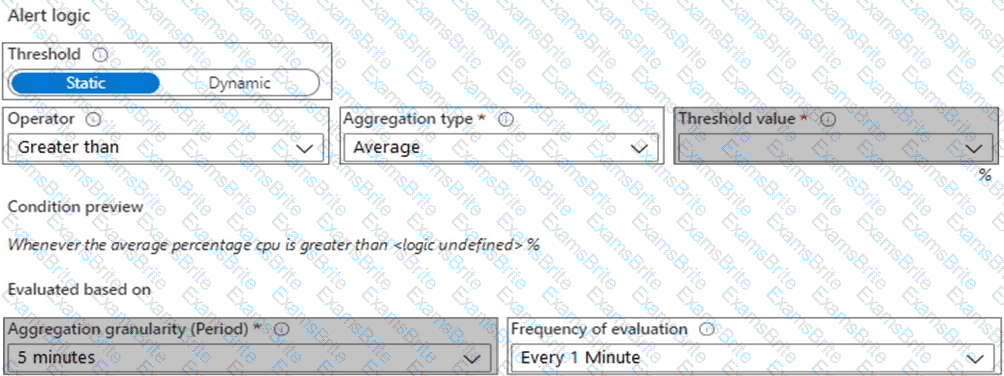

1. Open Microsoft Azure Portal

2. Log intoyour Azure account and go to App Service and look under Monitoring then you will see Alert.

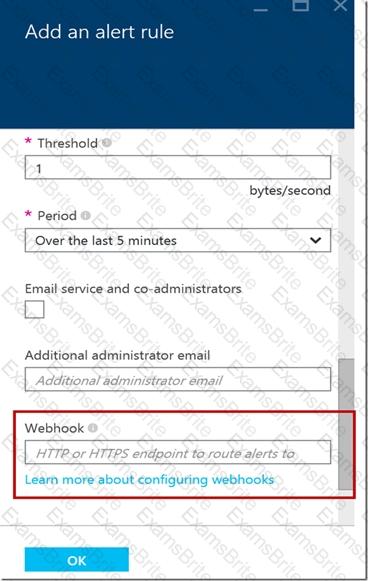

3. Select Add an alert rule

4. Configure the alert rule as per below and click Ok.

Source: Alert on Metrics

Resource Group: az400-9940427-main

Resource: az400-9940427-main

Threshold: 5

Period: Over the last 5 minutes

Webhook: https://contoso.com/notify

Task 7: Create a Pipeline to Deploy a Docker Image in a New Branch

Step 1: Create a New Branch

In your Azure DevOps Project (Project1), navigate to Repos.

In the left menu, click on Branches.

Click New branch.

Enter:

Branch name: azure-pipelines

Based on: main (or your default branch)

Click Create.

This creates a new branch named azure-pipelines.

Step 2: Switch to the New Branch

In Repos, click on Files.

In the top-left branch selector, choose azure-pipelines.

Step 3: Use the Predefined Docker Pipeline Template

Azure Pipelines has predefined YAML templates for common tasks, including Docker.

Here’s how to add it:

In the azure-pipelines branch, click New file.

Name the file: azure-pipelines.yml.

Click the Show templates button in the YAML editor (if available).

Search for the Docker template in the list of predefined templates.

Select the Docker template to auto-populate the YAML file.

If the editor doesn’t show the template picker, you can manually add the following basic Docker pipeline template:

yaml

Copy

# Predefined Docker pipeline template

trigger:

- main

resources:

- repo: self

variables:

imageName: 'mydockerimage'

stages:

- stage: Build

displayName: Build and push stage

jobs:

- job: Build

pool:

vmImage: 'ubuntu-latest'

steps:

- task: Docker@2

displayName: Build and push an image to container registry

inputs:

command: buildAndPush

repository: $(imageName)

dockerfile: '**/Dockerfile'

containerRegistry: ''

tags: |

latest

Replace with your actual Azure Container Registry (ACR) or DockerHub service connection name.

Step 4: Commit the Pipeline to the New Branch

In the YAML editor, review and adjust if needed (like setting the correct container registry service connection).

In the bottom commit message box:

Message: e.g., Add Docker deployment pipeline

Ensure the branch is set to azure-pipelines.

Click Commit (not commit to main).

This creates the pipeline YAML file in the new azure-pipelines branch.

Step 5: Create the Pipeline in Azure DevOps

In the left menu, click Pipelines.

Click New pipeline.

Choose:

Azure Repos Git.

Select your repo.

Select Existing Azure Pipelines YAML file.

In the branch selector, choose the azure-pipelines branch.

Select the YAML file path (azure-pipelines.yml).

Click Continue and then Run to validate the pipeline.

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Initialize the Main Branch:

Go to Repos > Files.

If themain branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch.

Step 2: Implement an Approval Process for the Main Branch

Navigate to Branch Policies:

Go to Repos > Branches.

Findthe main branch and click on the … (ellipsis) next to it.

Select Branch policies.

Enable Required Reviewers:

Under Policies, enable Minimum number of reviewers.

Set the minimum number of reviewers to 2 to enforce the four-eyes principle.

Add RequiredReviewers:

Add the users who should review the changes. Ensure that at least one approval is required on every iteration.

Enable Reset Code Reviewer Votes:

Enable the Reset code reviewer votes when there are new changes option to ensure that any new changes require re-approval.

Save Changes:

Click on Save changes to apply the policies.

Step 3: Verify the Approval Process

Create a Pull Request:

Make a change in a branch and create a pull request to merge it into the main branch.

Review and Approve:

Ensurethat the pull request requires at least two reviewers to approve it before it can be merged.

By following these steps, you will have successfully initialized themain branch and implemented an approval process that adheres to the four-eyes principle, ensuring that every iteration has at least one approval

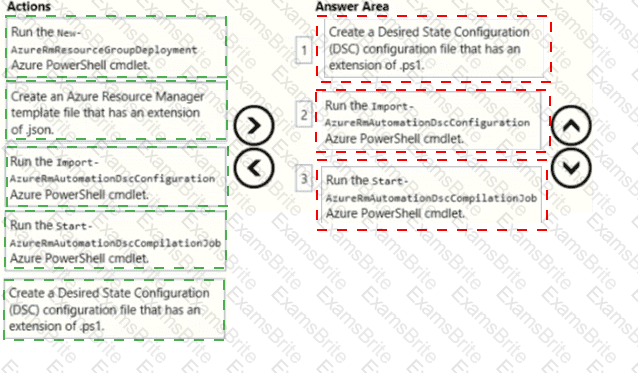

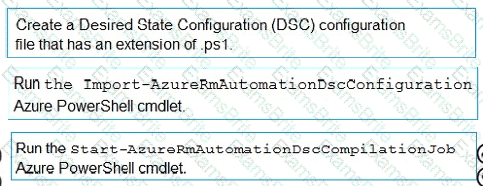

Azure Automation now ships with the Azure PowerShell module of version 0.8.6, which introduced the ability to non-interactively authenticate to Azure using OrgId (Azure Active Directory user) credential-based authentication. Using the steps below, you can set up Azure Automation to talk to Azure using this authentication type.

Step 1: Find the Azure Active Directory associated with the Azure subscription to manage:

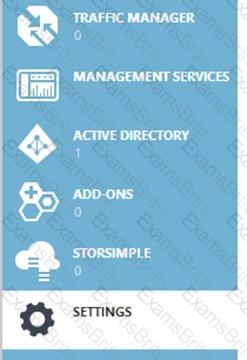

1. Log in to the Azure portal as the service administrator for the Azure subscription you want to manage using Azure Automation. You can find this user by logging in to the Azure portal as any user with access to this Azure subscription, then clicking Settings, then Administrators.

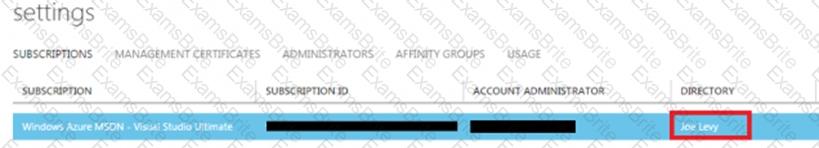

2. Note the name of the directory associated with the Azure subscription you want to manage. You can find this directory by clicking Settings, then Subscriptions.

Step 2: Create an Azure Active Directory user in the directory associated with the Azure subscription to manage:

You can skip this step if you already have an Azure Active Directory user in this directory. and plan to use this OrgId to manage Azure.

1. In the Azure portal click on Active Directory service.

2. Click the directory name that is associated with this Azure subscription.

3. Click on the Users tab and then click the Add User button.

4. For type of user, select “New user in yourorganization.” Enter a username for the user to create.

5. Fill out the user’s profile. For role, pick “User.” Don’t enable multi-factor authentication. Multi-factor accounts cannot be used with Azure Automation.

6. Click Create.

7. Jot down the full username (including part after @ symbol) and temporary password.

Step 3: Allow this Azure Active Directory user to manage this Azure subscription.

1. Click on Settings (bottom Azure tab under StorSimple)

2. Click Administrators

3. Click the Add button. Type the full user name (including part after @ symbol) of the Azure Active Directory user you want to set up to manage Azure. For subscriptions, choose the Azure subscriptions you want this user to be able to manage. Click the check mark.

Step 4: ConfigureAzure Automation to use this Azure Active Directory user to manage this Azure subscription

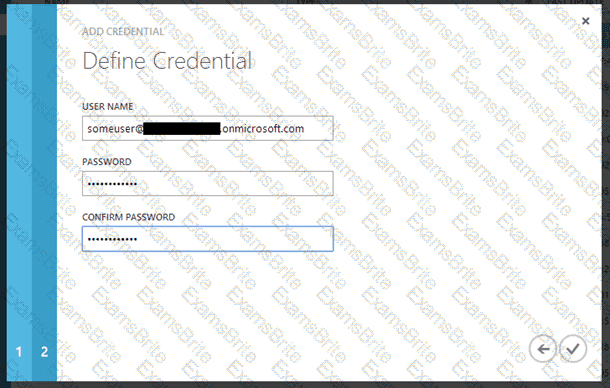

Create an Azure Automation credential asset containing the username and password of the Azure Active Directory user that you have just created. You can create a credential asset in Azure Automation by clicking into an Automation Account and then clicking the Assets tab, then the Add Setting button.

Note: Once you have set up the Azure Active Directory credential in Azure and Azure Automation, you can now manage Azure from Azure Automation runbooks using this credential.

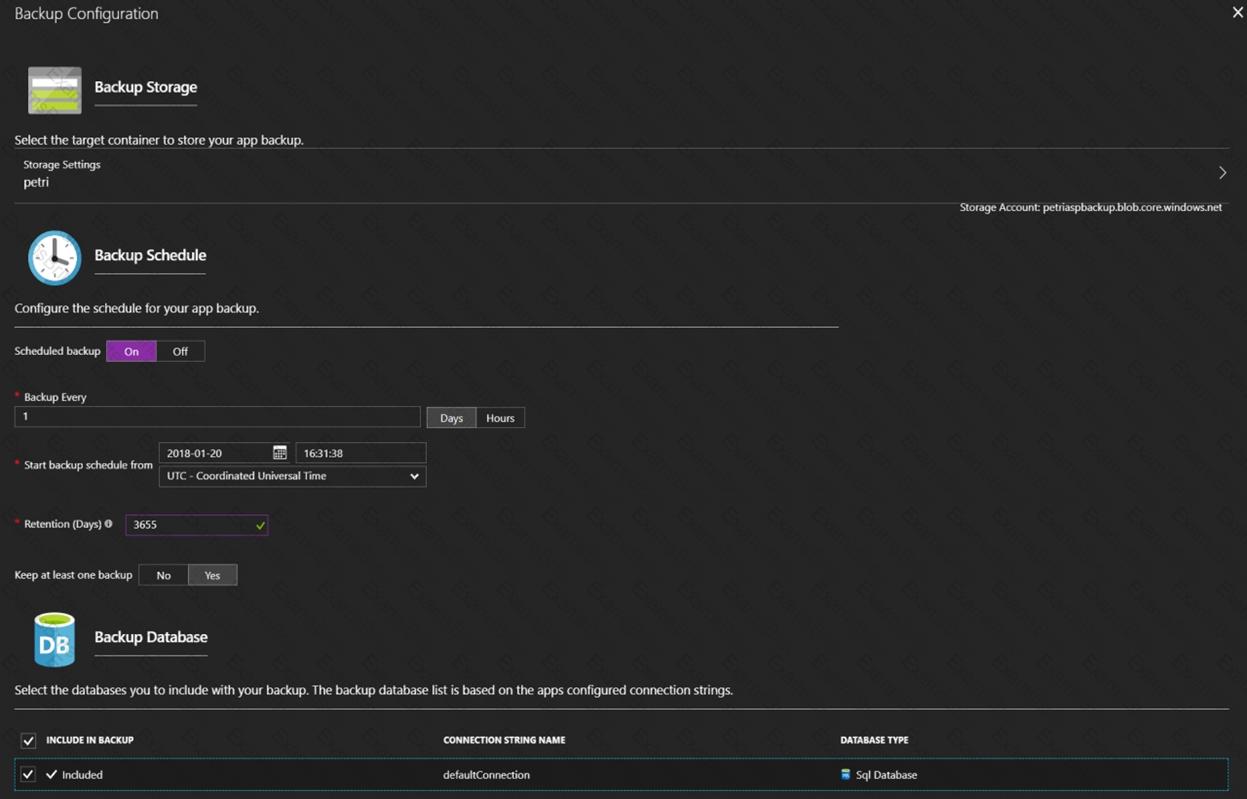

With the storage account ready, you can configure backs up in the web app or App Service.

Open the App Serviceaz400-11566895-main, which you want to protect, in the Azure Portal and browse to Settings > Backups. Click Configure and a Backup Configuration blade should appear.

Select the storage account.

Click + to create a private container. You could name this container after the web app or App Service.

Select the container.

If you want to schedule backups, then set Scheduled Backup to On and configure a schedule: every five hours

Select your retention. Note that 0 means never delete backups.

Decide if at least onebackup should always be retained.

Choose if any connected databases should be included in the web app backup.

Click Save to finalize the backup configuration.

Step 1: Navigate to the Project1 Repository

In your browser, go to your Azure DevOps organization:https://dev.azure.com/{YourOrganizationName}

In the left menu, select the project named Project1.

In the left menu under Repos, click on Files.

Step 2: Initialize the Main Branch (if it doesn’t exist)

If the main branch doesn’t exist (because the repo is empty):

In the Repos > Files view, you’ll see a message: “This repository is empty.”

Click on the Initialize button.

Choose the default branch name as main and create a README file (or any file to initialize).

Click Initialize.

This creates the main branch in your repository.

Step 3: Set Up Branch Protection for the Main Branch

Branch protection ensures that all changes go through a pull request (PR), and that PRs are linked to work items (for traceability).

In the Repos view, click on Branches in the left menu.

Locate the main branch in the list.

Click on the three dots (...) next to main and select Branch policies.

Step 4: Configure Branch Policies for main

In the Branch policies for the main branch:

Require a minimum number of reviewers:

Enable this option and set to 1 or more as per your team’s standards.

Check for linked work items:

Enable the Check for linked work items option.

This ensures that every PR has at least one linked work item.

Require a linked work item:

This enforces the traceability requirement you mentioned.

Optionally, you can also:

Enable build validation if you have a pipeline to validate builds.

Enforce merge strategies (like squash merge).

Click Save changes at the bottom.

Step 1: Log in to the Azure Portal

Go to https://portal.azure.com .

Log in with your Azure account.

Step 2: Create an Azure App Configuration Instance

In the search bar at the top, type “App Configuration” and select App Configuration from the search results.

Click + Create.

Fill in the required fields:

Subscription: Your Azure subscription.

Resource Group: Create a new one or select an existing one.

Name: Provide a globally unique name (for example, myappconfig-instance).

Location: Choose a region close to your application.

Click Review + Create, then Create.

The instance will take a few seconds to deploy.

Step 3: Access the App Configuration Instance

Once the deployment is complete, click Go to resource.

You are now in the App Configuration resource.

Step 4: Enable Feature Management

In the left menu, click on Feature Manager (Preview).

Click + Add to create a new feature flag.

Step 5: Create the Feature Flag

Provide the following details:

Feature flag name: feature1

Label: (optional)

Description: (optional)

State: Set to Enabled.

Click on the Add filters link if you want to add targeting filters (optional).

Click Save to create the feature flag.

Step 6: Set the Expiration Date for the Feature Flag

In the Feature Manager list, find the newly created feature1 flag.

Click on the three dots (context menu) next to feature1 and select Edit.

In the Edit feature pane, look for the Expiration date setting.If there is no direct UI for expiration date, you can store it as a custom key-value (metadata).

Here’s how to store expiration as metadata:

In the App Configuration left menu, click on Configuration Explorer.

Locate the key: .appconfig.featureflag/feature1.

Click on the key to edit.

Add a new label or add a custom key in the Content type or tags section to store expiration metadata:

Key: expiration

Value: yyyy-MM-dd (set to today + 7 days)

For example, if today is June 4, 2025, set the expiration as 2025-06-11.

Task 12: Configure Iterations in Project1 for Azure Boards

Step 1: Navigate to Project Settings

In your Azure DevOps Project (Project1), click on the Project settings gear icon in the lower-left corner.

Step 2: Manage Project Iterations (Sprints)

In the Boards section of the Project settings, click Project configuration.

In the left menu, click on Iterations.

Step 3: Add Iterations

Click on the + New child link to add a new iteration under the root node (e.g., Project1).

Enter the following details:

Name: Sprint 1

Leave the start and end dates empty (or set them as needed for your planning).

Click Save and close.

Repeat the process:

Click + New child again.

Name: Sprint 2

Leave the start and end dates empty.

Click Save and close.

Finally, create Sprint 3 with specific dates:

Click + New child.

Name: Sprint 3

Start date: January 1 of next year (e.g., 2026-01-01).

End date: January 31 of next year (e.g., 2026-01-31).

Click Save and close.

Step 4: Assign Iterations to Work Items

With these iterations created, you can now assign them to work items (e.g., tasks, bugs, features) using Azure Boards.

In Boards, click on Work items.

Open any work item.

In the Iteration Path field, select one of your newly created iterations (Sprint 1, Sprint 2, or Sprint 3).

This ensures that work items can be tracked under the appropriate sprint.

1. Open Microsoft Azure Portal and Log into your Azure account.

2. Select network security group (NSG) named az400-9940427-nsg1

3. Select Settings, Outbound security rules, and click Add

4. Click Advanced

5. Change the following settings:

Destination Port range: 8080

Protocol. TCP

Action: Allow

Note: Bydefault, Azure DevOps Server uses TCP Port 8080.

1. Sign in to the portal,

2. Choose template Deploy-lod9940427

3. Select Edit template, andthen paste your JSON template code into the code window.

4. Change the ASddressPrefixes to 10.0.0.0/24 in order to support only 256 total IP addresses.

addressSpace":{"addressPrefixes": ["10.0.0.0/24"]},

5. Change the firstSubnet addressprefix to 10.0.0.0/26 to support only 64 total IP addresses.

"subnets":[

{

"name":"firstSubnet",

"properties":{

"addressPrefix":"10.0.0.0/24"

}

6. Select Save.

7. Select Editparameters, provide values for the parameters that are shown, and then select OK.

8 Select Subscription. Choose the subscription you want to use, and then select OK.

9. Select Resource group. Choose an existing resource group or create a new one, and then select OK.

10. Select Create. A new tile on the dashboard tracks the progress of your template deployment.

Sign in to the Azure portal.

Navigate to the container registry az40010480345acr1.

Under Services, select Webhooks.

Select the existing webhook https://contoso.com/statushook, and double-click on itto get its properties.

For Trigger actions select image push

Example web hook:

Step 1: Understand the Requirements

You want to ensure that audit events (such as user actions, project changes, security settings, etc.) from your Azure DevOps organization are logged and available in a Log Analytics workspace in Azure.

This enables centralized monitoring and security compliance.

Step 2: Prerequisites

Before starting, make sure:

You have an Azure subscription.

You have permission to create or use a Log Analytics workspace in the Azure portal.

You are a Project Collection Administrator or Organization Owner in Azure DevOps.

Step 3: Create or Identify a Log Analytics Workspace

Go to the Azure portal.

In the search bar, type Log Analytics workspaces and click the service.

Click + Create to create a new workspace (or select an existing workspace if you have one).

Provide the following:

Subscription: your Azure subscription.

Resource Group: create a new or use an existing one.

Name: a unique name for the workspace (like DevOpsAuditWorkspace).

Region: choose the same region as your Azure DevOps organization if possible.

Click Review + Create, then Create to deploy the workspace.

Step 4: Configure Azure DevOps to Stream Audit Logs

Azure DevOps can stream audit logs to your Log Analytics workspace using the Azure DevOps Audit Stream feature.

In your browser, go to your Azure DevOps organization:https://dev.azure.com/{YourOrganizationName}

In the bottom-left corner, click on the Organization Settings gear icon.

In the left menu, click on Audit logs.

In the top-right, click on Audit streams.

Click on + Add stream to create a new stream.

In the New audit stream pane, do the following:

Stream type: select Azure Monitor Logs (Log Analytics).

Azure subscription: select the subscription containing your Log Analytics workspace.

Resource group: select the resource group.

Log Analytics workspace: select the workspace created in Step 3.

Click Save.

Step 5: Validate the Audit Stream Connection

Go back to the Audit streams page in Azure DevOps to confirm the stream shows as Connected.

To validate logs:

In the Azure portal, go to your Log Analytics workspace.

In the left menu, click on Logs.

Use the query:

kusto

Copy

AzureDevOpsAuditing

| sort by TimeGenerated desc

You should see audit events from your Azure DevOps organization appear in the results.

Step 1: Create an instance of Azure Application Insights

1. Open Microsoft Azure Portal

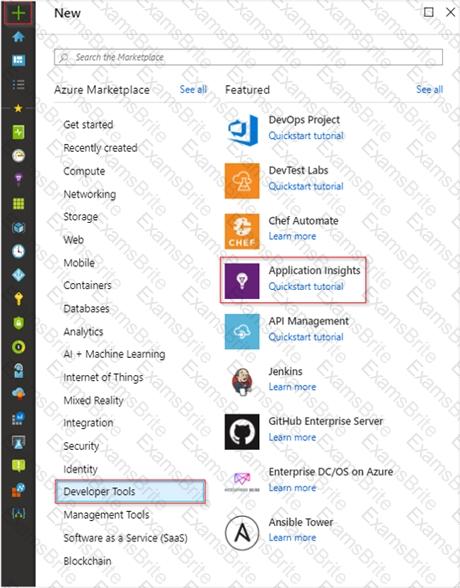

2. Log into your Azure account, Select Create a resource > Developer tools > Application Insights.

3. Enter the followingsettings, and then select Review + create.

Name: az400-9940427-main

Step 2: Configure App Insights SDK

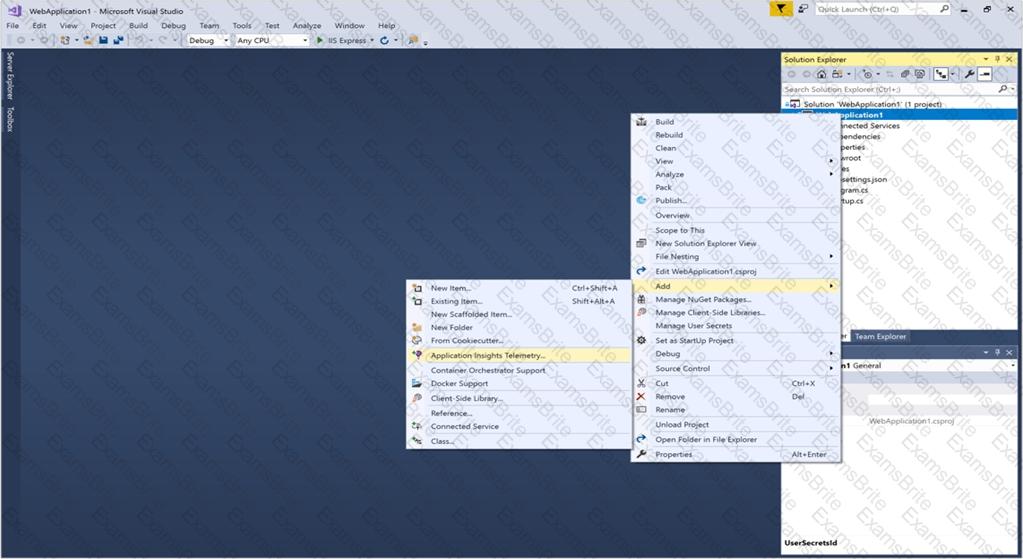

1. Open your ASP.NET Core Web App project in Visual Studio > Right-click on the AppName in the Solution Explorer > Select Add > Application InsightsTelemetry.

2. Click the Get Started button

3. Select your account and subscription > Select the Existing resource you created in the Azure portal > Click Register.

To ensure that your Azure Web App namedaz400-38443478-mainsupports rolling upgrades and only 10 percent of users connect to the updated version of the app, you can use deployment slots with the followingsteps:

Create a Deployment Slot:

Navigate to the Azure Portal.

Go to your Web Appaz400-38443478-main.

SelectDeployment slotsin the menu.

Click onAdd Slot.

Name the slot (e.g.,staging) and if needed, clone settings from the production slot.

Configure the Traffic Percentage:

In the Deployment Slots menu, you will see a column forTraffic %.

Set the traffic percentage to10%for thestagingslot1.

This will route only 10% of the traffic to the updated version of the app in thestagingslot.

Deploy the Updated App to the Staging Slot:

Deploy yourupdated application to thestagingslot.

Test the application in thestagingslot to ensure it’s working as expected.

Complete the Rolling Upgrade:

Once you’re satisfied with the performance and stability of the app in thestagingslot, you can graduallyincrease the percentage of traffic until you’re ready to swap with the production slot.

To swap slots, go to theDeployment slotsmenu and click onSwapwith the production slot.

By using deployment slots, you can achieve rolling upgrades with minimal administrative effort, as it allows you to test the new version on a subset of users before fully releasing it. Remember to adjust the traffic percentage and monitor the application’s performance throughout the process.

Step 1: Create a YAML file.

If your AKS cluster is RBAC-enabled, you must create a service account and role binding for use with Tiller. To create a service account and role binding, create a file named rbac-virtual-kubelet.yaml

Step 2: Run kubectl apply.

Apply the service account and binding with kubectl apply and specify your rbac-virtual-kubelet.yaml file.

Step 3: Run helm init.

Configure Helm to use the tiller service account:

helm init --service-account tiller

Youcan now continue to installing the Virtual Kubelet into your AKS cluster.

App1: Canary deployment

With canary deployment, you deploy a new application code in a smallpart of the production infrastructure. Once the application is signed off for release, only a few users are routed to it. This minimizes any impact.

With no errors reported, the new version can gradually roll out to the rest of the infrastructure.

App2:Rolling deployment:

In a rolling deployment, an application’s new version gradually replaces the old one. The actual deployment happens over a period of time. During that time, new and old versions will coexist without affecting functionality or user experience. This process makes it easier to roll back any new component incompatible with the old components.

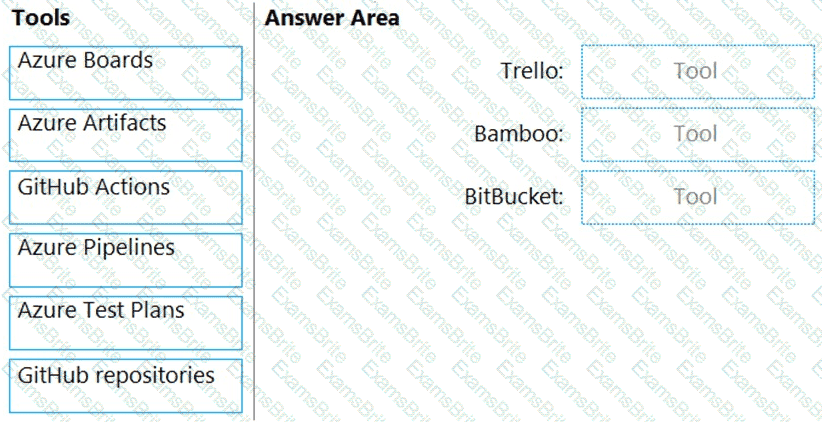

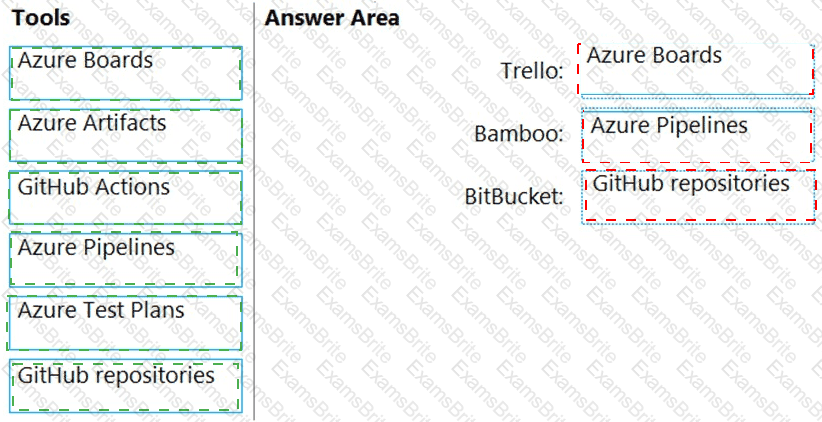

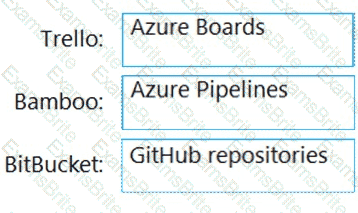

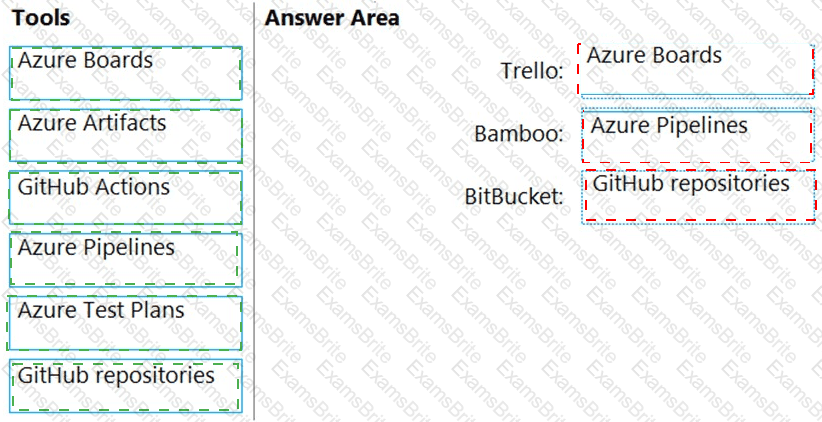

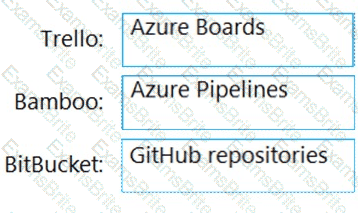

Box 1: Azure Boards

Azure Boards can be used to track work with Kanban boards, backlogs, team dashboards, and custom reporting

You can create multiple Trello boards, which are spaces to store tasks (for different work contexts, or even private boards)

You can easily shareTrello boards with another person.

Box 2: Azure Pipelines

You can use Bamboo to implement CI/CD (Continuous Integration and Continuous Delivery) for a simple Azure function app using Atlassian Bamboo. Bamboo does continuous delivery of the project fromsource code to deployment. It has stages including Build, Test and Deploy.

Software teams in every industry are upgrading their continuous delivery pipeline with Bamboo. Easy build import from popular open source tools, user and group import from JIRA, seamless integration with Bitbucket, and native support for Git, Hg, and SVN means you'll be building and deploying like a champ.

Box 3: GitHub repositories

Bitbucket can be used as the Git repository, but you can use any other Git repository (Like TFS Git)for source control of the code.

Woodgrove Bank plans to implement the following changes to the identity environment:

Configure App1 to use a service principal.

Woodgrove Bank identifies the following technical requirements:

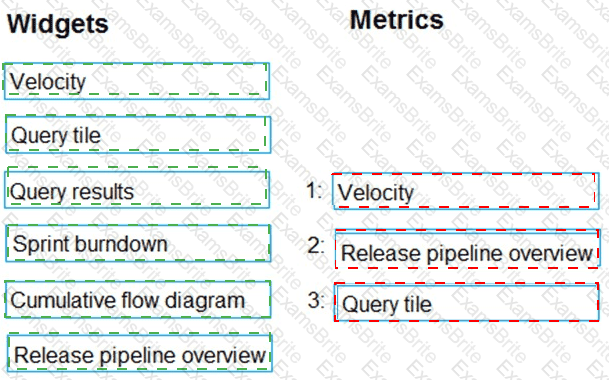

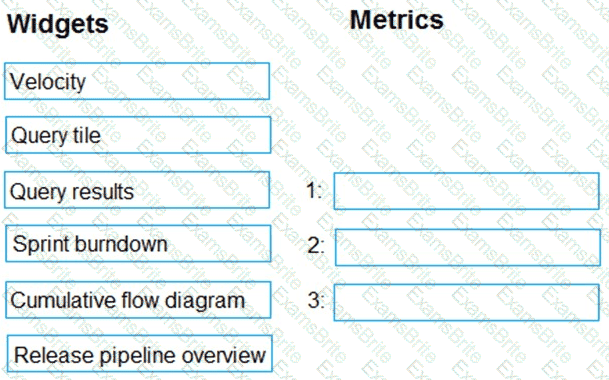

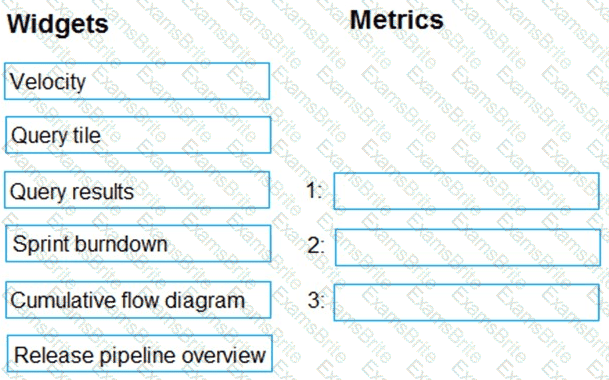

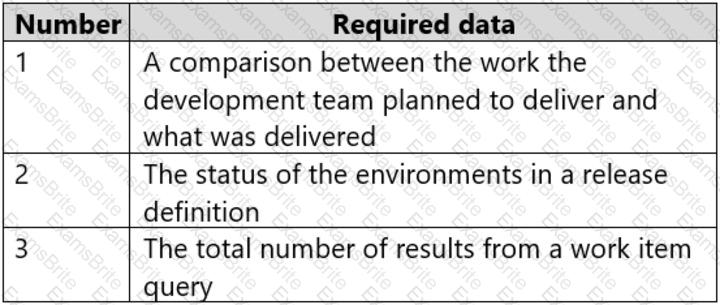

The Azure DevOps dashboard must display the metrics shown in the following table:

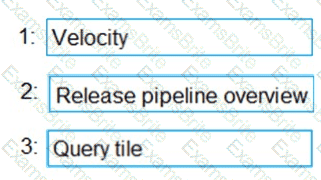

Box 1: Velocity

Velocity displays your team velocity. It shows what your team delivered as compared to plan.

Box 2: Release pipeline overview

Release pipeline overview shows the status of environments in a release definition.

Box 3: Query tile

Query tile displays the total number of results from a query.

Setting 1: Threshold value

Set to 80 %

Scenario: An Azure Monitor alert for VM1 must be configured to meet the following requirements:

Be triggered whenaverage CPU usage exceeds 80 percent for 15 minutes.

Calculate CPU usage averages once every minute.

Setting 2: Aggregation granularity

Set to 15 minutes.

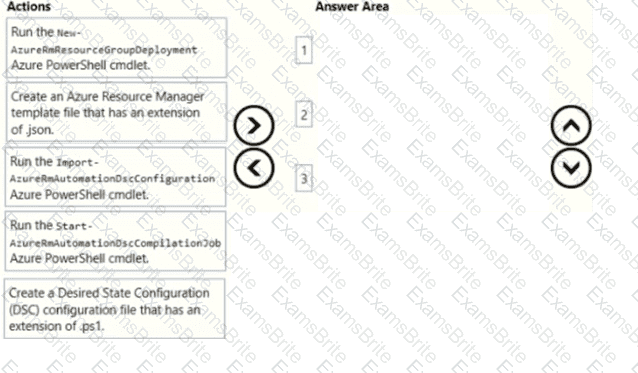

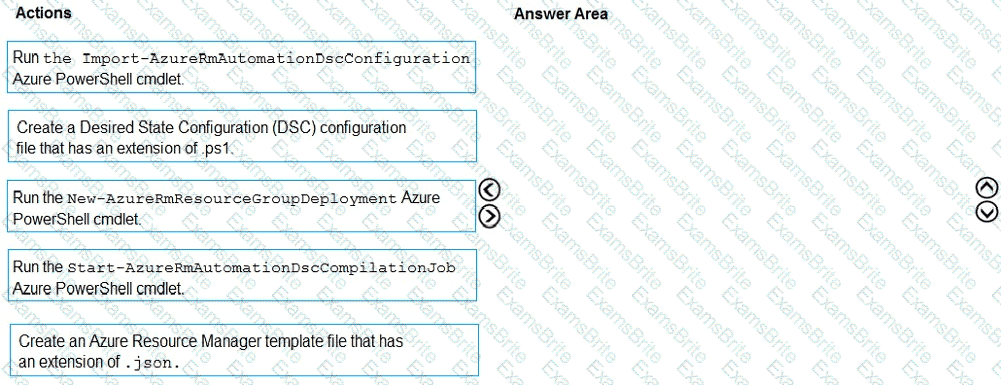

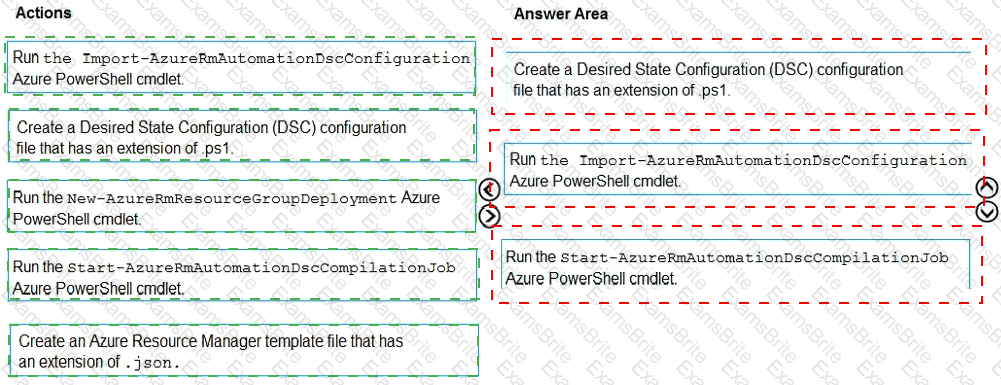

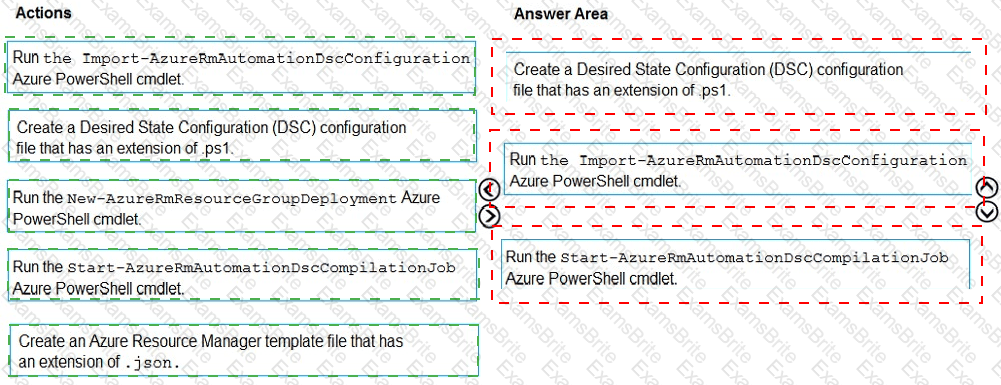

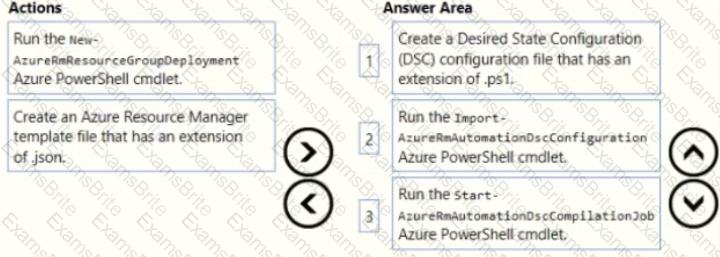

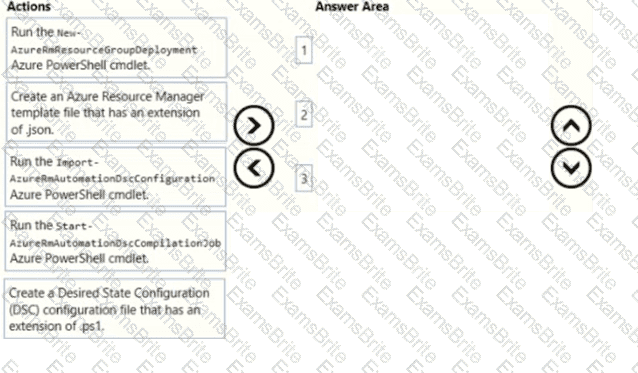

Step 1: Create a Desired State Configuration (DSC) configuration file that has an extension of .ps1.

Step 2: Run the Import-AzureRmAutomationDscConfiguration Azure Powershell cmdlet

TheImport-AzureRmAutomationDscConfiguration cmdlet imports an APS Desired State Configuration (DSC) configuration into Azure Automation. Specify the path of an APS script that contains a single DSC configuration.

Example:

PS C:\>Import-AzureRmAutomationDscConfiguration -AutomationAccountName "Contoso17"-ResourceGroupName "ResourceGroup01" -SourcePath "C:\DSC\client.ps1" -Force

This command imports the DSC configuration in the file named client.ps1 into the Automation account named Contoso17. The command specifies the Force parameter. If there is an existing DSC configuration, this command replaces it.

Step 3: Run the Start-AzureRmAutomationDscCompilationJob Azure Powershell cmdlet

The Start-AzureRmAutomationDscCompilationJob cmdlet compiles an APS Desired State Configuration (DSC) configuration in Azure Automation.

Scenario: Implement Project3, Project5,Project6, and Project7 based on the planned changes

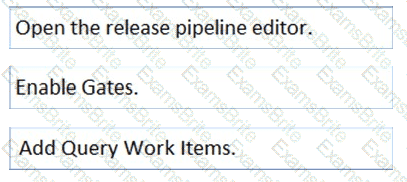

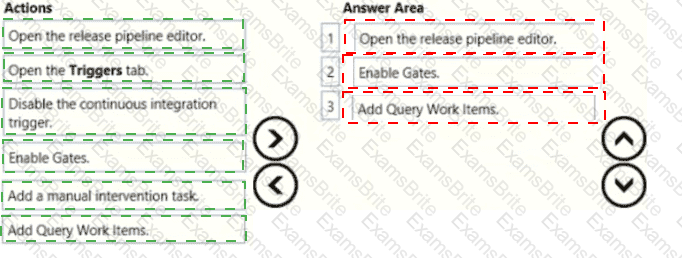

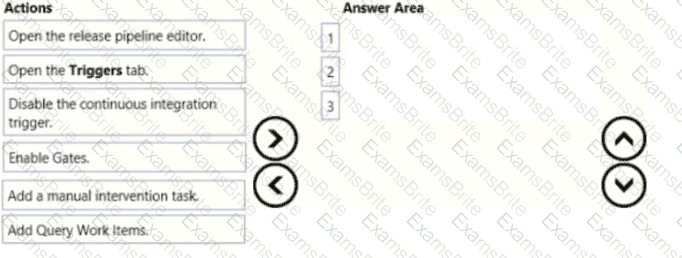

Step 1: Open the release pipeline editor.

In the Releases tab of Azure Pipelines, select your release pipeline and choose Edit to open the pipeline editor.

Step 2: Enable Gates.

Choose thepre-deployment conditions icon for the Production stage to open the conditions panel. Enable gates by using the switch control in the Gates section.

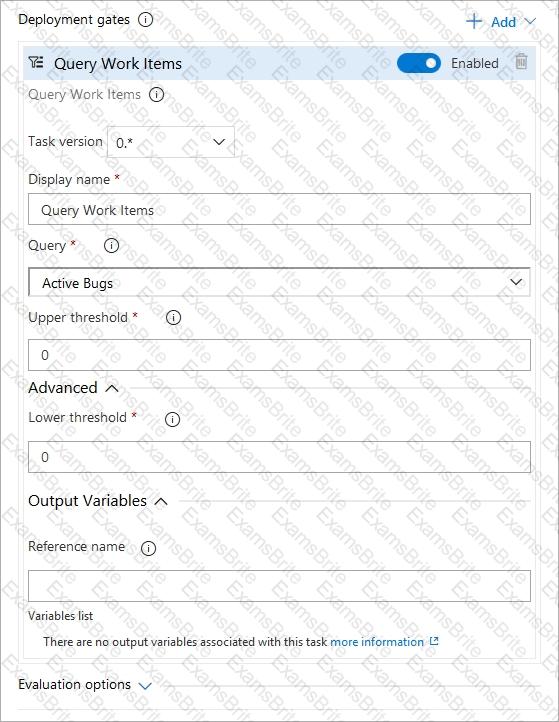

Step 3: Add Query Work items.

Choose + Add and select the Query Work Items gate.

Configure the gate by selecting an existing work item query.

Note: A case for release gate is:

Incident and issues management. Ensure the required status for work items, incidents, and issues. For example, ensure deployment occurs only if no priority zero bugs exist, and validation that there are no active incidents takes place after deployment.

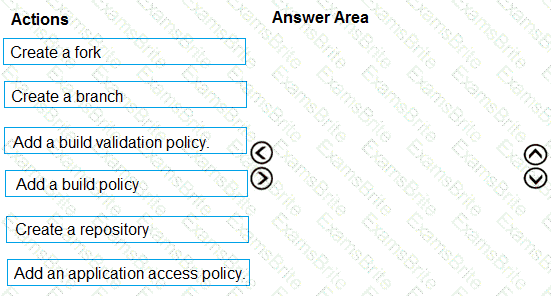

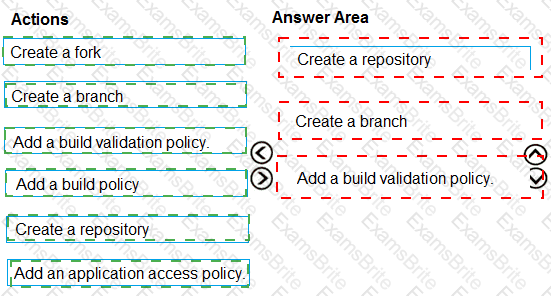

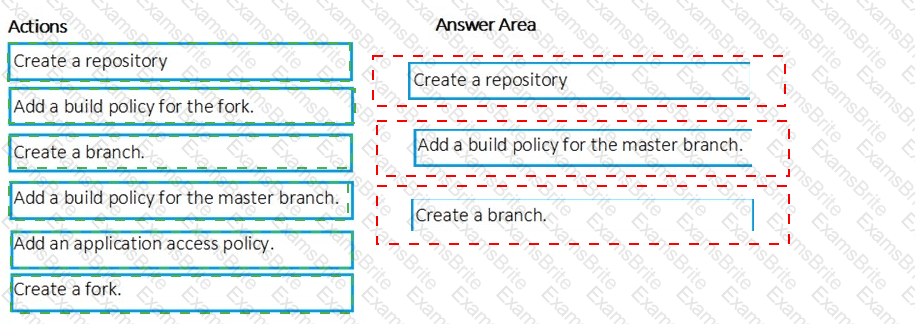

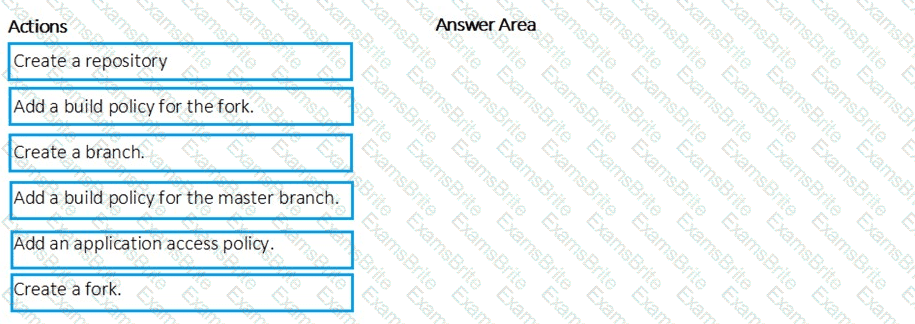

Step 1: Createa repository

A Git repository, or repo, is a folder that you've told Git to help you track file changes in. You can have any number of repos on your computer, each stored in their own folder.

Step 2: Create a branch

Branch policies help teams protect their important branches of development. Policies enforce your team's code quality and change management standards.

Step 3: Add a build validation policy

When a build validation policy is enabled, a new build is queued when a new pull request is created or when changes are pushed to an existing pull request targeting this branch. The build policy then evaluates the results of the build to determine whether the pull request can be completed.

Scenario:

Implement a code flow strategy for Project2 that will:

Enable Team2 to submit pull requests for Project2.

Enable Team2 to work independently on changes to a copy of Project2.

Ensure that any intermediary changes performed by Team2 on a copy of Project2 will be subject to the same restrictions as the ones defined in the build policy of Project2.

Scenario:

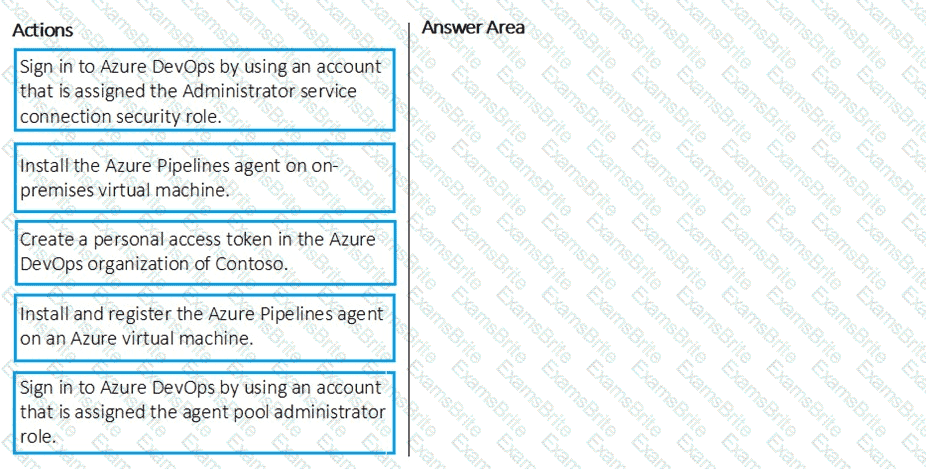

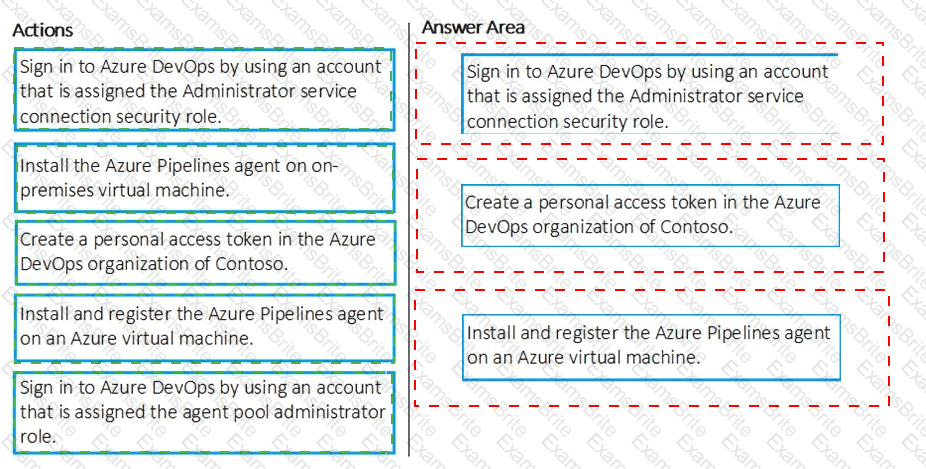

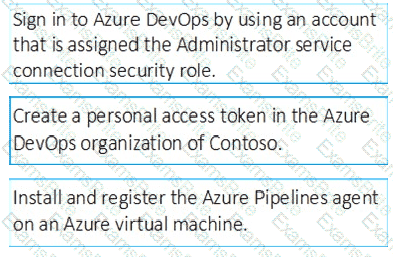

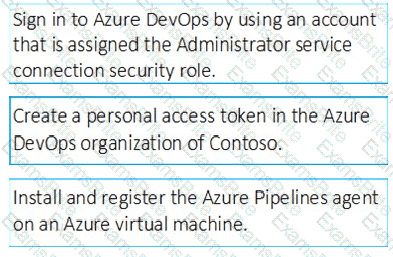

Step 1: Sign in to Azure Develops by using an account that is assigned the Administrator service connection security role.

Note: Under Agent Phase, click Deploy Service Fabric Application. Click Docker Settings and then click Configure Docker settings. In Registry Credentials Source, select Azure Resource Manager Service Connection. Then select your Azure subscription.

Step 2: Create a personal access token..

A personal access token or PAT is required so that a machine can join the pool created with the Agent Pools (read, manage) scope.

Step 3: Install and register the Azure Pipelines agent on an Azure virtual machine.

By running a Azure Pipeline agent in thecluster, we make it possible to test any service, regardless of type.

Scenario:

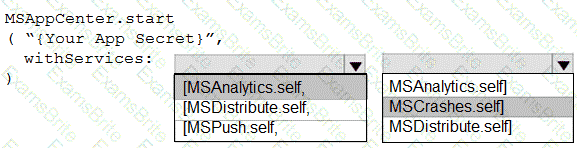

Scenario: Visual Studio App Center must be used to centralize the reporting of mobile application crashes and device types in use.

In order to use App Center, you need to opt in to the service(s) that you want to use, meaning by default no services are started and you will have to explicitly call each of them when starting the SDK.

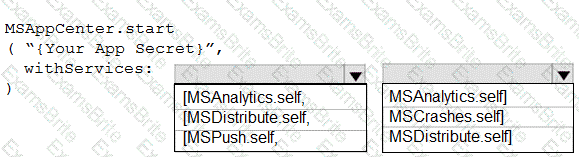

Insert the following line to start the SDK in your app's App Delete class in the didFinishLaunchingWithOptions method.

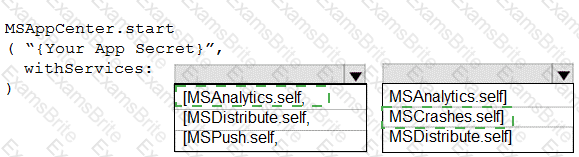

MSAppCenter.start("{Your App Secret}", withServices: [MSAnalytics.self, MSCrashes.self])

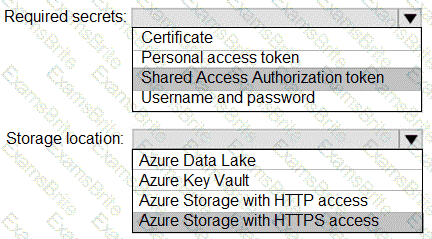

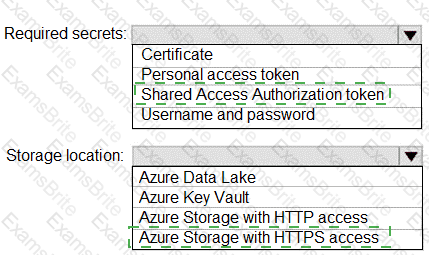

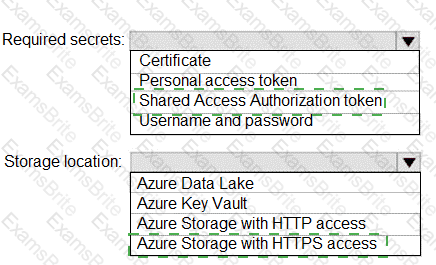

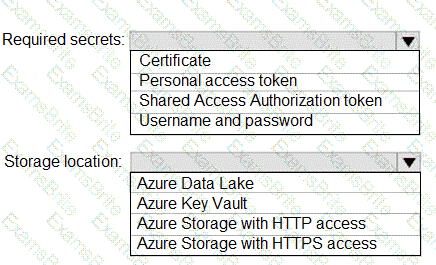

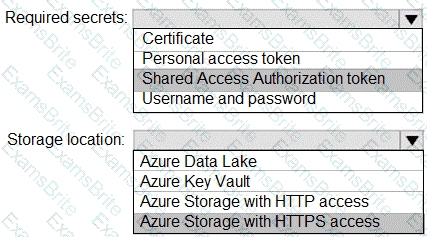

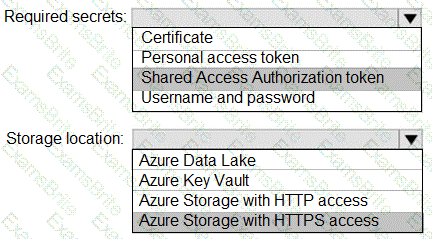

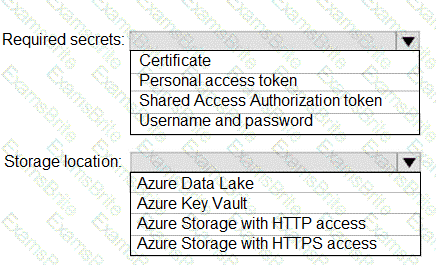

Every request made against a storage service must be authorized, unless the request is for a blob or container resource that has been made available for public or signed access. One option for authorizing a request is by using Shared Key.

Scenario: The mobile applications must be able to call the share pricing service of the existing retirement fund management system. Until the system is upgraded, the service will only support basic authentication over HTTPS.

The investment planning applications suite will include one multi-tier web application and two iOS mobile application. One mobile application will be used by employees; the other will be used by customers.

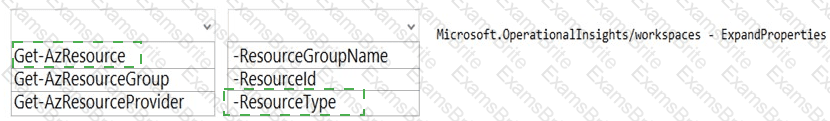

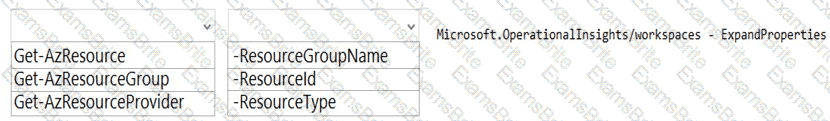

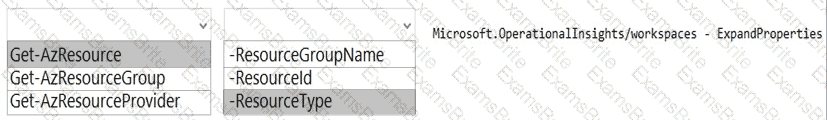

Box 1: Get-AzResource

Use the followingcommand to examine the access control mode for all workspaces in the subscription:

PowerShell

Get-Az Resource –Resource Type Microsoft. Operational Insights/workspaces –Expand Properties | for each {s.Name + ": " + $_.Properties.features.enableLogAccessUsingOnlyResourcePermissions

Box 2: -Resource Type

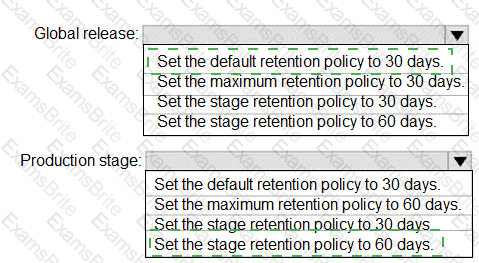

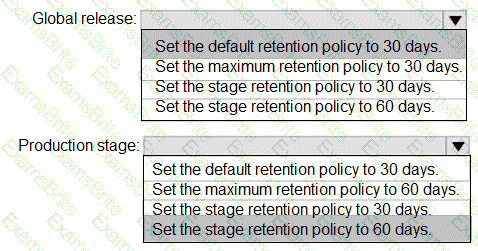

Scenario: By default, all releases must remain available for 30 days, except for production releases, which must be kept for 60 days.

Box 1: Set the defaultretention policy to 30 days

The Global default retention policy sets the default retention values for all the build pipelines. Authors of build pipelines can override these values.

Box 2: Set the stage retention policy to 60 days

You may want to retain more releases that have been deployed to specific stages.

Every request made against a storage service must be authorized, unless the request is for a blob or container resource that has been made available for public or signed access. One option for authorizing a request is by using Shared Key.

Scenario: The mobile applications must be able to call the share pricing service of the existing retirement fund management system. Until the system is upgraded, the service will only support basic authentication over HTTPS.

The investment planning applications suite will include one multi-tier web application and two iOS mobile application. One mobile application will be used by employees; the other will be used by customers.

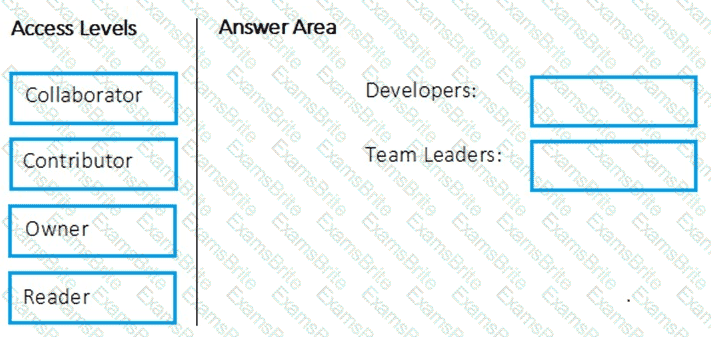

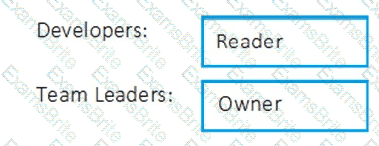

Box 1: Reader

Members of a group named Developers must be able to install packages.

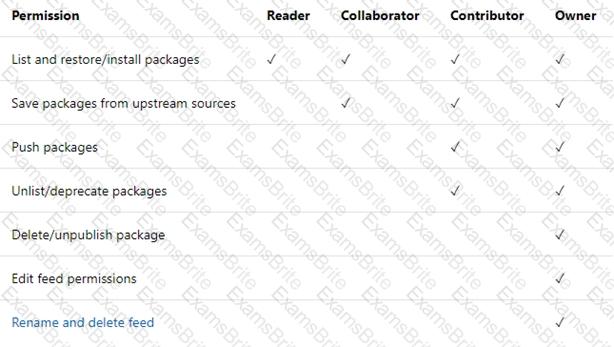

Feeds have four levels of access: Owners, Contributors, Collaborators, and Readers. Ownerscan add any type of identity-individuals, teams, and groups-to any access level.

Box 2: Owner

Members of a group named Team Leaders must be able to create new packages and edit the permissions of package feeds.

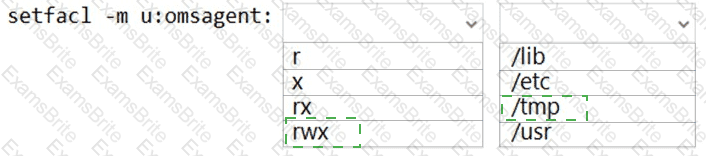

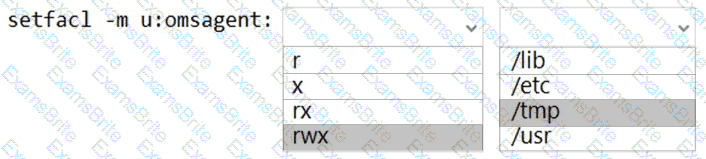

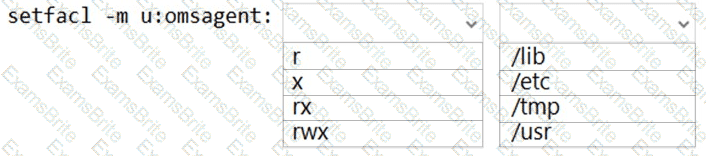

Box 1: rwx

The Log Analytics agent for Linux runs as the omsagent user. To grant >write permission to the omsagent user, run the command setfacl -m u:omsagent:rwx /tmp.

Box 2: /tmp

Deploying DSC to a Linux node uses the /tmp folder.

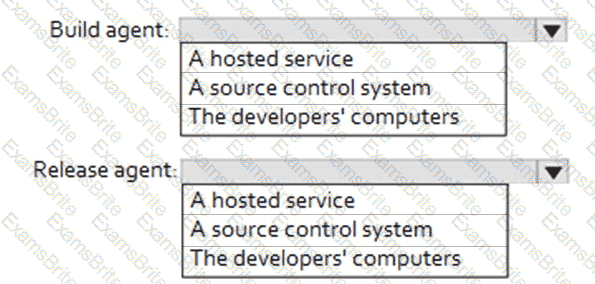

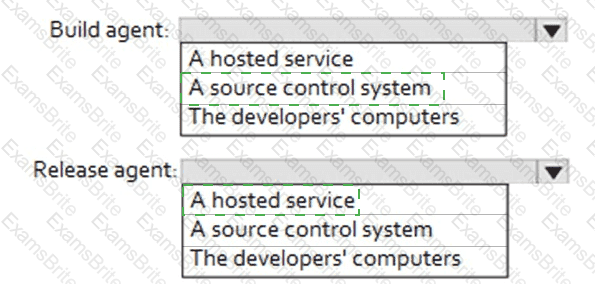

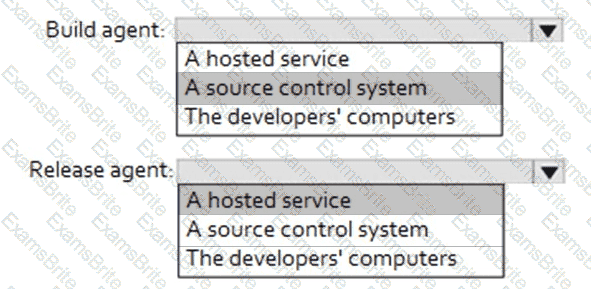

Box 1: A source control system

A source control system, also called a version control system, allows developers to collaborate on code and track changes.Source control is an essential tool for multi-developer projects.

Box 2: A hosted service

To build and deploy Xcode apps or Xamarin.iOS projects, you'll need at least one macOS agent. If your pipelines are in Azure Pipelines and a Microsoft-hosted agentmeets your needs, you can skip setting up a self-hosted macOS agent.

Scenario: The investment planning applications suite will include one multi-tier web application and two iOS mobile applications. One mobile application will be used by employees; the other will be used by customers.
