For enabling jumbo frames on Cisco Nexus switches for NVMe over TCP with tagged VLANs, the following changes are required:

Modify the Cisco Nexus switches to use an MTU of 9216: Setting the MTU to 9216 ensures that the network can handle jumbo frames, reducing the number of packets needed for large data transfers and thus improving performance.

Modify the appropriate broadcast domain in NetApp ONTAP software to use an MTU of 9216: This setting must match the network configuration to ensure end-to-end support for jumbo frames, which is essential for optimizing performance in NVMe over TCP environments.

For additional information, refer to:

NetApp Documentation on NVMe over TCP

Cisco Documentation on Jumbo Frames

When adding 40 more hosts to a two-node NetApp ONTAP cluster that is already hosting 64 SAN hosts, the following actions are necessary to avoid potential performance problems:

Configure additional FC target ports: Increasing the number of Fibre Channel (FC) target ports on the storage nodes will help distribute the I/O load more evenly, reducing the risk of bottlenecks.

Configure additional SAN LIFs: Adding more SAN Logical Interfaces (LIFs) will ensure that the increased number of hosts can connect efficiently, improving load balancing and path management.

These actions help maintain optimal performance and prevent congestion in the SAN environment.

For more detailed guidance, refer to:

NetApp SAN Host Configuration Overview

NetApp Best Practices for SAN​ ( NetApp )​​ ( NetApp )

To migrate data from a LUN on an existing third-party SAN storage system to a new NetApp AFF A400 all-flash MetroCluster system, the supported methods include:

Foreign LUN Import in online mode: This method allows for data migration without significant downtime, enabling the system to continue serving data while the migration process is ongoing.

Foreign LUN Import in offline mode: This method involves taking the LUN offline during the migration process, which may be necessary in certain scenarios to ensure data integrity.

For more details, refer to:

NetApp Documentation on Foreign LUN Import

NetApp Community on LUN Import Methods

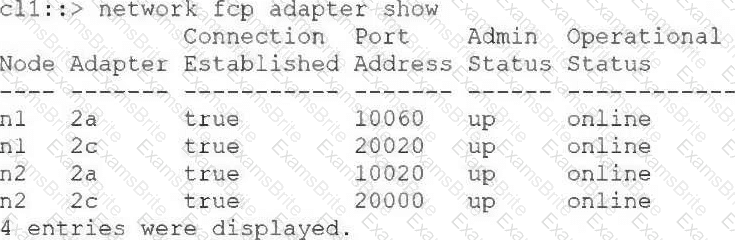

To configure Foreign LUN Import (FLI) on a NetApp HA pair to migrate over FCP LUNs from a third-party array while serving other LUNs, the following actions are required:

Create zoning from the third-party array to the cluster: Proper zoning ensures that the NetApp cluster can communicate with the third-party storage array.

Convert a single FC port on each controller to an FC initiator port: This is necessary for the NetApp system to initiate the connection and access the LUNs on the third-party array.

For more information, refer to:

NetApp Documentation on Foreign LUN Import

For an FCP SAN host, the storage object to present is a LUN, and host access is controlled by mapping that LUN to an initiator group. NetApp’s SAN provisioning workflow creates the LUN, creates or selects an igroup containing the host’s FC WWPNs, and then creates the LUN mapping. A namespace and subsystem are NVMe constructs, not the objects used to present conventional SCSI LUN storage over FCP. Therefore, creating a namespace or mapping storage to an NVMe subsystem would not satisfy the stated FCP requirement. The question assumes the FCP SVM and host connectivity already exist; the required storage-side actions are to provision the new LUN and map it to the appropriate igroup. Relevant SAN ONTAP topics are FCP provisioning, LUN creation, igroups, WWPN-based host access, and LUN mapping.

For a successful deployment of a switchless HA pair with two NetApp DS224C shelves in an already populated rack, it is crucial to verify:

Rack units: Ensure that there are enough rack units available to accommodate the new shelves and any associated equipment. Proper planning of space in the rack is essential for a neat and functional setup.

Power connections: Verify that there are sufficient and appropriately rated power connections available. Ensuring proper power distribution and redundancy is critical for the reliability and uptime of the storage system.

For more details, refer to:

NetApp Documentation on Rack Installation

NetApp Community Discussion on Power Connections

Implementing VLANs for NVMe/TCP configurations provides several benefits, two of which are increased resiliency and increased security:

Increased Resiliency: VLANs help segment the network traffic, reducing the risk of a single point of failure. By isolating NVMe/TCP traffic into specific VLANs, network issues can be contained within a VLAN, preventing them from affecting other parts of the network. This isolation ensures that disruptions are minimized and network resiliency is enhanced.

Increased Security: VLANs provide an added layer of security by segregating traffic. This segregation ensures that NVMe/TCP traffic is isolated from other types of traffic, reducing the risk of unauthorized access or data breaches. VLANs help in enforcing stricter access controls and monitoring, thereby increasing the overall security of the network.

For more information on the benefits of VLANs in NVMe/TCP configurations, you can refer to NetApp ' s technical resources:

Implementing and Configuring Modern SANs with NVMe-oF ​ ( NetApp )​.

SAN Configuration Best Practices​ ( NetApp Community )​.

The engineer should first execute metrocluster check run to perform a current diagnostic validation of the MetroCluster configuration. NetApp documents that this command checks MetroCluster components and relationships and records any configuration errors. After the diagnostic completes, metrocluster check connection show displays the connection-specific results for MetroCluster IP nodes, including network connectivity checks and error information relating to ping, MTU, and storage connectivity. This directly addresses the requirement to verify backend network connections. metrocluster check cluster show focuses on cluster configuration results, while metrocluster check lif show focuses on LIF placement and related checks rather than the backend connections themselves. Relevant SAN ONTAP and MetroCluster topics include MetroCluster diagnostics, backend IP connectivity, configuration validation, inter-site connections, and post-installation verification.

To move SAN LIFs to new nodes that are members of a portset during maintenance of a NetApp AFF ONTAP cluster, you should take the following steps:

Remove the LIF from the portset: This ensures that the LIF is no longer associated with the current node, preparing it for the move to the new node.

Take the SAN LIF offline: This step is necessary to make configuration changes without causing disruption to the SAN hosts. Once offline, the LIF can be moved to the new node and reconfigured as needed.

These actions help maintain the integrity and performance of the SAN environment during the migration of LIFs.

For more details, see:

NetApp Documentation on Moving SAN LIFs

NetApp Community on Moving LIFs

To restore a LUN from a SnapMirror Synchronous destination, the following steps must be taken:

Release the relationship: This step is necessary to break the SnapMirror relationship, allowing the LUN to be restored independently.

Delete the relationship: After releasing the relationship, deleting it ensures that there are no residual dependencies or configurations that might interfere with the restore process.

For more information, refer to:

NetApp Documentation on SnapMirror Synchronous​ ( NetApp )​​ ( NetApp )​.

ONTAP interface groups support several traffic-distribution algorithms, including port, which distributes traffic using transport-layer TCP or UDP port information. Therefore, network port ifgrp create -distr-func port establishes the corresponding ONTAP-side distribution behavior. The connected Cisco Nexus infrastructure should use a compatible port-channel hashing method; NetApp validated architectures show port-channel load-balance src-dst l4port for Nexus switches so source and destination Layer-4 ports contribute to traffic distribution. This improves utilization across member links compared with algorithms using fewer flow attributes. The original V9.02 text contained the typographical string 14port; the correct command parameter is l4port, meaning Layer 4 port. Options C and D do not establish the requested port-based load-balancing algorithm. Relevant SAN ONTAP topics include interface groups, port distribution functions, link aggregation, and Nexus port-channel hashing.
