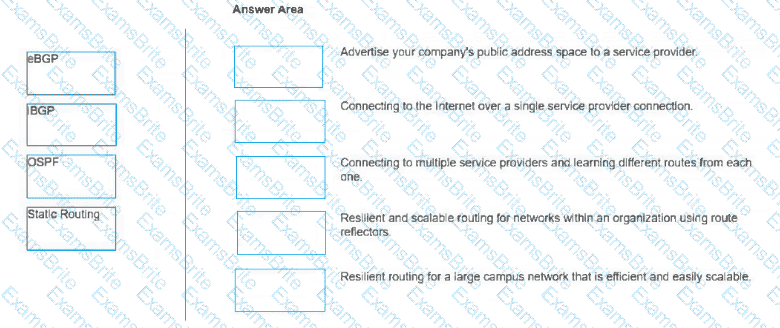

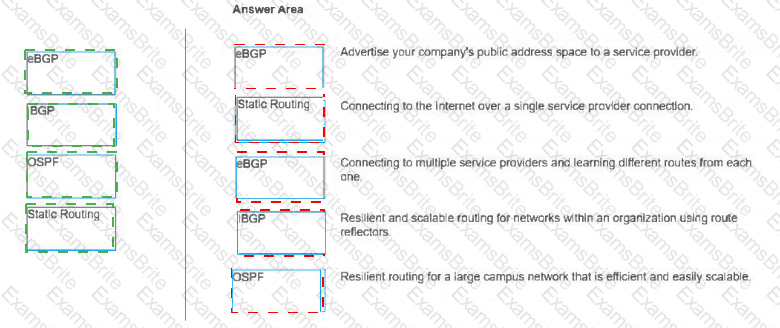

Answer Area:

Advertise your company ' s public address space to a service provider: eBGP

Connecting to the Internet over a single service provider connection: Static Routing

Connecting to multiple service providers and learning different routes from each one: eBGP

Resilient and scalable routing for networks within an organization using route reflectors: iBGP

Resilient routing for a large campus network that is efficient and easily scalable: OSPF

In AOS-CX design, selecting the right routing protocol is based on the boundary of the administrative control and the required scale.

Advertise public address space to a service provider (eBGP): External BGP (eBGP) is the industry-standard protocol used to exchange routing information between different Autonomous Systems (AS). To let the world know how to reach your public IP block, you must " speak " eBGP with your ISP.

Single service provider connection (Static Routing): When a network has only one exit point (a " stub " connection) to the Internet, dynamic protocols are unnecessary. A simple default static route (0.0.0.0/0) pointing to the ISP gateway is the most efficient and least resource-intensive method.

Multiple service providers / Multi-homing (eBGP): When you have two or more ISPs, your switch needs to make a decision on which path is better based on attributes like AS-Path length or MED. eBGP is required here to receive and process these external path attributes.

Internal organization routing with route reflectors (iBGP): Internal BGP (iBGP) is used to carry BGP prefixes within an AS. Because iBGP requires a " Full Mesh " by default (every router connected to every other router), it does not scale well. Route Reflectors are the architectural solution used to allow a central switch to reflect routes to others, ensuring scalability within the organization.

Large campus network (OSPF): Open Shortest Path First (OSPF) is a Link-State Interior Gateway Protocol (IGP). It is the preferred choice for Aruba campus environments because of its fast convergence, hierarchical design (Areas), and ability to handle large numbers of internal subnets efficiently.

In a network management environment like Aruba Central, alerts are used to provide proactive notification of infrastructure degradation. When dealing specifically with physical cabling issues (Layer 1), we look for symptoms of signal degradation or negotiation failures.

Switch Port Input Errors (Option A): This is the most direct indicator of a cabling problem. Physical issues—such as a bad crimp, a cable exceeded its maximum length, electromagnetic interference (EMI), or a damaged pin—typically manifest as CRC errors, runts, or giants. Monitoring for input errors allows Central to flag a port as unhealthy due to physical data corruption.

Switch Port Duplex Mode (Option E): While most modern devices use Auto-Negotiation, physical layer issues or faulty older hardware can lead to a Duplex Mismatch (e.g., one side is Half-Duplex, the other is Full-Duplex). This results in late collisions and extreme performance degradation. An alert for Duplex Mode changes or mismatches is a standard part of physical layer troubleshooting.

Why other options are incorrect:

Option B: Rx Rate monitors the volume of traffic. High or low traffic doesn ' t inherently mean the cable is bad; it just means the link is busy or idle.

Option C: Hardware failure refers to the internal components of the switch (ASICs, Fans, Power Supplies), not the external cabling.

Option D: Uplink Port Usage is a capacity planning metric (Layer 2/3) rather than a physical integrity metric.

Valid Network Analytics Engine (NAE) agent actions include:

Running CLI commands (Option A), allowing automated command execution for remediation or data collection.

Generating local system logs (Option C) for event tracking and audit purposes.

Other options:

Generating SNMP traps (B) and starting/stopping packet captures (D) are not typical NAE actions.

Creating a new TAC case (E) is an external process, not an automated NAE action.

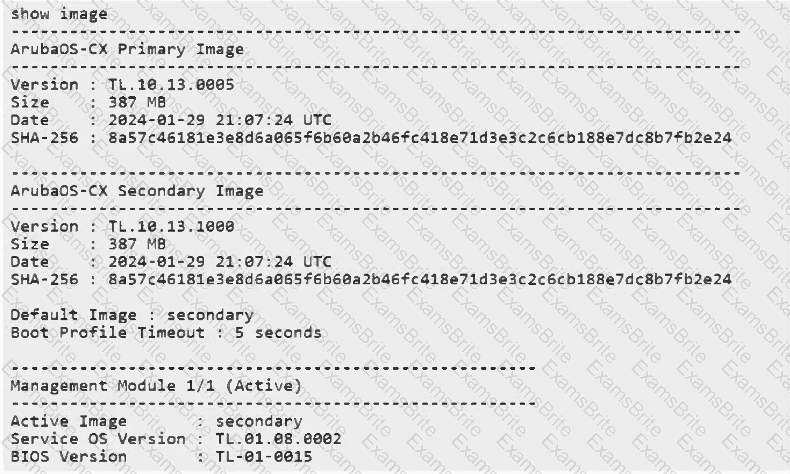

For a CX 8320 VSX pair , the recommended low-disruption upgrade mechanism is to pre-stage the new AOS-CX image on both VSX members and then invoke the coordinated vsx update-software boot-bank procedure for the bank containing that image. In this workflow, the new software is placed in the secondary boot bank on both switches , and vsx update-software boot-bank secondary is then used to perform the coordinated upgrade.

The significant advantage of the VSX upgrade command is that it controls the reboot sequence automatically. HPE Aruba specifies that the VSX secondary peer is upgraded and rebooted first . After it returns and the VSX relationship is restored appropriately, the VSX primary peer is upgraded and rebooted . This sequential procedure allows the surviving VSX member to continue forwarding traffic, substantially reducing service interruption compared with simultaneously rebooting both switches. Aruba Networks

The software should be pre-staged when the maintenance window is limited, because doing so removes image-transfer time from the actual upgrade window. Aruba Networks

Option D is incorrect for the CX 8320 VSX procedure. issu update-software confirm merely confirms a previously completed supported ISSU operation and cancels its rollback timer; it does not initiate a VSX software upgrade . Aruba Networks

Study Guide References: VSX Software Upgrade; Pre-Staged Boot Banks; vsx update-software boot-bank; Sequential VSX Peer Reboot; High-Availability Maintenance.

AOS-CX is a modern, database-driven operating system, but it is built with extensive backward compatibility to ensure it fits into established enterprise ecosystems.

CLI (Command Line Interface) (Option A): This is the most traditional form of switch management. AOS-CX provides a robust CLI accessible via Console, Telnet, or SSH. While the syntax is " industry-standard " (similar to Cisco or older ArubaOS-Switch), it remains a " legacy " pillar that almost all existing management systems (like Rancid, SolarWinds, or custom scripts) use for configuration and state collection.

SNMP (Simple Network Management Protocol) (Option E): SNMP is the universal " legacy " language for network monitoring. AOS-CX supports SNMP v1, v2c, and v3. Legacy Management Systems (NMS) rely on SNMP MIBs (Management Information Bases) to pull statistics about port utilization, temperature, and errors.

Modern vs. Legacy:

REST API (Option B): This is a modern, programmable interface where every command in the switch can be executed via a JSON-based web call. Legacy systems typically do not support this.

NAE (Option C): The Network Analytics Engine is unique to AOS-CX and uses Python scripts for local monitoring. This is a " Next-Gen " feature.

HTTPS (Option D): While web interfaces have been around a while, the modern AOS-CX Web UI is a sophisticated tool built on top of the REST API, and it is generally considered a primary management method for the " Modern " era rather than a " Legacy Management System " integration point like SNMP.

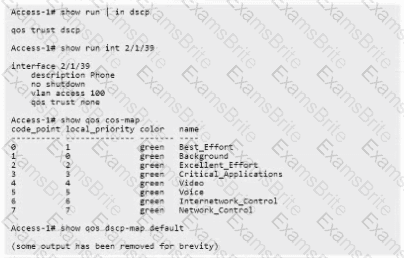

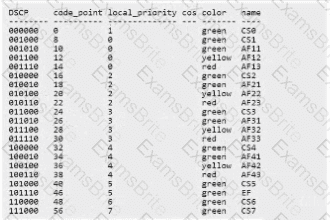

In an end-to-end Quality of Service (QoS) design, the goal is to maintain the priority of traffic as it transitions from the wireless medium (WMM) to the wired infrastructure (Ethernet).

WMM to DSCP Mapping: Aruba APs map Wireless MultiMedia (WMM) Access Categories (like Voice or Video) to specific DSCP (Differentiated Services Code Point) values in the IP header before forwarding the frames onto the wired network.

The Concept of " Trust " : By default, many switches operate in a " trusted " or " untrusted " mode. If a port is untrusted, the switch will strip or ignore any DSCP markings on incoming packets and remark them to 0 (Best Effort). To prevent this, the AOS-CX switch must be configured to trust the incoming DSCP markings.

Applying Trust via Interface (Option B): On the physical ports where APs are connected, you must apply the command qos trust dscp. This ensures that as the AP sends traffic into the switch, the switch honors the DSCP values assigned by the AP.

Applying Trust via User-Role (Option A): In modern Aruba " Colorless Port " architectures, switches often use User-Based Tunneling (UBT) or local roles assigned via ClearPass. If the AP itself is assigned a " User-Role " upon connection, that role can include a QoS policy that specifies DSCP trust. This is the preferred method for dynamic environments because the security and QoS policies follow the device regardless of which physical port it uses.

Why other options are incorrect:

Option C: LLDP-MED is used to negotiate parameters (like Voice VLAN), but it doesn ' t provide the granular " trust " mechanism required for WMM-to-DSCP mapping.

Option D: Colorless ports are a deployment method for roles, but " Colorless ports " is not a configuration command that handles QoS prioritization itself.

Option E: AOS-CX does not typically utilize a " global " trust command; trust is applied at the ingress point (interface or role) to maintain security and control.
