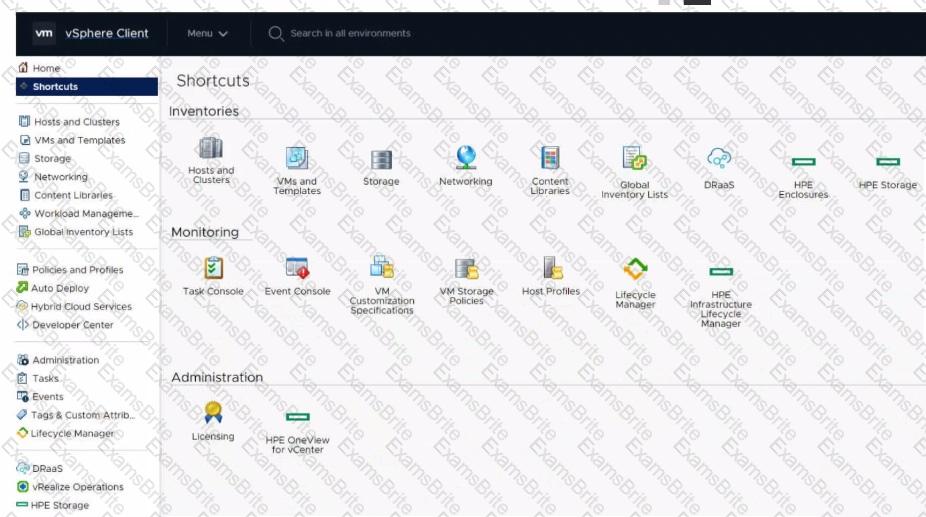

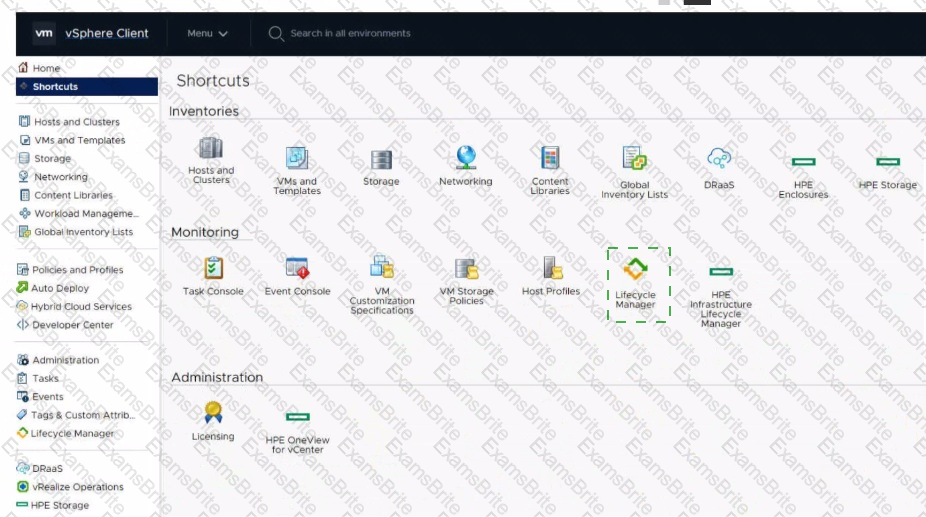

TheLifecycle Managerin the vSphere Client interface is used for managing and updating ESXi hosts, including changing the ESXi image used in an OS Deployment Plan. This tool allows administrators to import, export, and apply different ESXi images, ensuring that the hosts are running the desired version and configuration of ESXi.

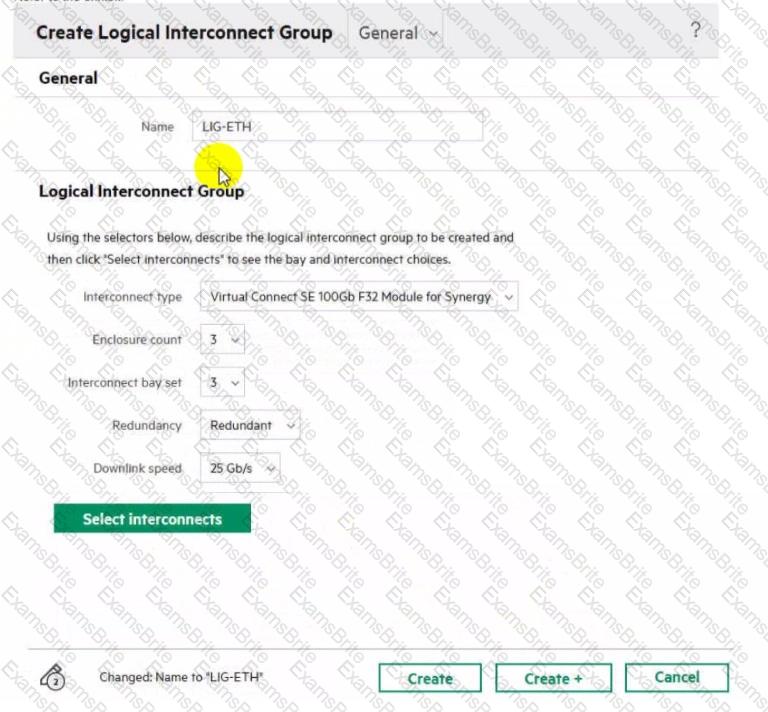

Click the drop-down menu next to"Interconnect bay set".

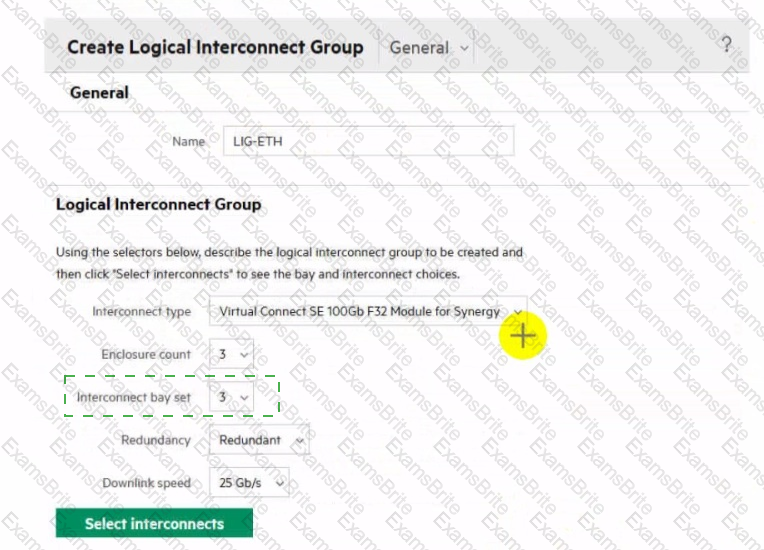

To define the location of the master modules within the logical interconnect group, you need to select the appropriate interconnect bay set. The drop-down menu next to "Interconnect bay set" allows you to specify which bays the interconnect modules will be placed in, thereby determining the location of the master modules.

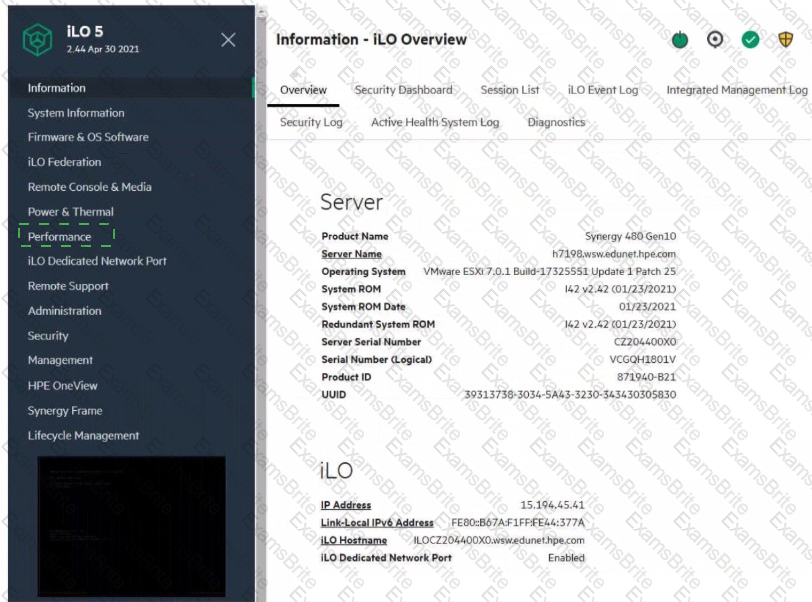

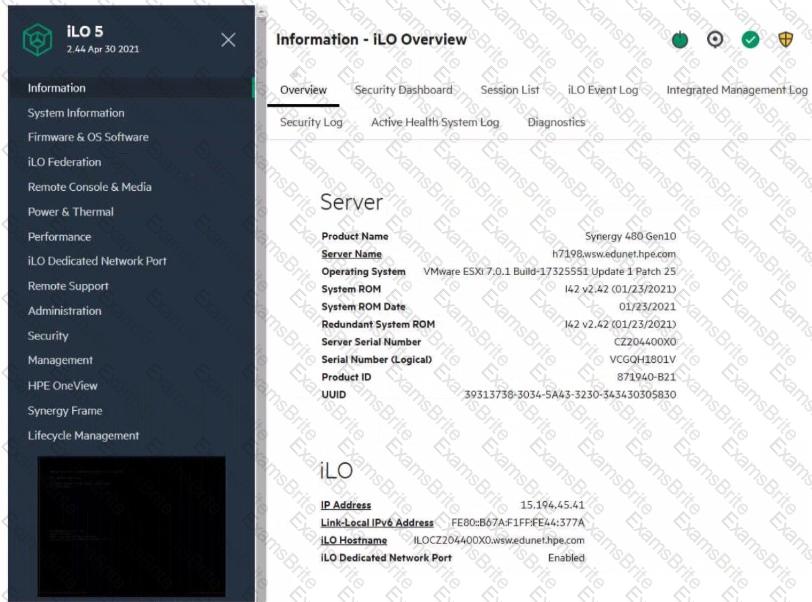

ThePerformancesection within the iLO management interface provides access to the Workload Advisor. This feature offers insights and analytics regarding the server's performance, helping to optimize workloads and manage resources efficiently.

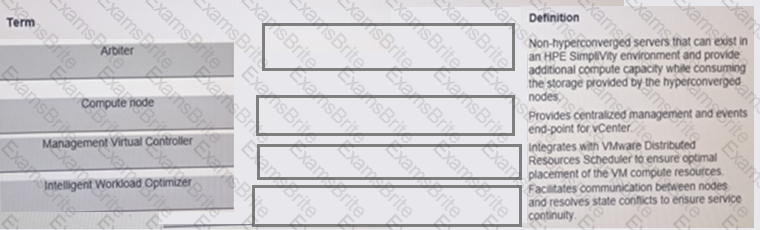

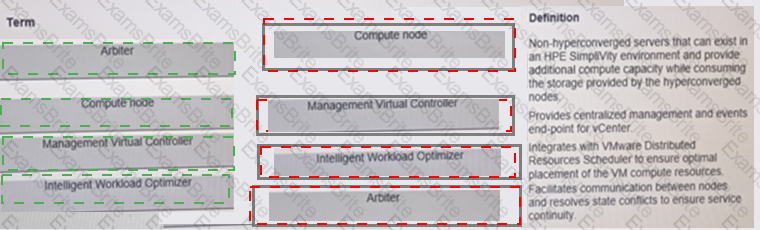

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

ArbiterDefinition:Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute nodeDefinition:Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Management Virtual ControllerDefinition:Provides centralized management and events end-point for vCenter.

Intelligent Workload OptimizerDefinition:Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Arbiter:This component is essential for ensuring that the HPE SimpliVity nodes communicate properly and that any state conflicts are resolved, which is critical for maintaining service continuity.

Compute node:These are non-hyperconverged servers that add additional compute capacity to the HPE SimpliVity environment. They utilize the storage resources provided by the hyperconverged nodes.

Management Virtual Controller:This controller is responsible for centralized management and acts as the events end-point for vCenter, allowing for streamlined management of the SimpliVity environment.

Intelligent Workload Optimizer:This tool integrates with VMware's Distributed Resources Scheduler (DRS) to ensure that virtual machine (VM) compute resources are placed optimally across the infrastructure.

(observing, learning, predicting, recommending, acting)

Observing:The first step involves collecting and monitoring data from the infrastructure. HPE InfoSight continuously gathers telemetry data from various components, including storage, compute, and networking devices.

Learning:In this step, the collected data is analyzed to identify patterns and trends. Machine learning algorithms process the data to understand the normal behavior of the system and detect anomalies.

Predicting:Based on the learned patterns, HPE InfoSight can predict potential issues before they occur. This predictive analysis helps in identifying areas that might cause problems in the future.

Recommending:After predicting potential issues, HPE InfoSight provides actionable recommendations to prevent or resolve these issues. These recommendations are based on best practices and the vast amount of data analyzed by InfoSight.

Acting:Finally, the recommendations are implemented to optimize the performance and reliability of the infrastructure. This step may involve configuring settings, applying updates, or other actions to maintain the health of the system.

D. FC upgrade licenses for HPE Virtual Connect SE 100 GbF32 Module must be added:To enable Fibre Channel functionality on the HPE Virtual Connect SE 100Gb F32 Modules, it is necessary to add FC upgrade licenses. These licenses unlock the FC capabilities required for the proposed setup.

E. Remove 4 HPE Composer 2 modules from the design, as they are not required:The proposed design includes 6 HPE Composer 2 modules, but typically, only a pair of HPE Composer 2 modules is required to manage up to 21 frames. Therefore, the remaining 4 Composer 2 modules are not necessary and can be removed from the design.

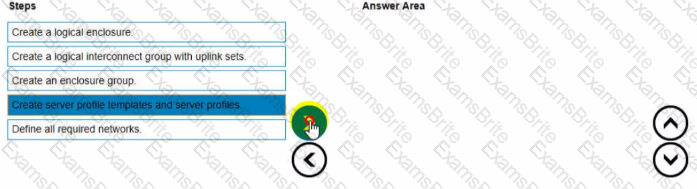

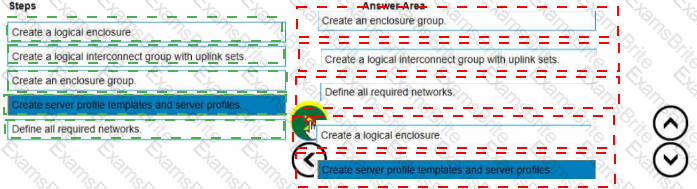

To set up HPE Synergy frames after the hardware components are discovered within HPE OneView, the following steps should be followed in the correct order:

Create an enclosure group.

Create a logical interconnect group with uplink sets.

Define all required networks.

Create a logical enclosure.

Create server profile templates and server profiles.

Create an enclosure group:This step involves defining the enclosure group, which includes the configurations for the enclosure such as firmware baselines and logical interconnect groups.

Create a logical interconnect group with uplink sets:Next, set up the logical interconnect group, which includes the uplink sets that define the connectivity from the enclosures to the data center networks.

Define all required networks:After setting up the logical interconnect group, define all the necessary networks that will be used within the HPE Synergy environment.

Create a logical enclosure:Create a logical enclosure by combining the physical enclosures with the defined enclosure group, effectively binding the hardware configuration with the logical settings.

Create server profile templates and server profiles:Finally, create server profile templates and individual server profiles to apply the required configuration settings to the compute modules.

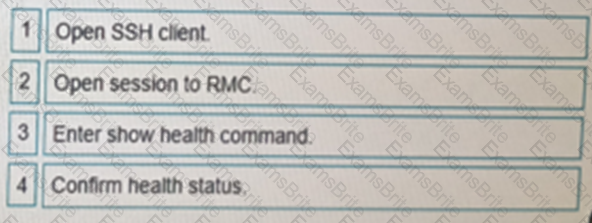

Open SSH client:Begin by opening an SSH client on your computer. This client will be used to establish a secure connection to the Rack Management Controller (RMC).

Open session to RMC:Use the SSH client to open a session to the RMC. The RMC is the central management component for the HPE Superdome Flex system.

Enter show health command:Once connected to the RMC, enter theshow healthcommand. This command will provide detailed information about the health status of various components within the Superdome Flex system.

Confirm health status:Review the output of theshow healthcommand to confirm the health status of the Superdome Flex components. This step ensures that all components are functioning correctly and identifies any potential issues.

To expand an existing logical enclosure based on a single HPE Synergy frame to include a second frame and ensure a highly available master setup, the following steps should be performed:

Modify an existing logical interconnect to include the second HPE Synergy frame:This step involves updating the logical interconnect configuration to encompass the new frame, ensuring network connectivity and consistency across both frames.

Move one of the master modules to the appropriate interconnect bay in the second frame:To achieve a highly available master setup, one of the master modules should be relocated to the second frame, providing redundancy and high availability for the management components.

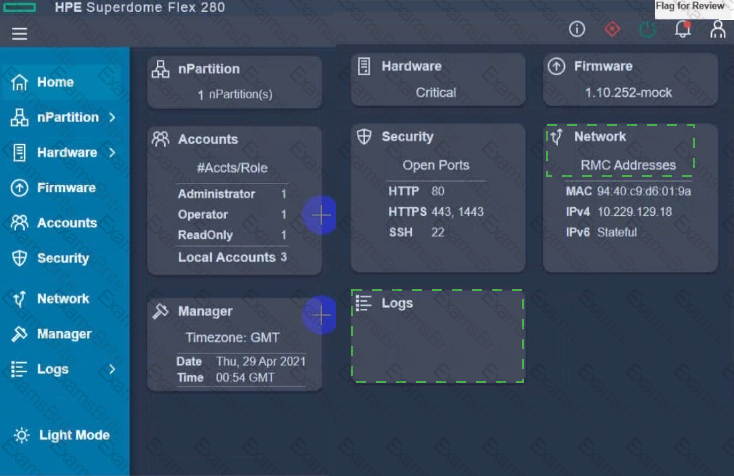

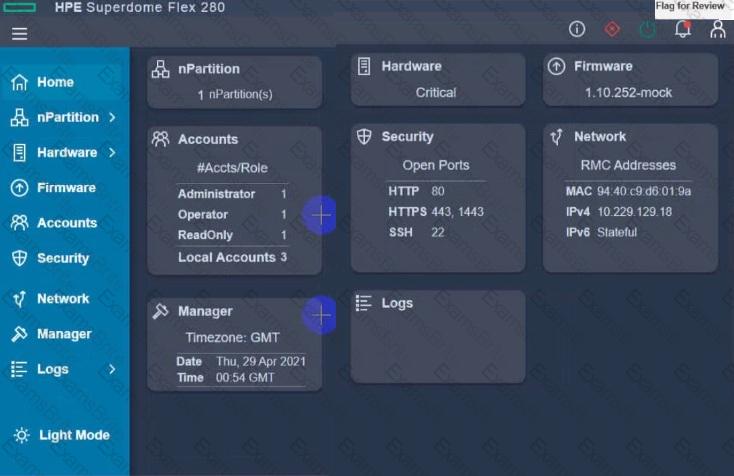

To check the Core Analysis Engine (CAE) Log on the HPE Superdome Flex 280, navigate to theLogssection in the management interface. This section provides access to various logs, including system, security, and diagnostic logs, which encompass the CAE logs necessary for detailed analysis and troubleshooting.

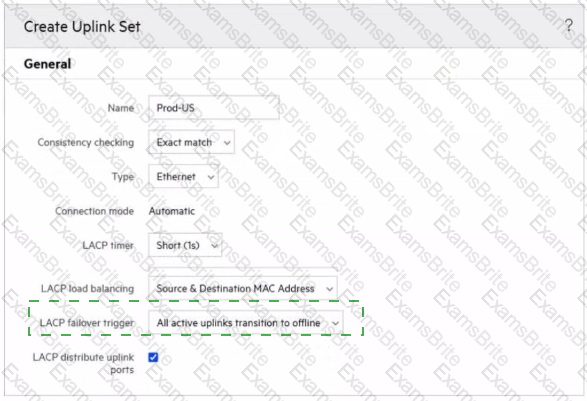

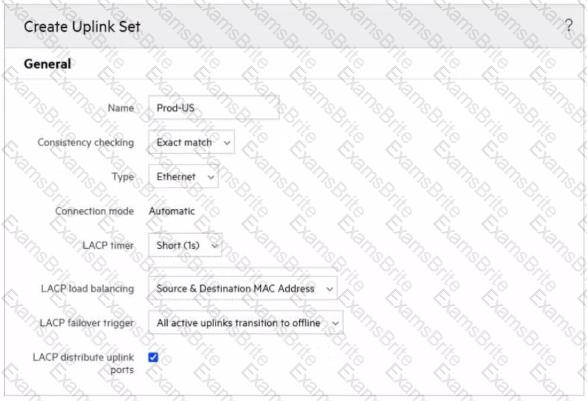

To prevent a timeout and loss of communication during an external switch firmware upgrade, the customer should configure theLACP failover triggerwithin the uplink set. By setting the LACP failover trigger to "All active uplinks transition to offline," the configuration ensures that the traffic will be redirected to available uplinks in the event of an uplink failure or during the upgrade process, maintaining communication and preventing timeouts.
