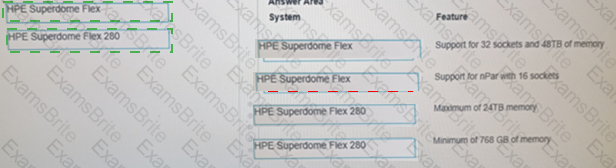

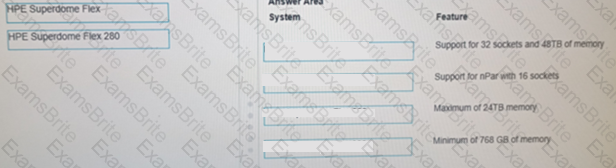

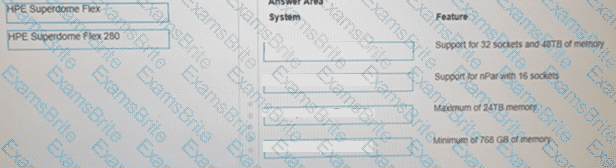

Here are the correct matches for each HPE Superdome Flex system with its respective feature:

HPE Superdome Flex

Support for 32 sockets and 48TB of memory

Support for nPar with 16 sockets

HPE Superdome Flex 280

Maximum of 24TB memory

Minimum of 768 GB of memory

HPE Superdome Flex:

Support for 32 sockets and 48TB of memory: The HPE Superdome Flex system is designed for extremely large-scale workloads and can support configurations with up to 32 CPU sockets and 48TB of memory.

Support for nPar with 16 sockets: This system supports nPartitions (nPars) with configurations that can include up to 16 CPU sockets, providing flexible partitioning and resource allocation.

HPE Superdome Flex 280:

Maximum of 24TB memory: The HPE Superdome Flex 280 supports a maximum memory capacity of 24TB, suitable for large but not as massive workloads compared to the full Superdome Flex.

Minimum of 768 GB of memory: The minimum memory configuration for the HPE Superdome Flex 280 is 768 GB, ensuring a base level of performance and capacity for smaller deployments.

D. FC upgrade licenses for HPE Virtual Connect SE 100 GbF32 Module must be added: To enable Fibre Channel functionality on the HPE Virtual Connect SE 100Gb F32 Modules, it is necessary to add FC upgrade licenses. These licenses unlock the FC capabilities required for the proposed setup.

E. Remove 4 HPE Composer 2 modules from the design, as they are not required: The proposed design includes 6 HPE Composer 2 modules, but typically, only a pair of HPE Composer 2 modules is required to manage up to 21 frames. Therefore, the remaining 4 Composer 2 modules are not necessary and can be removed from the design.

HPE MSA 2062 Storage Array is not supported in HPE OneView: HPE OneView does not provide management capabilities for the HPE MSA series, which includes the MSA 2062. These arrays must be managed using their dedicated management tools.

HPE Primera 650 can be managed using HPE OneView: HPE OneView supports the management of HPE Primera storage arrays, including the Primera 650, allowing for integrated management and monitoring within the OneView environment.

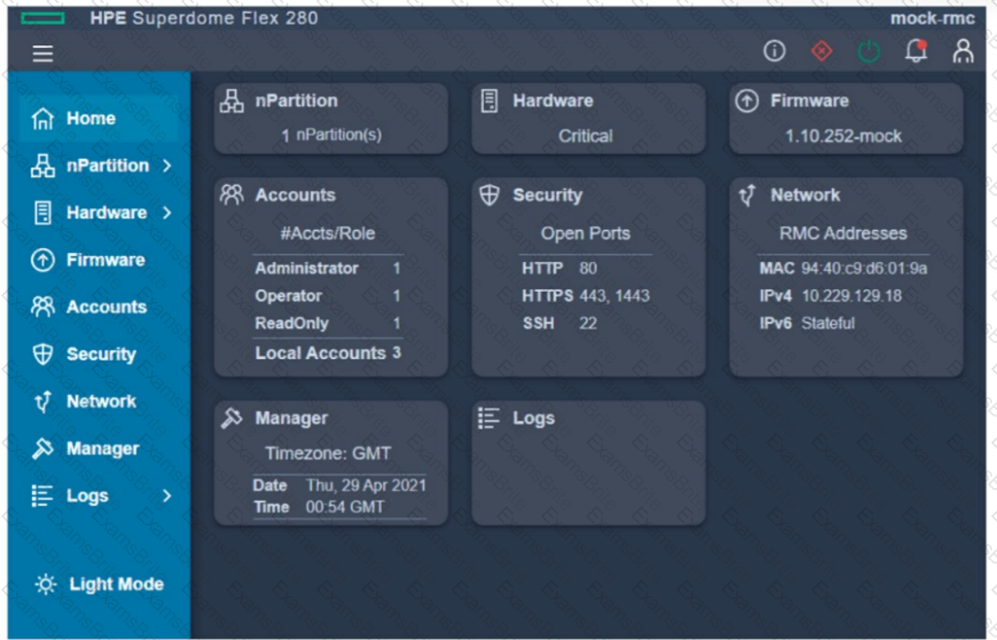

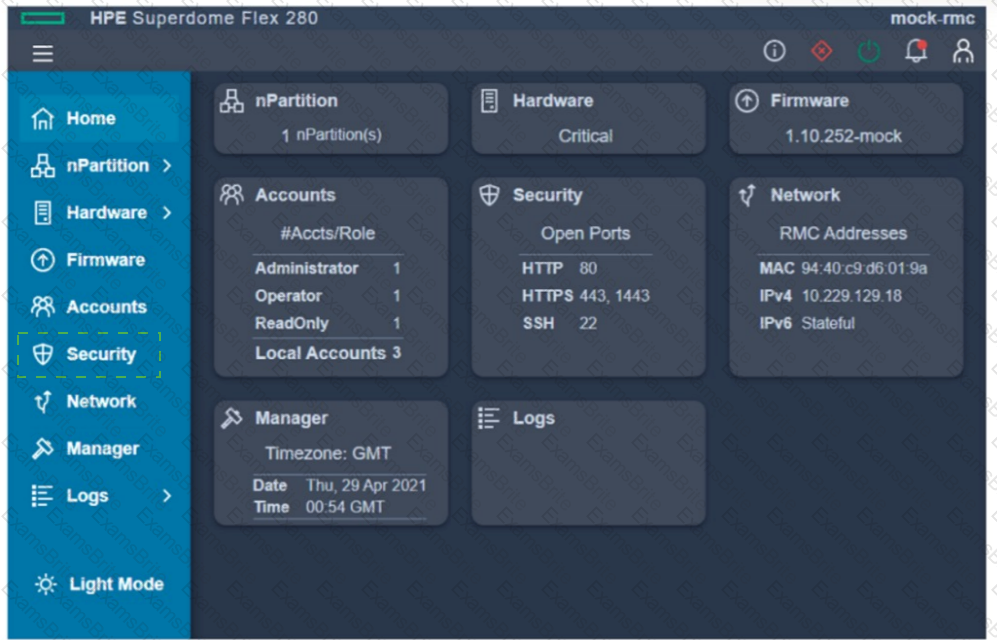

To check the network protocol status and SSL certificate in the HPE Superdome Flex 280 management interface, you should click on the "Security" section on the left-hand menu. This section typically provides access to details about protocols like HTTPS, SSL certificates, and port configurations.

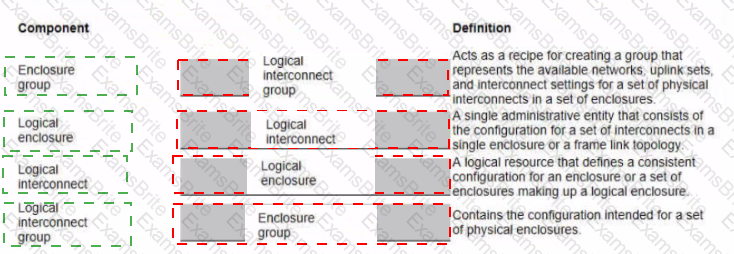

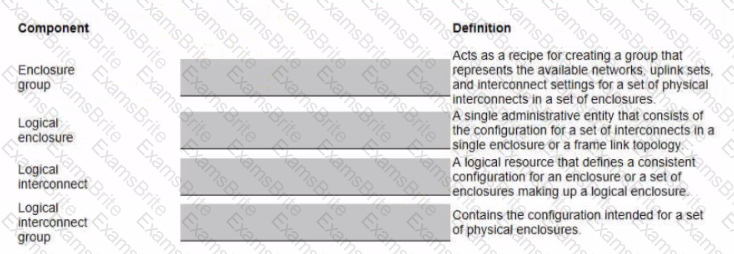

Here are the correct matches for each HPE Synergy logical component with their respective definitions:

Enclosure groupDefinition: Contains the configuration intended for a set of physical enclosures.

Logical enclosureDefinition: A logical resource that defines a consistent configuration for an enclosure or a set of enclosures making up a logical enclosure.

Logical interconnectDefinition: A single administrative entity that consists of the configuration for a set of interconnects in a single enclosure or a frame link topology.

Logical interconnect groupDefinition: Acts as a recipe for creating a group that represents the available networks, uplink sets, and interconnect settings for a set of physical interconnects in a set of enclosures.

Enclosure group: An enclosure group in HPE Synergy defines the configuration settings, including logical interconnect groups and firmware baselines, for a set of physical enclosures.

Logical enclosure: A logical enclosure in HPE Synergy is a resource that includes one or more physical enclosures and their associated logical interconnects, providing a consistent configuration for those enclosures.

Logical interconnect: A logical interconnect represents a set of interconnects within an enclosure, managed as a single entity. It includes the configuration of the interconnects and their connections.

Logical interconnect group: A logical interconnect group (LIG) defines the network configuration, including available networks, uplink sets, and interconnect settings, that can be applied to multiple enclosures.

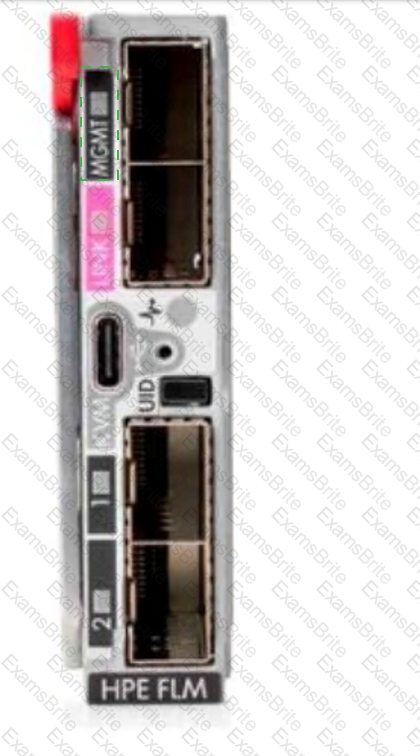

The port labeled "MGMT" (Management) in the upper right section of the HPE Frame Link Module (FLM) is the correct port used to include an HPE Synergy frame in the management ring. This port is crucial for linking the frame into the management network of the Synergy infrastructure.

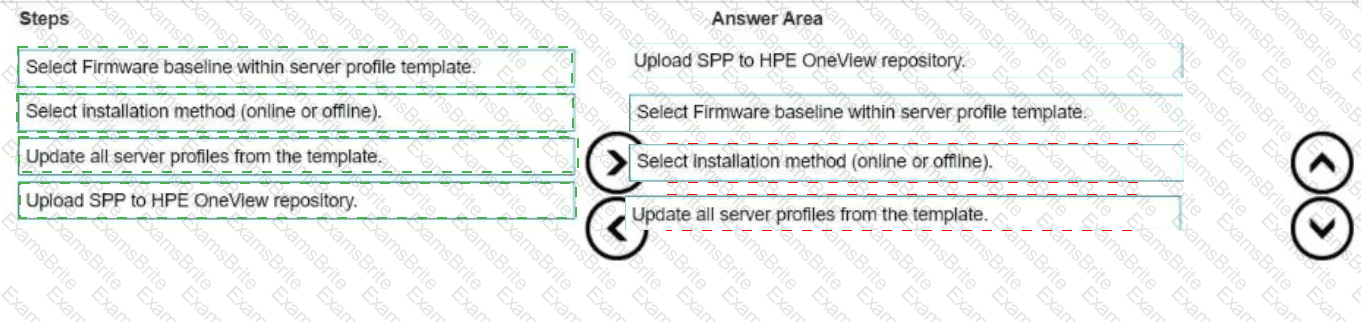

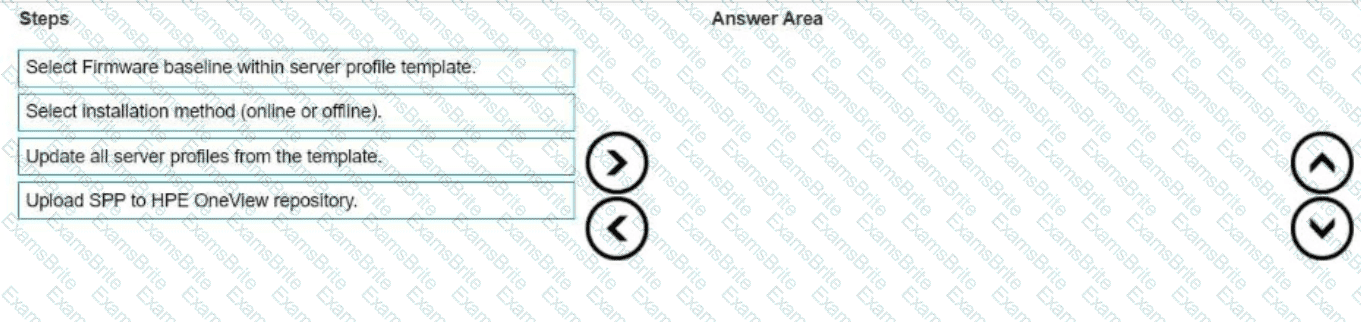

To update the firmware for the HPE Synergy 480 Gen 10 compute modules with a server profile assigned from a server profile template, the steps should be performed in the following order:

Upload SPP to HPE OneView repository.(First, the Service Pack for ProLiant (SPP) containing the firmware updates must be uploaded to the HPE OneView repository.)

Select Firmware baseline within server profile template.(Next, you need to select the desired firmware baseline in the server profile template.)

Select installation method (online or offline).(Choose whether the firmware updates will be installed online or offline.)

Update all server profiles from the template.(Finally, update all server profiles from the modified template to apply the firmware updates to the compute modules.)

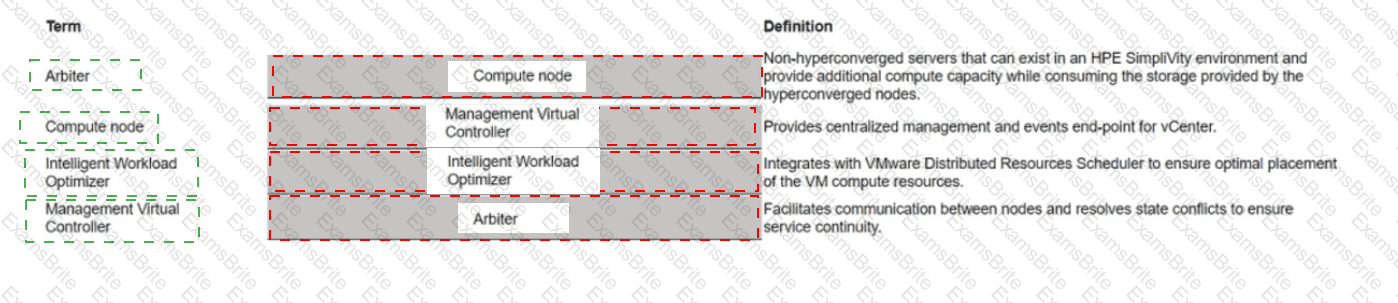

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

Arbiter Definition: Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute node Definition: Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Intelligent Workload Optimizer Definition: Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Management Virtual Controller Definition: Provides centralized management and events end-point for vCenter.

Arbiter: The Arbiter in an HPE SimpliVity environment is responsible for ensuring communication between nodes and resolving any state conflicts, which is crucial for maintaining service continuity.

Compute node: In an HPE SimpliVity environment, a compute node refers to non-hyperconverged servers that provide additional compute capacity while utilizing the storage from hyperconverged nodes.

Intelligent Workload Optimizer: This component integrates with VMware's Distributed Resources Scheduler (DRS) to optimize the placement of virtual machine (VM) compute resources, ensuring they are efficiently distributed across the environment.

Management Virtual Controller: This controller provides centralized management and serves as the events end-point for vCenter, allowing for streamlined management and monitoring of the SimpliVity environment.

The area to check for the HPE OneView SSO certificate is under Security, then HPE SSO.

Here's why:

Security: This section deals with all security-related settings, including certificates.

HPE SSO: This stands for "Single Sign-On" and is the specific technology that HPE OneView uses for integrated authentication. The certificate will be listed here if it's properly applied.

To get to this section, you would click on "Security" in the left-hand navigation menu, and then "HPE SSO" in the main content area.

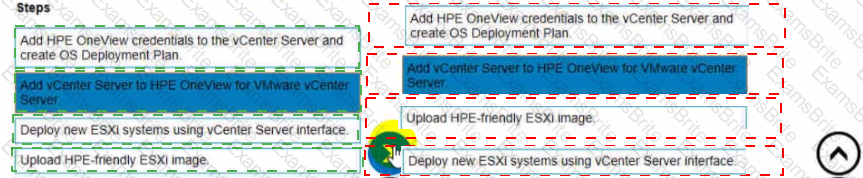

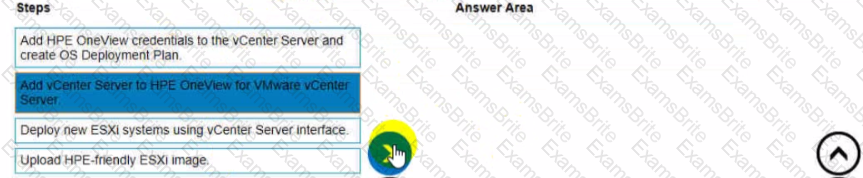

To configure HPE OneView for VMware vCenter Server to deploy ESXi systems, follow these steps in the correct order:

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server.

Upload HPE-friendly ESXi image.

Deploy new ESXi systems using vCenter Server interface.

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan: Integrate HPE OneView with vCenter Server by adding the necessary credentials and setting up the OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server: Ensure that vCenter Server is added to HPE OneView for VMware vCenter Server to enable communication and management.

Upload HPE-friendly ESXi image: Upload an ESXi image that is optimized for HPE hardware to the vCenter Server for use in the deployment process.

Deploy new ESXi systems using vCenter Server interface: Use the vCenter Server interface to deploy new ESXi systems based on the created server profile template and the uploaded ESXi image.

These steps ensure a seamless deployment and management of ESXi systems using HPE OneView integrated with VMware vCenter Server.

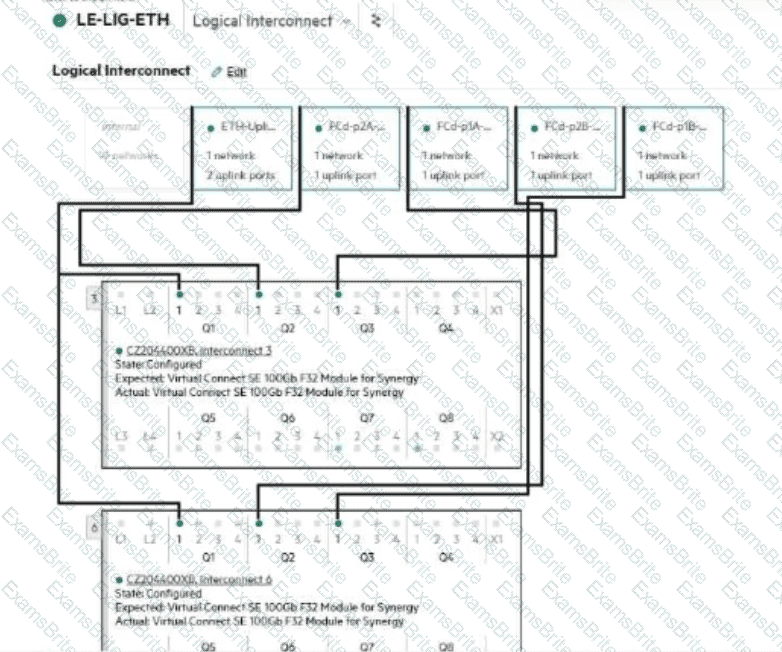

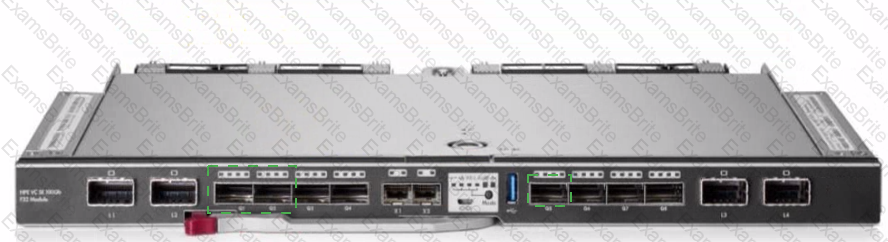

The QSFP+ ports (Q1 and Q2) on the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy can be used to connect satellite modules. These ports are designed to handle high-speed connectivity required for linking additional frames and expanding the Synergy infrastructure.
