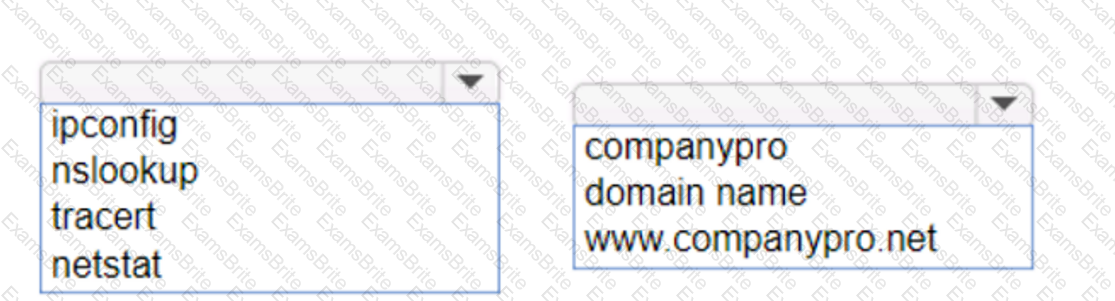

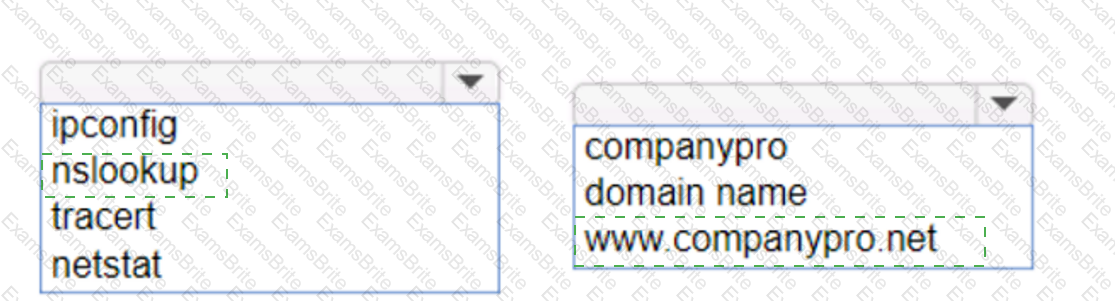

To list the IPv4 addresses associated with the host name www.companypro.net, you should use the following command:

nslookup www.companypro.net

This command will query the DNS servers to find the IP address associated with the hostname provided.If you want to ensure that it returns the IPv4 address, you can specify the-type=Aoption, which stands for Address records that hold IPv4 addresses1. However, thenslookupcommand by default should return the IPv4 address if available.

To list the IPv4 addresses associated with the host namewww.companypro.net , you should use thenslookupcommand.

Command: nslookup

Target:www.companypro.net

So, the completed command is:

nslookupwww.companypro.net

nslookup: This command is used to query the Domain Name System (DNS) to obtain domain name or IP address mapping or for any other specific DNS record.

www.companypro.net : This is the domain name you want to query to obtain its associated IP addresses.

References:

Using nslookup: nslookup Command Guide

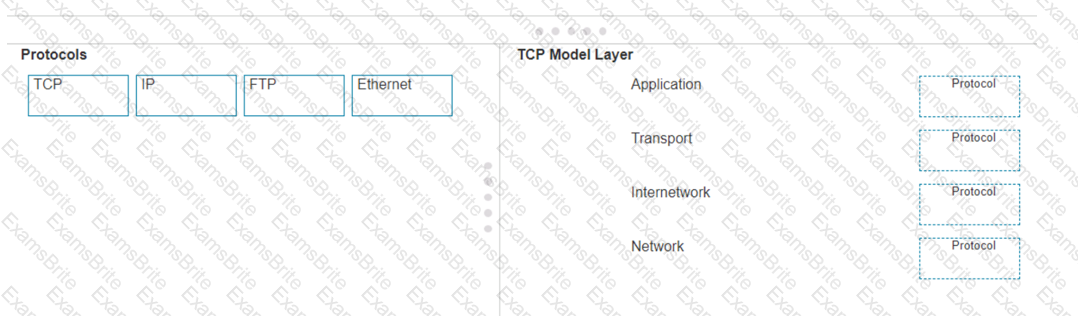

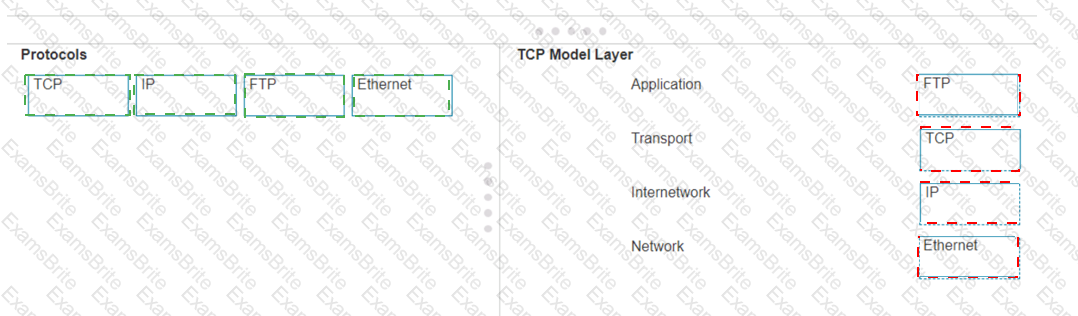

Here’s how each protocol aligns with the correct TCP/IP model layer:

TCP (Transmission Control Protocol): This protocol belongs to theTransportlayer, which is responsible for providing communication between applications on different hosts1.

IP (Internet Protocol): IP is part of theInternetworklayer, which is tasked with routing packets across network boundaries to their destination1.

FTP (File Transfer Protocol): FTP operates at theApplicationlayer, which supports application and end-user processes.It is used for transferring files over the network1.

Ethernet: While not a protocol within the TCP/IP stack, Ethernet is associated with theNetwork Interfacelayer, which corresponds to the link layer of the TCP/IP model and is responsible for the physical transmission of data1.

The TCP/IP model layers are designed to work collaboratively to transmit data from one layer to another, with each layer having specific protocols that perform functions necessary for the data transmission process1.

TCP:

TCP Model Layer: Transport

Explanation: The Transport layer is responsible for end-to-end communication and error handling. TCP (Transmission Control Protocol) operates at this layer to provide reliable, ordered, and error-checked delivery of data.

IP:

TCP Model Layer: Internetwork

Explanation: The Internetwork layer, also known as the Internet layer, is responsible for logical addressing and routing. IP (Internet Protocol) operates at this layer to route packets across networks.

FTP:

TCP Model Layer: Application

Explanation: The Application layer provides network services to applications. FTP (File Transfer Protocol) operates at this layer to transfer files between computers over a network.

Ethernet:

TCP Model Layer: Network

Explanation: The Network layer, also known as the Link layer in the TCP/IP model, is responsible for physical addressing and access to thephysical medium. Ethernet operates at this layer to provide the physical and data link functions.

Transport Layer: This layer is responsible for providing communication services directly to the application processes running on different hosts. TCP is a core protocol in this layer.

Internetwork Layer: This layer is responsible for logical addressing, routing, and packet forwarding. IP is the primary protocol for this layer.

Application Layer: This layer interfaces directly with application processes and provides common network services. FTP is an example of a protocol operating in this layer.

Network Layer: In the TCP/IP model, this layer includes both the data link and physical layers of the OSI model. Ethernet is a protocol used in this layer to define network standards and communication protocols at the data link and physical levels.

References:

TCP/IP Model Overview: Cisco TCP/IP Model

Understanding the TCP/IP Model: TCP/IP Layers

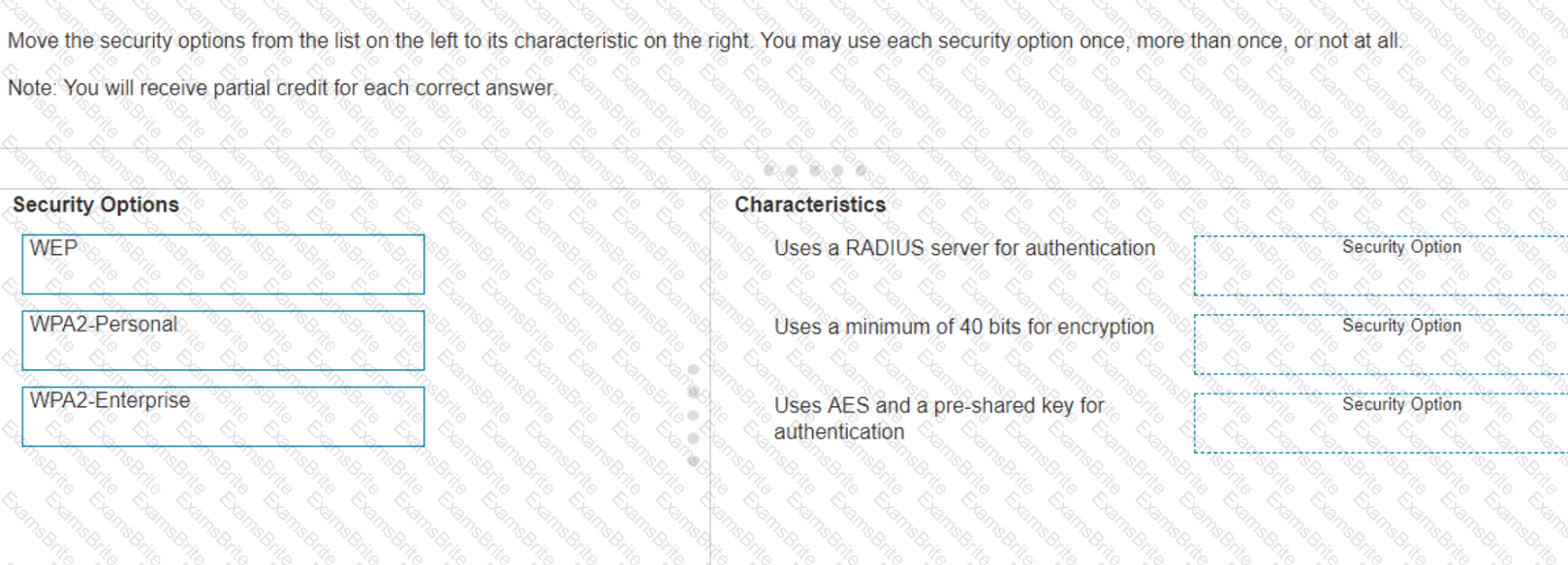

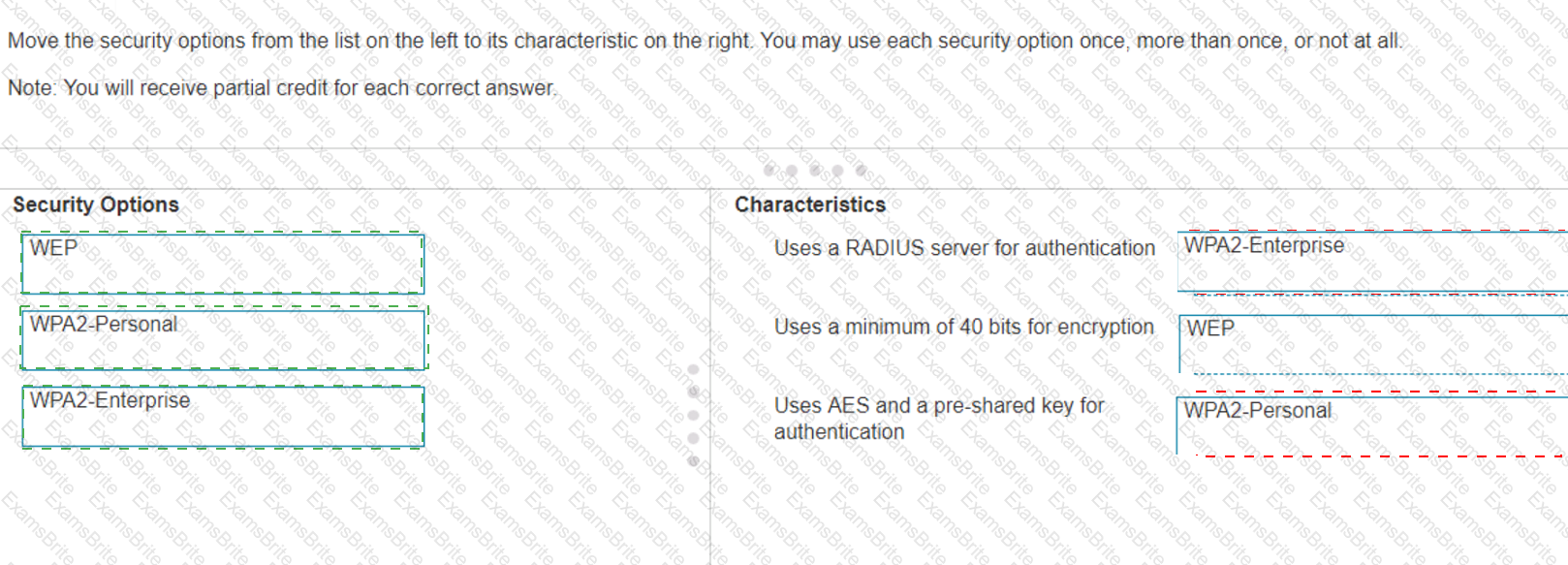

The correct matching of the security options to their characteristics is as follows:

WPA2-Enterprise: Uses a RADIUS server for authentication

WEP: Uses a minimum of 40 bits for encryption

WPA2-Personal: Uses AES and a pre-shared key for authentication

Here’s why each security option matches the characteristic:

WPA2-Enterpriseuses a RADIUS server for authentication, which provides centralized Authentication, Authorization, and Accounting (AAA) management for users who connect and use a network service.

WEP (Wired Equivalent Privacy)is an outdated security protocol that uses a minimum of 40 bits for encryption (and up to 104 bits), which is relatively weak by today’s standards.

WPA2-Personal(Wi-Fi Protected Access 2 - Personal) uses the Advanced Encryption Standard (AES) for encryption and a pre-shared key (PSK) for authentication, which is shared among users to access the network.

These security options are essential for protecting wireless networks from unauthorized access and ensuring data privacy.

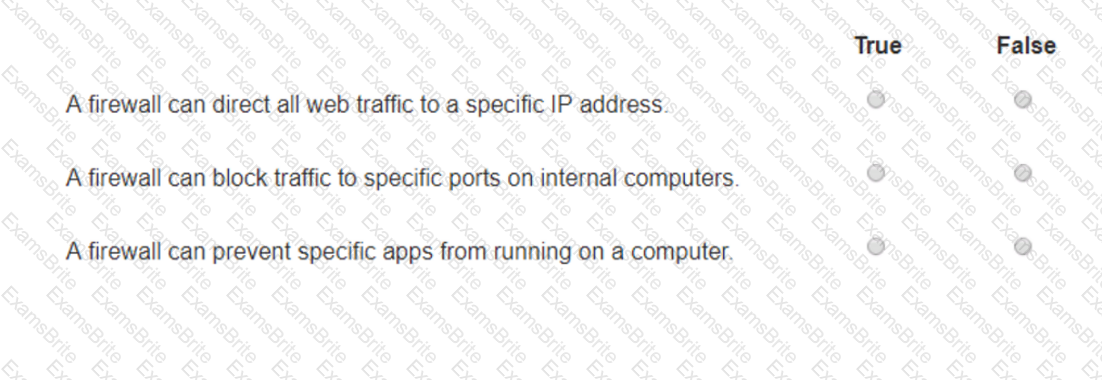

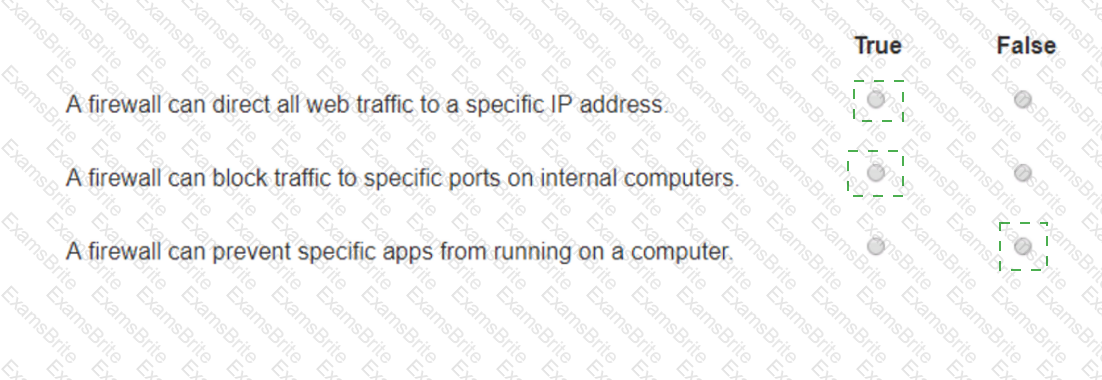

A firewall can direct all web traffic to a specific IP address.

True: Firewalls can be configured to perform Network Address Translation (NAT) and port forwarding, which can direct all web traffic (typically on port 80 and 443) to a specific internal IP address.

A firewall can block traffic to specific ports on internal computers.

True: Firewalls can be configured with access control lists (ACLs) or rules to block traffic to specific ports on internal computers, enhancing security by restricting unwanted or harmful traffic.

A firewall can prevent specific apps from running on a computer.

False: Firewalls typically control traffic flow and do not prevent specific applications from running on a computer. Application control is usually managed by endpoint security software or application control systems.

Directing Web Traffic: Firewalls can manage traffic redirection using NAT and port forwarding rules to route web traffic to designated servers or devices within the network.

Blocking Specific Ports: Firewalls can enforce security policies by blocking or allowing traffic based on port numbers, ensuring that only permitted traffic reaches internal systems.

Application Control: While firewalls manage network traffic, preventing applications from running typically requires software specifically designed for endpoint protection and application management.

References:

Understanding Firewalls: Firewall Capabilities

Network Security Best Practices: Network Security Guide

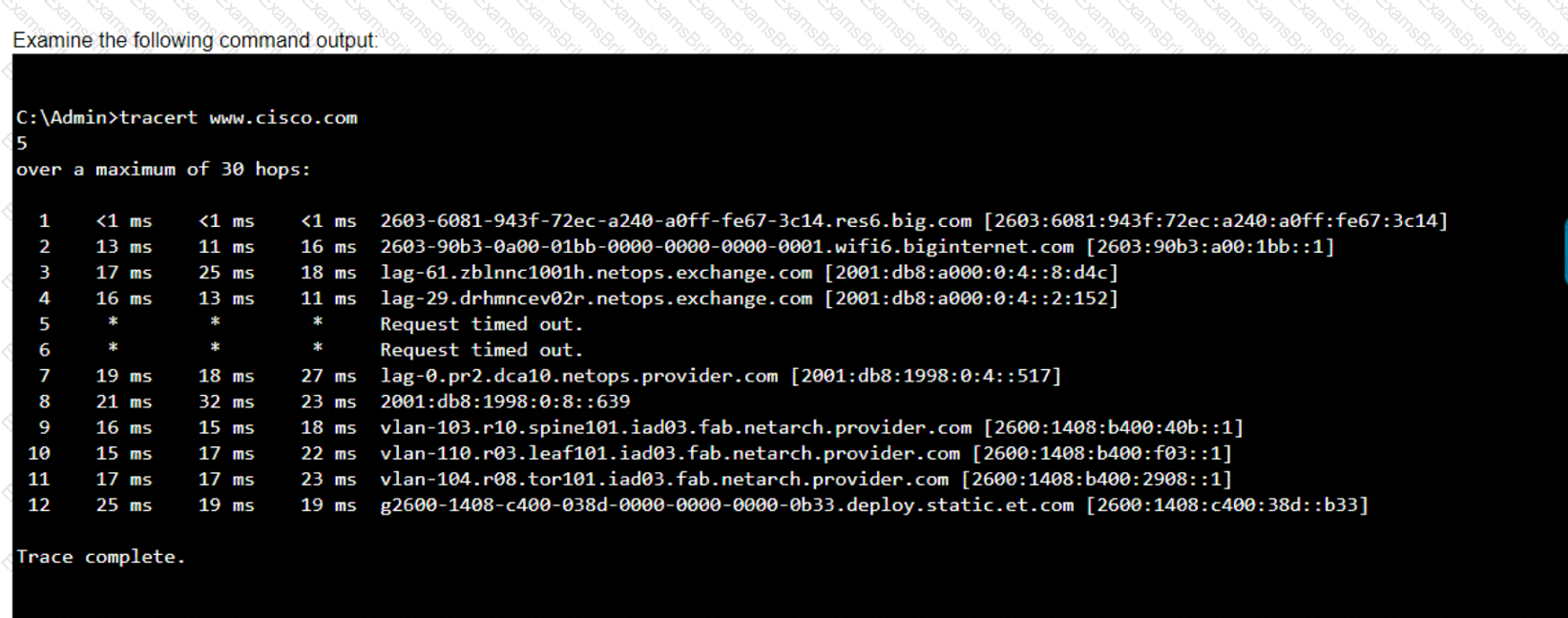

•Statement A: "The trace successfully reached the www.cisco.com server." This is true as indicated by the "Trace complete" message at the end, showing that the trace has reached its destination.

•Statement C: "The IPv6 address associated with the www.cisco.com server is 2600:1408:c400:38d::b33." This is true because the final hop in the trace, which is the destination, has this IPv6 address.

•Statement B: "The trace failed after the fourth hop." This is incorrect as the trace continues beyond the fourth hop, despite some intermediate timeouts.

•Statement D: "The routers at hops 5 and 6 are offline." This is not necessarily true. The routers might be configured to not respond to traceroute requests.

•Statement E: "The device sending the trace has IPv6 address 2600:1408:c400:38d::b33." This is incorrect; this address belongs to the destination server, not the sender.

References:

•Understanding Traceroute: Traceroute Guide
