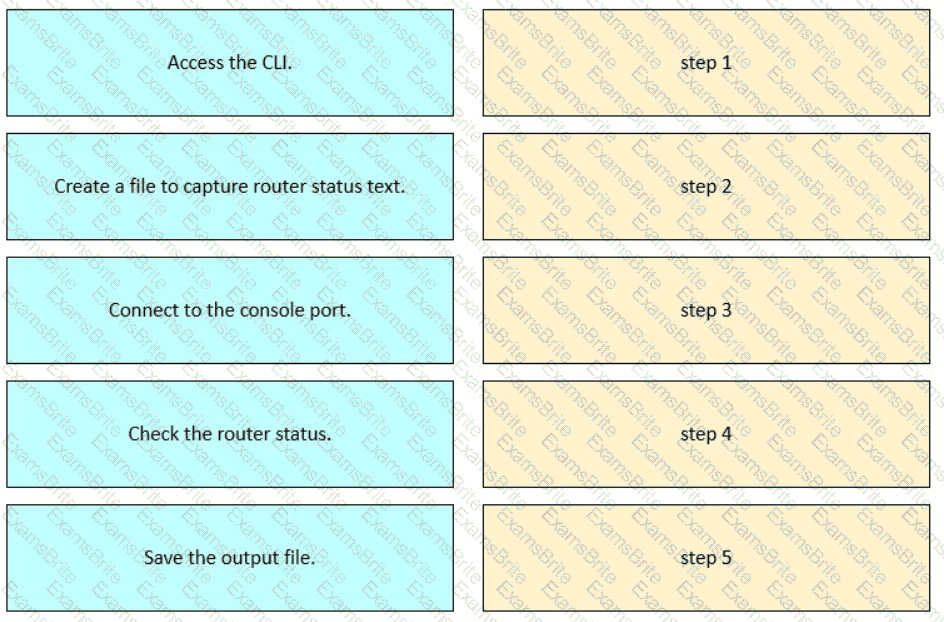

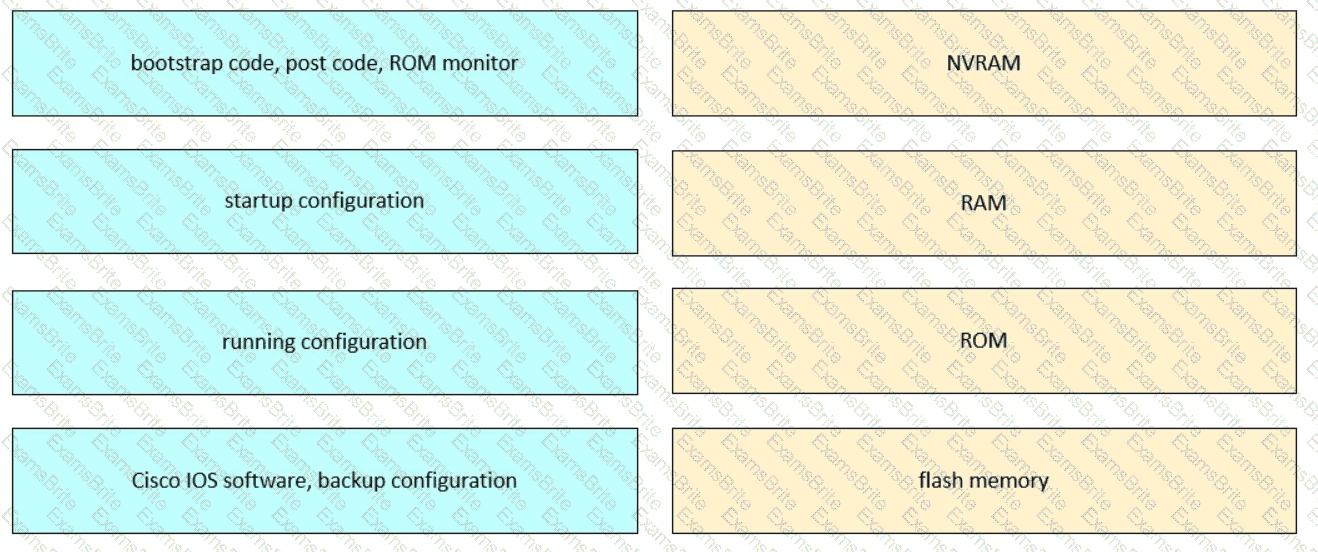

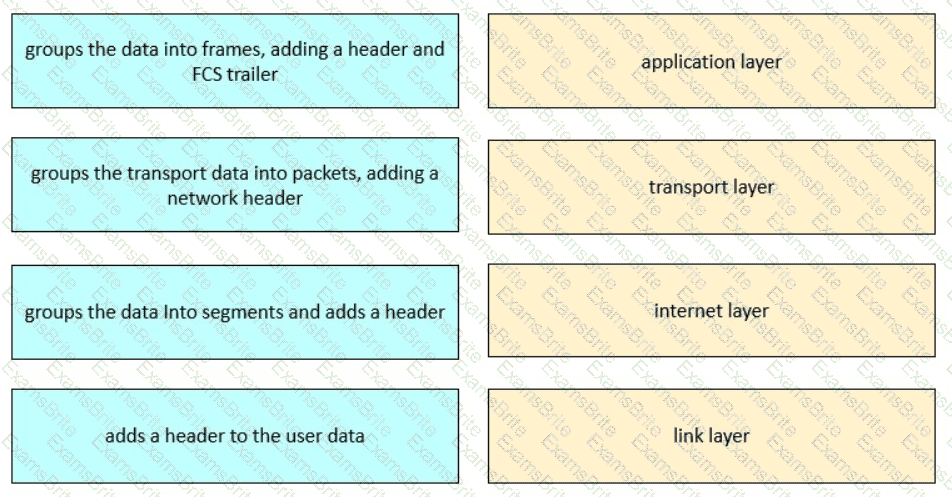

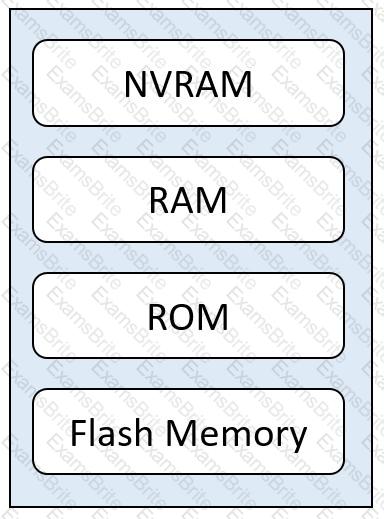

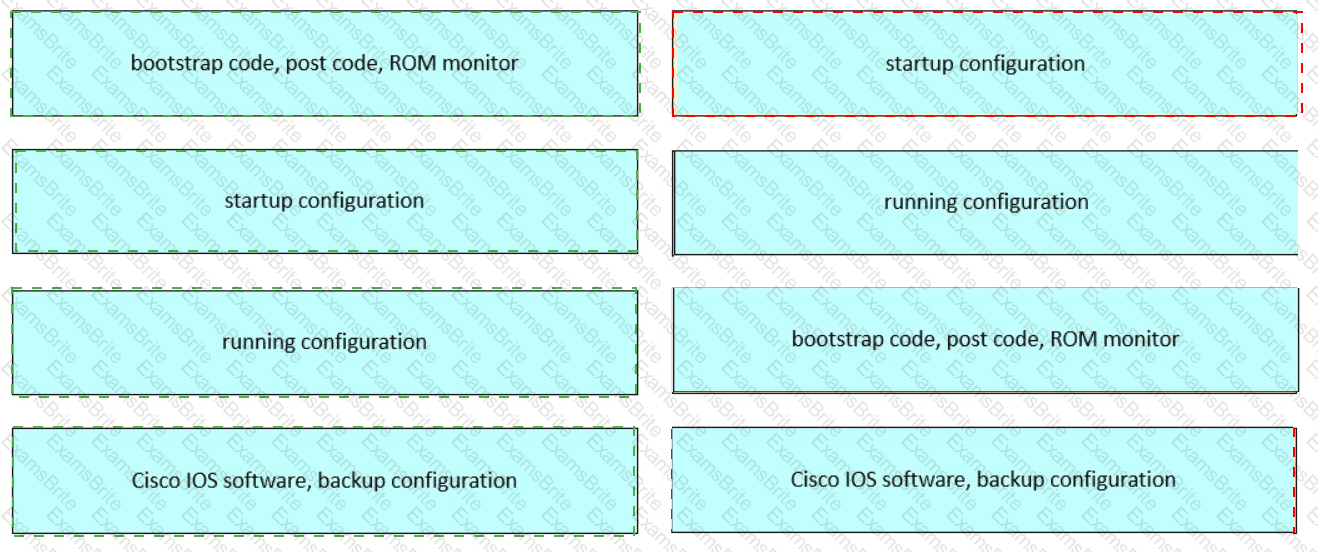

NVRAM → Startup configuration

RAM → Running configuration

ROM → Bootstrap code, POST code, ROM monitor

Flash memory → Cisco IOS software, backup configuration

Each memory type in a Cisco device serves a specific function in the boot process and runtime operation. NVRAM retains configuration across reboots, RAM is volatile and holds active configs, ROM handles initial boot tasks, and flash stores the operating system.

This content is covered thoroughly in"Cisco Equipment and Related Hardware"in the FLDTEC curriculum. Here's the breakdown:

ROM (Read-Only Memory)

Stores bootstrap code, POST (Power-On Self-Test), and ROM Monitor.

These are essential for the device’s initial power-on operations and recovery modes.

NVRAM (Non-Volatile RAM)

Holds thestartup configuration file, which is loaded during the boot process.

Content remains intact after a reboot or power cycle.

RAM (Random Access Memory)

Stores therunning configurationand current operational state of the router or switch.

Also used for routing tables, ARPcache, and packet buffers.

Data is lost when the device is powered off or rebooted.

Flash Memory

Contains theCisco IOS image, system files, and can storebackup configurations.

It is a non-volatile storage, so it retains data after reboots.

In theInfrastructure as a Service (IaaS)model, the cloud provider is responsible for managing and maintaining the underlying infrastructure components, including:

Networking: The cloud provider handles all aspects of network configuration, hardware, and virtual networking.

Storage: The cloud provider supplies and manages the physical and virtual storage infrastructure required to support the consumer’s data needs.

The customer is responsible for managing:

Operating Systems

Applications

Data

This model offers flexibility while shifting infrastructure maintenance responsibilities to the service provider.

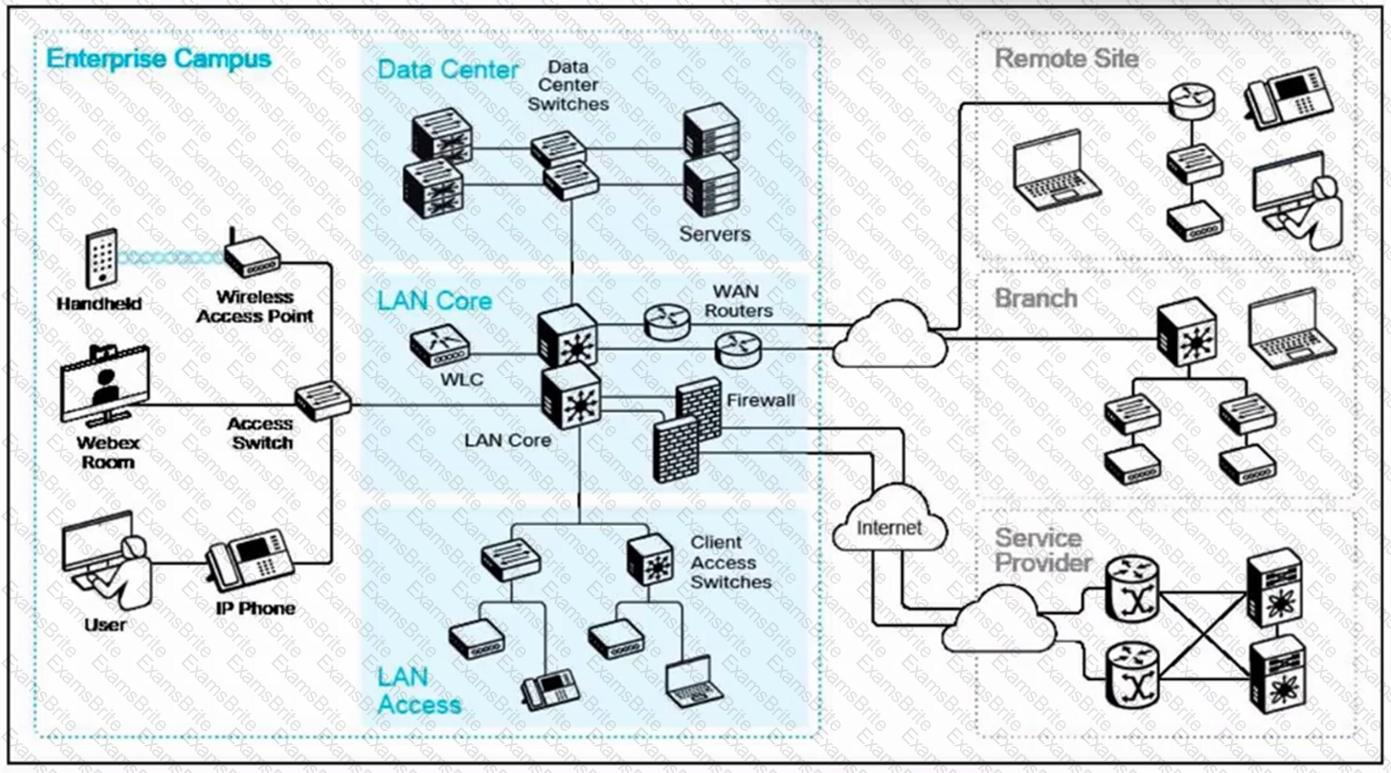

In enterprise networking, remote sites or branch offices connect to the central campus network using:​

WAN Links:These are dedicated communication paths that connect geographically dispersed networks. WAN links can be leased lines, MPLS circuits, or other forms of long-distance connectivity that facilitate reliable data transmission between remote sites and the main campus.​

IPsec VPN Tunnels:Internet Protocol Security (IPsec) VPNs provide secure, encrypted tunnels over the public internet, allowing remote sites to connect to the enterprise network securely. This method is cost-effective and widely used for connecting branch offices to the central network infrastructure.​

Access layer switches (Option A) and LAN core switches (Option E) are components within a local network and do not facilitate remote connectivity. Ad hoc Wi-Fi networks (Option D) are temporary and lack the security and reliability required for enterprise-level remote connections.​

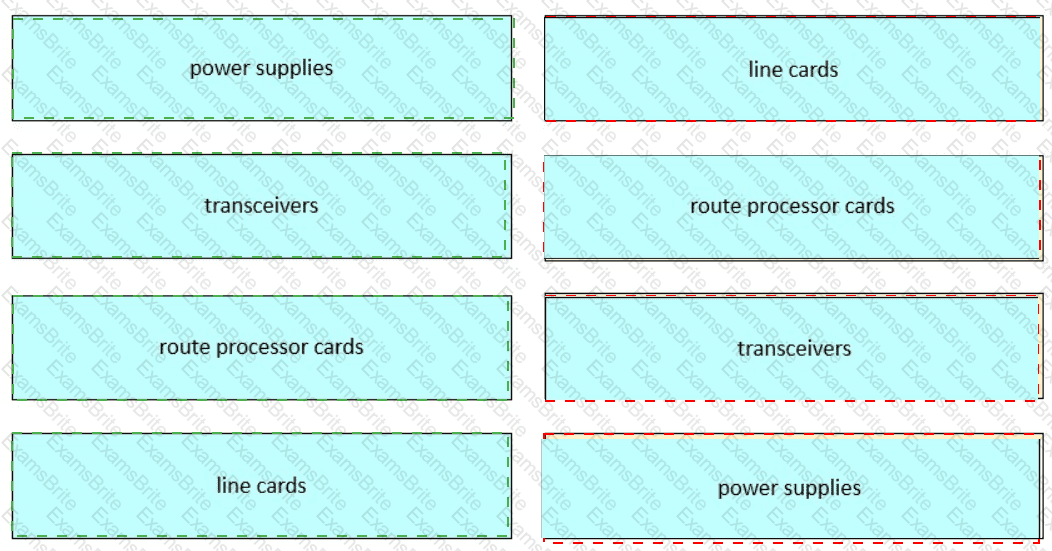

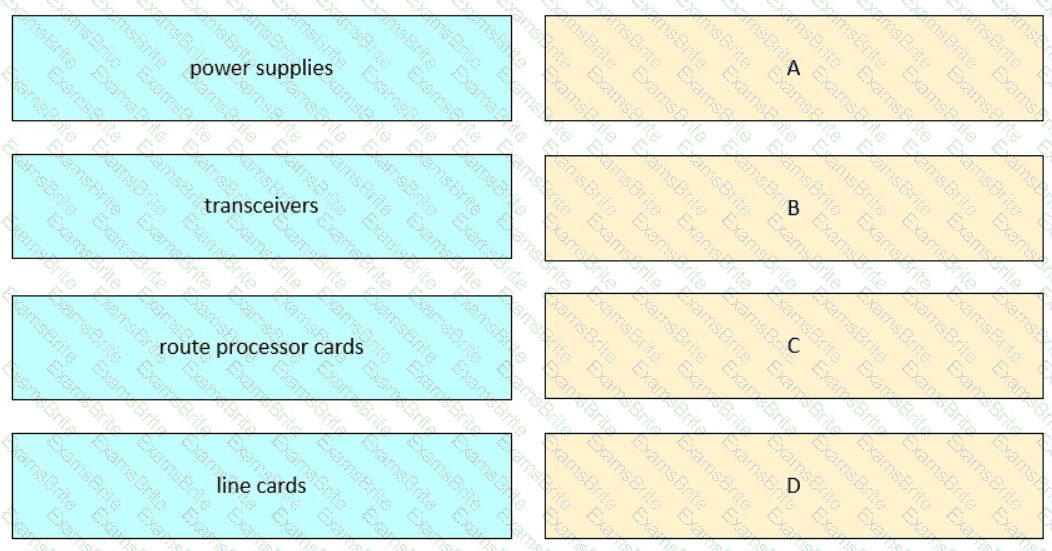

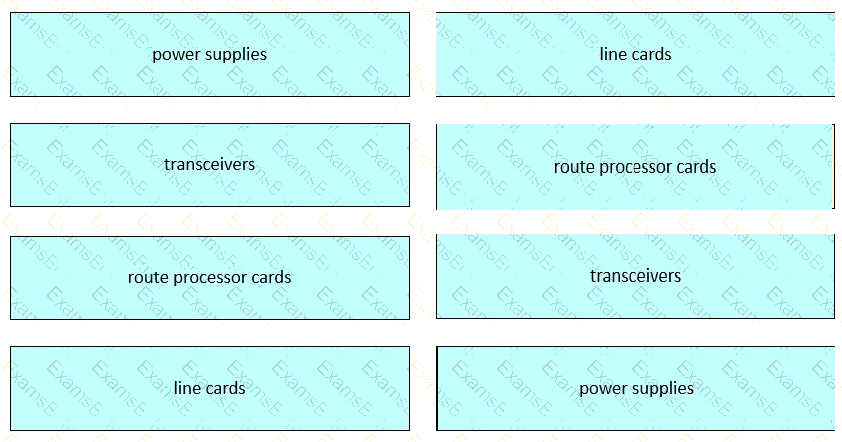

A → Line cards

Provide the physicalinterfaces for network connectivity.

B → Route processor cards

Manage routing functions and system control.

C → Transceivers

Installed in the ports of line cards for optical/electrical signal transmission.

D → Power supplies

Provide power to themodular system and are hot-swappable.

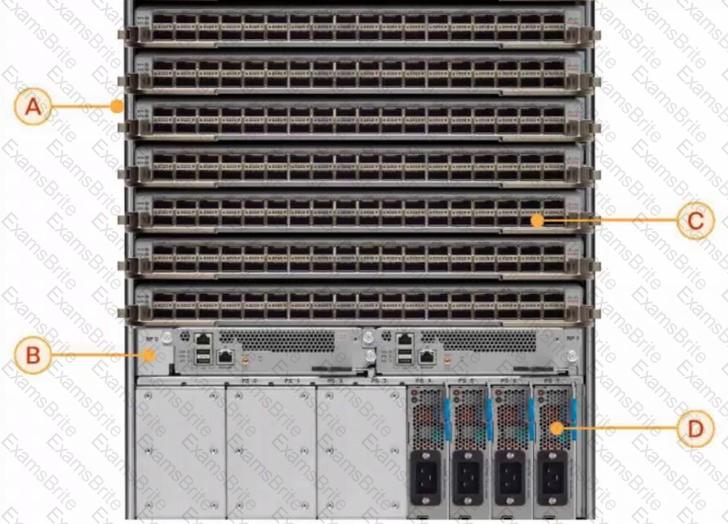

Cisco'sNCS 5500 Seriesis designed for service provider and data center deployments. The FLDTEC course outlines the layout of FRUs in modular platforms like this one:

A – Line Cards: Located in the upper slots, these modules handle the bulk of switching and forwarding functions.

B – Route Processor Cards (RP Cards): Positioned centrally, these provide management and control plane services for the router.

C – Transceivers: Installed into the line cards, transceivers provide physical connectivity through optical or copper interfaces.

D – Power Supplies: Located in the bottom rear section, these modules provide redundant and hot-swappable power to the chassis.

Recognizing each FRU visually and functionally is critical when performingRMA procedures,component diagnostics, orhardware upgradesin the field.

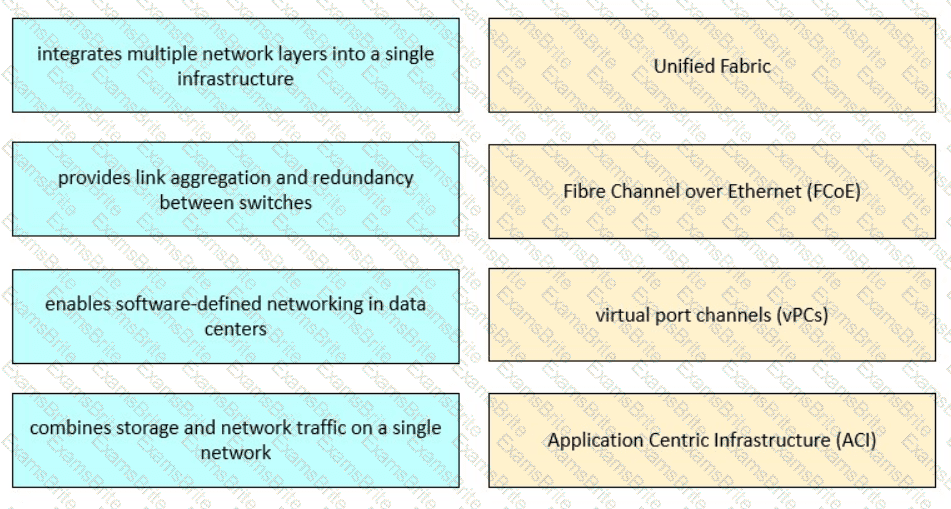

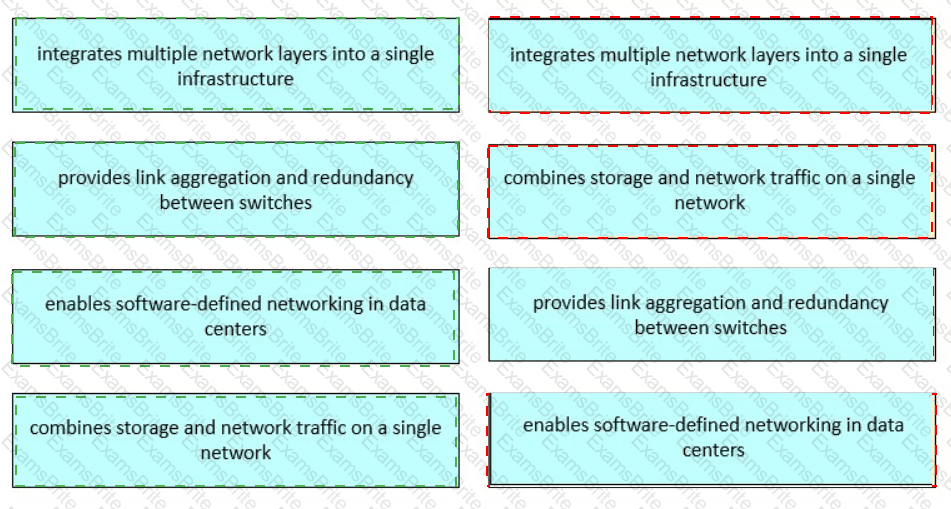

Integrates multiple network layers into a single infrastructure → Unified Fabric

Provides link aggregation and redundancy between switches → Virtual port channels (vPCs)

Enables software-defined networking in data centers → Application Centric Infrastructure (ACI)

Combines storage and network traffic on a single network → Fibre Channel over Ethernet (FCoE)

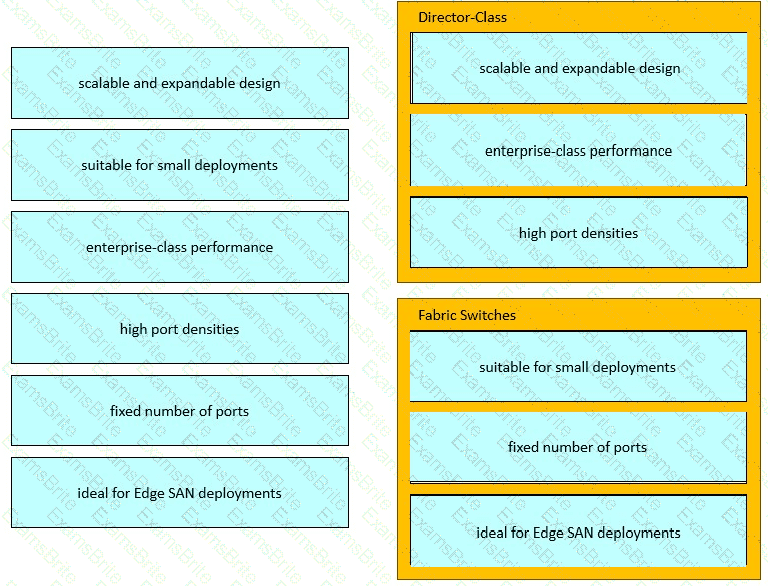

These data center solutions are covered in theFLDTEC courseunder Cisco’s unified data center architecture and switching portfolio:

Unified Fabric:Streamlines Layer 2 and Layer 3 into a single operational model, reducing complexity and enhancing scalability.

vPC (Virtual Port Channel): Allows two Nexus switches to appear as one logical switch, enablingloop-free topologyandactive-active uplinks.

ACI (Application Centric Infrastructure): Cisco’s SDN solution, delivering centralized automation, policy enforcement, and fabric management.

FCoE: Enableslossless Ethernetforstorage (Fibre Channel)traffic to coexist withdatatraffic on the same Ethernet infrastructure.

These technologies are fundamental in modern Cisco-powered data centers tooptimize performance,reduce hardware, andsimplify management.

These components are part of theCisco Collaboration System Architecture (CSA), and are reviewed in theFLDTEC trainingunderCisco Equipment and Collaboration Basics:

Call Control: Managed by services likeCisco Unified Communications Manager (CUCM), it routes and connects calls.

Collaboration Applications: Provide added value services such asvoicemail (Unity),messaging (IM&P), presence, and more.

Edge Devices: IncludeCisco ExpresswayandCUBE(Cisco Unified Border Element), offering secure access and traversal for mobile/remote endpoints.

Conferencing: Powered by platforms likeCisco Meeting ServerorWebex, enabling multi-party conferencing.

Endpoints: Include bothhardware (IP phones, video units)andsoftware (Webex app)that users interact with directly.

In theFLDTEC course, underMaintenance and RMA Procedures, Cisco outlines a specific sequence for bringing up anE-Series server modulein an ISR router. The sequenceensures proper recognition, IOS compatibility, and network readiness:

Power up the router and server: Ensures both components are initialized and POST begins.

Verify that the router recognized the server: Use service-module commands or show platform to confirm server visibility.

Load a compatible Cisco IOS image onto the ISR: The IOS must support the E-Series module to provide integration and configuration functionality.

Connect the server to the network: Establish network connectivity for services, remote access, or deployment.

This structured approach is essential for minimizing errors duringmodular hardware upgrades or RMAsin the field.

In the context ofWide Area Networks (WANs), the key objective is to connect geographically separated networks using service provider infrastructure. The FLDTEC course emphasizes that WAN environments typically involve devices that can handle different physical transmission mediums and protocols.

Modems:

Modulate and demodulate analog signals to digital signals.

Used in WAN environments to connect over analog lines like DSL or leased lines.

Essential for interfacing between digital routers and analog telephone networks.

Optical Fiber Converters:

Also known asmedia converters, they are used to convert electrical signals to optical signals (and vice versa) for fiber transmission.

Common in WAN scenarios where long-distance high-speed transmission over fiber is required.

Incorrect Options:

A. Hubs: Obsolete Layer 1 devices used in LANs, not suitable for WANs.

D. Network Interface Cards (NICs): Used in end devices for LAN connectivity.

E. Wireless Access Points: Typically used in WLANs within local premises, not WAN infrastructure.

This aligns withCisco’s WAN architecture fundamentalsas highlighted in FLDTEC under “Cisco Equipment and Related Hardware.”
