Controller-level custom dashboards in AppDynamics have the flexibility to provide views that aggregate and compare data from different applications on the same Controller, as well as offer a customized view of applications, servers, and database performance data. This capability enables a holistic view of the IT environment, facilitating cross-application insights and the ability to correlate performance across different layers of the technology stack. Such dashboards are invaluable for understanding overarching trends, pinpointing systemic issues, and driving informed decision-making across multiple applications and infrastructure components.

Memory Used% and CPU %Busy are the two KPIs that directly measure server-level resource consumption.

Memory Used% represents the proportion of physical memory currently consumed on the monitored server. A sustained high value can indicate memory pressure, excessive process allocation, insufficient capacity, or conditions that may lead to paging and degraded application performance.

CPU %Busy measures the percentage of processor capacity actively being used. It is a primary indicator of compute-resource utilization and helps identify CPU saturation, processing bottlenecks, or insufficient server capacity. Persistent high CPU utilization may correlate with increased response time, transaction queuing, and reduced throughput.

The remaining options describe availability, application behavior, or transaction performance rather than direct infrastructure-resource consumption. Calls per Minute measures workload volume, Average Response Time measures transaction latency, Availability indicates whether a system or service is reachable, and Application Restarts records lifecycle events.

Relevant CAAPA Study Guide topics include Server Visibility, Infrastructure Monitoring, Hardware Resource Metrics, CPU Utilization, Memory Utilization, and Correlating Server Health with Application Performance.

When a Performance Analyst drills into a call graph, AppDynamics exposes method-level execution details that identify where transaction processing time was consumed. The method name identifies the specific application method invoked within the transaction execution path. Method time in milliseconds shows how much time was attributed to that method, enabling the analyst to isolate expensive code paths, compare parent and child execution time, and determine whether latency originates in application code or a downstream dependency.

The call graph can also display Service Endpoints encountered during transaction processing. Service Endpoints represent independently monitored application services or methods and help the analyst understand how internal service execution contributes to the overall Business Transaction response time.

The Business Transaction name and user-experience classification—such as normal, slow, very slow, stalled, or error—are transaction-snapshot context rather than method-level call-graph drill-down data. They describe the transaction as a whole, while the call graph focuses on the execution sequence and timing of instrumented methods and service interactions.

Relevant CAAPA Study Guide topics include Transaction Snapshots, Call Graph Analysis, Method Execution Time, Service Endpoints, Code-Level Diagnostics, and Business Transaction Troubleshooting.

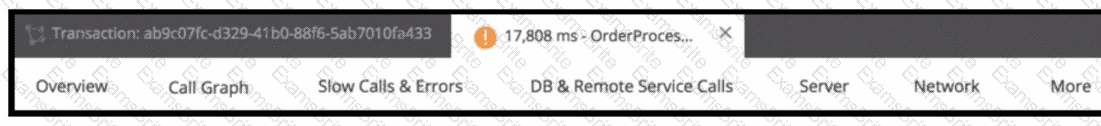

To share snapshot details from the snapshot window in AppDynamics, the options to " Download PDF " and " Export " are typically used. " Download PDF " allows users to generate a PDF report of the snapshot details, providing a convenient and portable format for sharing and review. The " Export " option enables the extraction of snapshot data in various formats (e.g., CSV, XML), facilitating further analysis or sharing with other tools and stakeholders.

Information Points in AppDynamics are custom metrics that track specific data within your applications, such as method invocations or the value of method arguments. These metrics can be utilized in various features of AppDynamics, most notably in " Alerting " and " Custom Dashboards. " Alerting allows you to set up notifications based on the thresholds set for Information Points, ensuring that teams are promptly informed about significant changes or anomalies. Custom Dashboards enable the visualization of Information Points metrics alongside other key performance indicators, providing a comprehensive view of application health and performance tailored to specific needs.

AppDynamics supports HTTP data collectors and method invocation data collectors for enriching transaction snapshots with contextual diagnostic information.

An HTTP data collector captures selected request details associated with a Business Transaction, including URL or URI information, query or form parameters, HTTP headers, and cookies. These values help analysts distinguish transaction variants, correlate user input with application behavior, and identify request-specific causes of latency or errors. Sensitive values should be filtered or excluded through data-collection configuration.

A method invocation data collector captures information from instrumented application methods. Depending on configuration and agent support, it can collect method arguments, object properties, local or instance data, and return values. This provides code-level context when examining transaction snapshots and call graphs.

URN, URI, and SNMP are not separate AppDynamics transaction data-collector categories in this context. URI-related values are handled under HTTP request data collection, while SNMP belongs to network-management protocols rather than Application Agent transaction diagnostics.

Relevant CAAPA topics include Transaction Data Collectors, HTTP Request Data Collection, Method Invocation Data Collection, Transaction Snapshots, Sensitive Data Filtering, and Business Transaction Diagnostics.

Development Level Monitoring is intended for controlled development or diagnostic environments where maximum transaction visibility is more important than minimizing agent overhead. In this mode, the agent captures full call graphs, providing method-level execution detail rather than the reduced or partial call-graph collection associated with normal production monitoring.

The agent also attempts to collect a transaction snapshot for every transaction. “Attempts” is the critical distinction: snapshot creation remains subject to agent safeguards, resource constraints, transaction behavior, and collection limits. Therefore, Development Level Monitoring does not provide an absolute guarantee that every transaction will produce a retained snapshot, making option F incorrect.

Development mode additionally collects more detailed exit-call information for calls to backend systems, improving analysis of downstream databases, services, and other remote dependencies.

The agent does not ignore dev-mode-suspend-cpm. This property is a protective calls-per-minute threshold that can suspend development-mode collection when transaction volume becomes excessive. Relevant CAAPA Study Guide topics include Agent Configuration, Monitoring Levels, Transaction Snapshots, Call Graph Collection, Exit Calls, and Development-Mode Performance Safeguards.

Business Transaction Discovery Sessions are supported for Java and .NET applications. These sessions help a Performance Analyst identify candidate transaction entry points when automatic discovery does not detect a proprietary framework, background process, scheduled task, or other nonstandard execution path.

During a discovery session, the Application Agent observes executed application code and allows the analyst to browse relevant classes and methods. The selected method can then be used to create or refine a Custom Match Rule, establishing a new Business Transaction entry point with appropriate naming and scope.

Java and .NET agents provide the runtime instrumentation and class-method visibility required for this workflow. C++, PHP, and Node.js applications have their own supported monitoring and transaction-detection capabilities, but they do not use the Business Transaction Discovery Session feature referenced in this question.

Discovery sessions should be run for a controlled period while representative application traffic exercises the target code path. The resulting class and method information can then be reviewed before creating a permanent transaction detection rule.

Relevant CAAPA Study Guide topics include Business Transaction Discovery Sessions, Java Agent, .NET Agent, Class and Method Browsing, Custom Match Rules, Entry-Point Detection, and Transaction Naming.

Comprehensive and Detailed Explanation From Cisco AppDynamics Associate Performance Analyst (CAAPA):

Information Points provide method-level performance monitoring for selected application classes and methods without requiring those methods to be defined as Business Transaction entry points. They generate metrics such as Average Response Time, Calls per Minute, and Errors per Minute for the configured method.

Because Information Point response-time metrics are reported to the Controller, a Performance Analyst can compare the method’s current response time against a dynamic or configured baseline. This supports proactive detection of abnormal method performance.

Information Points also measure invocation frequency. Therefore, they can reveal changes in how often a method—such as a cache access method—is called. A sudden increase or decrease in Calls per Minute can indicate altered application behavior, cache inefficiency, reduced traffic, or a code-path change.

Information Points do not directly trigger a transaction snapshot whenever the configured method executes. Snapshot collection is governed by Business Transaction monitoring, diagnostic sessions, and snapshot collection rules. Excluding a specific exception from error detection is handled through error-detection and ignored-exception configuration, not Information Points.

Relevant CAAPA Study Guide topics include Information Points, Method-Level Metrics, Calls per Minute, Average Response Time, Dynamic Baselines, Health Rules, and Error Detection Configuration.

Creating a Transaction Group using the ' Create Group ' action in AppDynamics allows for the aggregation of data from multiple transactions under a single group, facilitating a consolidated view of similar transactions. This differs from defining a Transaction Detection Rule, which typically focuses on identifying and categorizing individual transactions based on specific criteria. Transaction Groups do not change the names of incoming requests nor reduce the number of overall business transactions; instead, they provide a method for organizing and analyzing related transactions collectively, offering a streamlined approach compared to individually configuring Transaction Detection Rules for each transaction.

The Application Flow – Grid View and Application Flow Map provide the fastest dashboard-level methods for demonstrating that a backend dependency is contributing to degraded application performance.

In Grid View, the analyst can locate the backend and review dependency-specific indicators such as average response time, calls per minute, errors, and calls made by upstream tiers. Comparing these values across relevant time ranges makes it straightforward to show that backend latency rose at the same time as application response time.

The Application Flow Map provides the same dependency context visually. Selecting the backend exposes its performance metrics and relationship to the calling tier, allowing the analyst to compare current behavior with an earlier timeframe or baseline and demonstrate the backend’s contribution to end-to-end latency.

Top Business Transactions focuses primarily on transaction-level performance rather than direct backend comparison. Transaction Snapshots provide detailed evidence for individual executions, but they are less suitable for a rapid dashboard-level comparison across timeframes.

Relevant CAAPA topics include Application Dashboard, Flow Map Analysis, Grid View, Backend Performance, Dependency Response Time, and Time-Range Comparison.

To validate a Java Agent configuration, the Performance Analyst should inspect the startup script, controller-info.xml, and relevant environment variables.

The startup script must contain the correct -javaagent argument pointing to the Java Agent JAR. It may also define Java system properties for the Controller host, port, SSL setting, application name, tier name, node name, account credentials, and other agent parameters. Incorrect paths or conflicting -Dappdynamics.* values can prevent registration or cause the agent to report under the wrong entity.

The controller-info.xml file is the Java Agent’s primary configuration file. The analyst should verify Controller connectivity settings, account details, access key, application identity, tier identity, node identity, and SSL configuration.

Environment variables must also be reviewed because containerized and automated deployments commonly provide AppDynamics settings through variables. These values may override or supplement file-based configuration and can explain unexpected registration behavior.

/etc/sysctl.conf contains operating-system kernel parameters and is not a Java Agent configuration source. controller-info.yaml is not the standard Java Agent configuration file.

Relevant CAAPA topics include Java Agent Installation, Agent Registration, Controller Connectivity, controller-info.xml, Java System Properties, Environment Variables, and Application–Tier–Node Naming.
