A customer asks an engineer to develop a framework to configure Cisco services that will be used to replace process of manual device configuration. The engineer plans to use a programmatic interface and must keep these considerations in mind:

• The customer's environment requires the script to authenticate before executing further actions.

• The customer's security requirements mandate the use of HTTPS transport.

• The support stall has limited shell scripting knowledge, so the scripts should be easy to read and write and be serf-documenting.

Which two solutions should be used to meet these requirements? (Choose two.)

An engineer must deploy a Cisco HyperFlex system at two data centers. For redundancy reasons, the setup must achieve data protection in case of an entire site failure. The data must be available on both sites at all times to keep the recovery time objective to a minimum.

Which Cisco HyperFlex deployment model meets these requirements?

A cloud service provider is managing day-2 operations of over 200 blade servers installed in the Cisco UCS environment. This pool of network resources is providing virtual networks to their customers. To successfully operate this environment, frequent changes to vNICs and other operational policies are required across multiple UCS domains. The operations team must streamline these repetitive tasks. Which orchestration tool must be used to meet this requirement?

Which feature provides a sandbox to convert NX-OS CLI commands to REST-based scripts on Cisco Nexus 7700 Series Switches?

A large financial institution hosts all customer data in a critical data center with a single physical location Top management is concerned about the risk of a single-site failure. Dot budget is also an issue, so the network engineering team is working to implement a cost-effective redundancy strategy with a second data center. The new data center must use a three-tier design Identical to the existing data center. Business requirements dictate that all data must always be accessible from anywhere in the world, even It a single site fails. The team purchased two Cisco Nexus 7700 Series Switches and four Catalyst 8000 Series Routers. Which action must the team take to accomplish the goal?

An engineer must connect a Cisco UCS Fabric Interconnect to a storage array using a Fibre Channel protocol. The SAN must be directly connected to the UCS fabric interconnects using ports 1/1 and 1/2. Which fabric interconnect configuration must be used?

An engineer designs a Cisco UCS solution that must provide guaranteed and deterministic bandwidth to a specific server in the environment. The solution must apply to network and storage traffic of C-Series and B-Series servers. Which solution should be included to meet these requirements?

A cloud service provider provisioned four active/active data centers in various locations within the country at 50 miles between each data center. The data centers must provide redundant network infrastructure and always be available to customers.

Which two data center design steps must be used to meet these requirements? (Choose two.)

An ACI deployment must:

Which VRF configuration must be used?

A network architect designs the iSCSI architecture. The requirements are to achieve high performance and a low amount of oversubscription and to minimize latency. Which two actions must be taken to meet these requirements? (Choose two.)

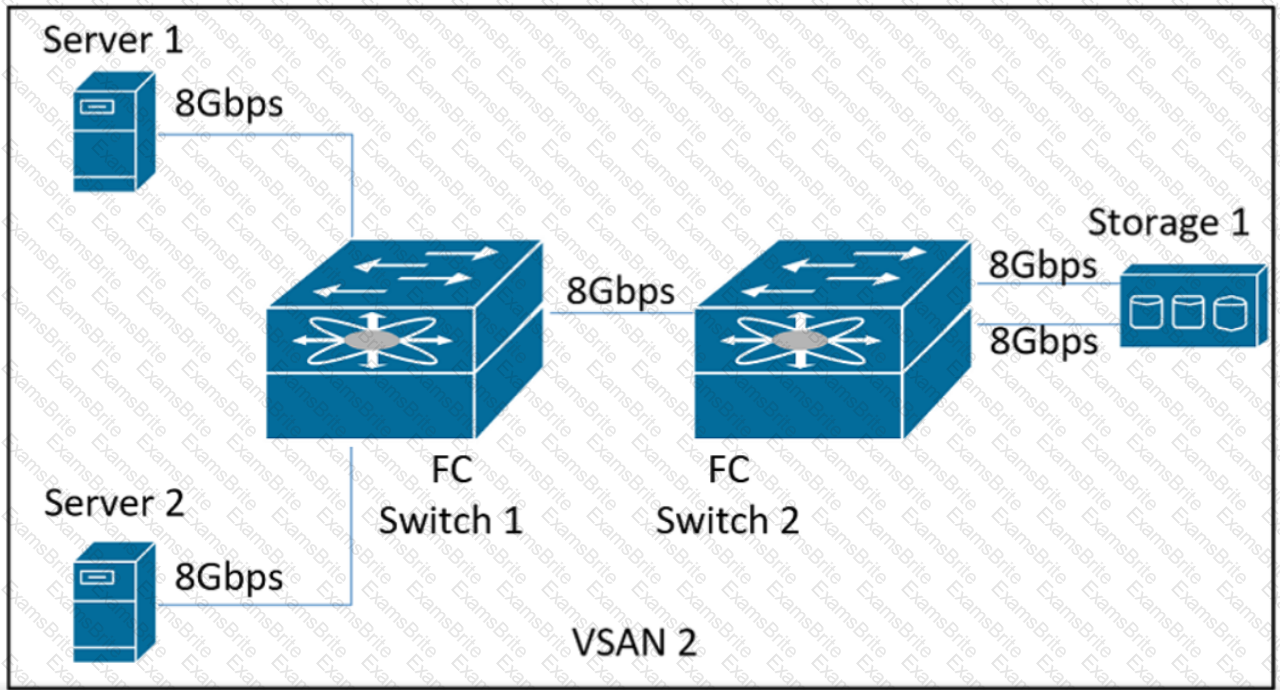

Refer to the exhibit.

A customer runs an Online Transaction Processing (OLTP) application on Server1. The application generates a small number of transactions and requires low storage latency. Server2 is a backup server that performs backups twice a day During the backup window, the OLTP application experiences high-latency spikes that affect the application performance The customer must meet these requirements

•Maintain consistent low I/O latency for the OLTP server.

•Guarantee I/O throughput for the OLTP server during backup time

•Allow the customer to keep the existing hardware.

Which action must be taken to meet these requirements?

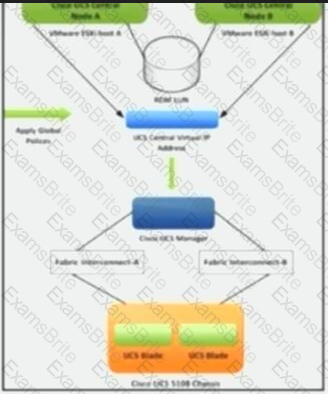

A network engineer is implementing Cisco UCS manager with Cisco UCS center integration. The company is strict security policies require that the logical profile of virtual network adapters and logical addressing assigned to Cisco UCS servers be managed by the Cisco UCS manager. The users must also be prevented from being able to acknowledge pending activities in the Cisco UCS manager. Which two profile must be used to meet these requirements? (Choose two.)

A customer is evaluating a new disaster-recovery solution for their SAN, which is used for noncritical CRM purposes. The SAN is frequently backed up locally at the customer's existing single location, and several hours of data loss can be sustained. The customer wants to retain complete control of the failover process to a separate physical location. Which type of DR is most suitable for the customer?

A Cisco UCS chassis with several blade servers, a pair of IOMs, and a pair of Cisco UCS Fabric Interconnects are installed in a data center.

Which two high-availability architectures are recommended between the IOMs and fabric interconnects? (Choose two.)

An engineer develops a framework for automatic repetitive tasks needed to manage a Cisco Nexus 9000 Series Switch. The engineer plans to use a programmatic interface and must keep these considerations in mind.

•The customer’s environment requires the script to authenticate before executing further actions.

•The customer’s security requirements mandate the use of HTTP transport.

•The automation team is familiar with parsing messages encoded in XML or JSON format.

Which solution meets these requirements?

Which two configurations allow for routing traffic between two VDCs? (Choose two.)

A storage engineer requires a solution that achieves multiple paths between a server and storage array. The design must support complete traffic isolation and support a 50% growth in the next year. Which FCoE solution meets these requirements?

An architect needs vendor-agnostic technology to orchestrate and automate a customer network with scripts. The technology must support running ad-hoc scripts from the CLI and support a deployment of scripts based on a large, readily available set of support libraries. Which technology must the architect choose?

To help automate the vHBA configuration process, a network engineer is configuring vHBA template pairs on UCS The engineer is creating primary and secondary templates to define how vHBAs on a server connect to the SAN. Which fact about the template pair should the engineer consider for Its potential impact on service7

A network architect needs secure access to the organization’s perimeter routers and firewalls. The administrator must access network devices from a remote location that is reachable from the WAN cloud Which action meets these requirements?

Which orchestration tool should be used for the management and analytics of servers across multiple sites?

Which two types of service profile templates does Cisco UCS support? (Choose two.)

A network consultant must design a high availability interconnection of a clustered Cisco UCS Fabric Interconnect toward two upstream Layer 2 switches. The Ethernet interconnection must use all redundant links and have no impact on the STP domain size.

Which connectivity solution must be used?

The user traffic destined to all web servers located in the data center must pass first through a set of firewalls for deep packet inspection. A network architect must design the Cisco Intelligent Traffic Director (ITD) deployment that meets these requirements:

The firewalls are connected to a set of two Cisco Nexus switches to provide stateful handling of traffic.

The ITD service is provided for inside and outside segments of the firewall.

Which ITD deployment mode must be implemented to meet these requirements?

A company data center requires a new disaster recovery solution to host critical services. The solution can sustain several hours of data loss because the services are routinely backed up to an offsite location. Also, the disaster recovery solution must provide 24-hour availability. Due to the strict policy requirements, the company wants to retain complete control of when the failover process occurs. Which solution meets these requirements?

Refer to the exhibit. An engineer working for a service provider with an employee ID: 4800:35-849 must perform the mapping of Fibre Channel LUN targets lo the indicated iSCSI virtual target. Which configuration shows the requited mapping?

A network engineer must design a data center network with four Cisco Nexus 7706 switches. The switches will be installed in primary and secondary data centers in vPC domains. The two data centers must be connected via Layer 2 links and provide the maximum throughput, redundancy, and avoid port-blocking spanning-tree design.

Which deployment model meets these requirements?

A Cisco engineer is developing a custom application that can run natively in Cisco NX-OS on Nexus 9000 and Nexus 3000 platforms For the NX-SDK application to run the engineer enables the NX-SDK feature on the device Then the NX-SDK is imported into the application via an import nx_sdk_py statement. The engineer creates custom CLI commands and defines custom CLI command syntax within the sdkThread function When CLI commands originate from an NX-SDK application what class is this?

An engineer is operating data center environment that hosts data-intensive financial applications. The applications are mostly processing HTTP/HTTPS data with large data segments, which results in a CPU contention due to the significant network processing.

Which set of the Ethernet adapter policies must be selected to resolve the issue?

An engineer must integrate Layer 4 to Layer 7 services within Cisco ACI Fabric. The main requirement is to have a single point of configuration for network elements and firewall policies.

Which action meets these requirements?

An engineer is designing a Cisco UCS Central implementation for an existing Cisco UCS infrastructure, and the current policies must be reused. Which action must the engineer select?

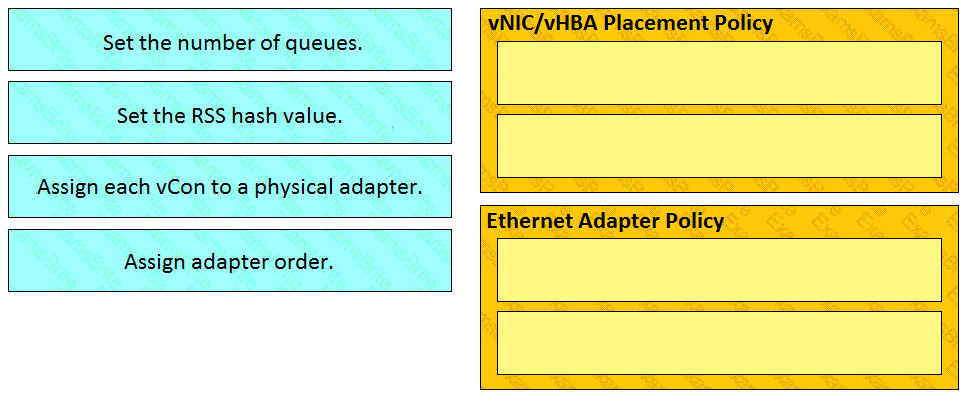

Drag and drop the configurations from the left onto the correct policies on the right.

Which authentication software natively runs within the CLI of Cisco NX-OS devices?

Which approach splits a pair of clustered fabric interconnects into two standalone devices?

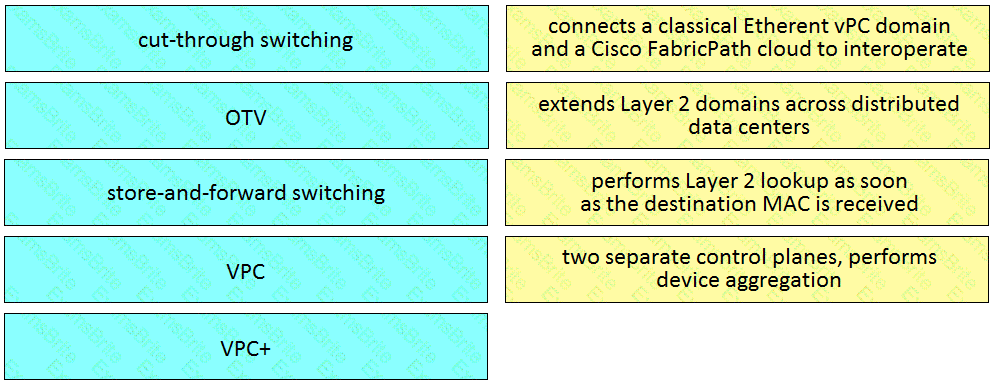

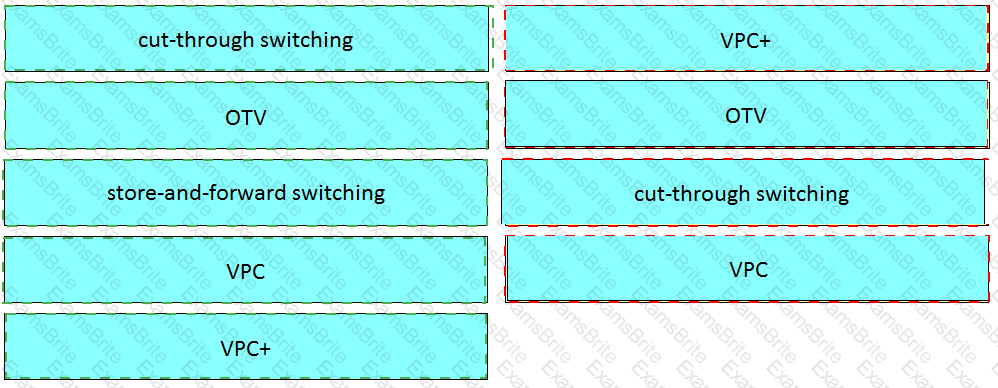

Drag and drop the data center technologies from the left onto the correct descriptions on the right. Not all technologies are used.

An engineer must interconnect two data centers to support the dynamic virtual machine migration. The data centers are currently interconnected using an IPv4 network. However, the data piano encapsulation of the underlay network is expected to change next year. To meet the VM migration requirement, the solution must track MAC route changes, update all other remote devices simultaneously and prevent excessive MAC flapping with broadcast and unicast traffic loops. The company must also use networking equipment from different manufacturers to prevent vendor-locking. Which solution meets these requirements?

An engineer must design a solution with storage reachability between too physical servers and a storage array. The storage array connectivity is to a SAN switch that Is limited to 46 ports. Which topology meets the requirements without adding more MOS switches?

An engineer must connect a storage array directly to an existing Cisco UCS Fabric Interconnect. The customer requires a solution that provides IP-based storage that does not need to be connected through an external switch Also, the operations team wants to have the ability to have direct access to the files stored on the storage array from their Linux hosts. Which storage technology meets these requirements?

An engineer working for a private data center with an employee ID 4947.57 424 designs a storage area network solution The requirement is to apply QoS to ensure that Fibre Channel data traffic for latency-sensitive applications receives higher pnonty over throughput-intensive applications that are used for data warehousing Which two attributes must be used to identify and set the Fibre Channel traffic classes? (Choose two )

The network infrastructure team is beginning to automate routine tasks within the Cisco ACI fabric and is searching for the appropriate solution The solution must not require any additional software installed on the Cisco APIC Networking team members lack automation experience and prefer to use a tool that does not require in-depth programming knowledge Finally configuration within the Cisco ACI fabric is rarely modified or removed Which solution must the team choose?

Refer to the exhibit.

The data center DC1 uses VXLAN technology The company asked a service provider to design another data center called DC2 and stretch EVPN information between the data centers based on the same technology The fabric requires

•endpoint information propagated end-to-end across both data centers

•misconfiguration replicated from DC1 to DC2

Which actions must the design include in DC2 to meet these criteria?

Refer to the exhibit The data center DC1 uses VXLAN technology The company asked a service provider to design another data center called DC2 and stretch EVPN information between the data centers based on the same technology The fabric requires

•endpoint information propagated end-to-end across both data centers

•misconfiguration replicated from DC1 to DC2

Which actions must the design include in DC2 to meet these criteria?

A Cisco UCS instance has four interfaces on a UCS VIC. Where on the fabric interconnect does each interface terminate?

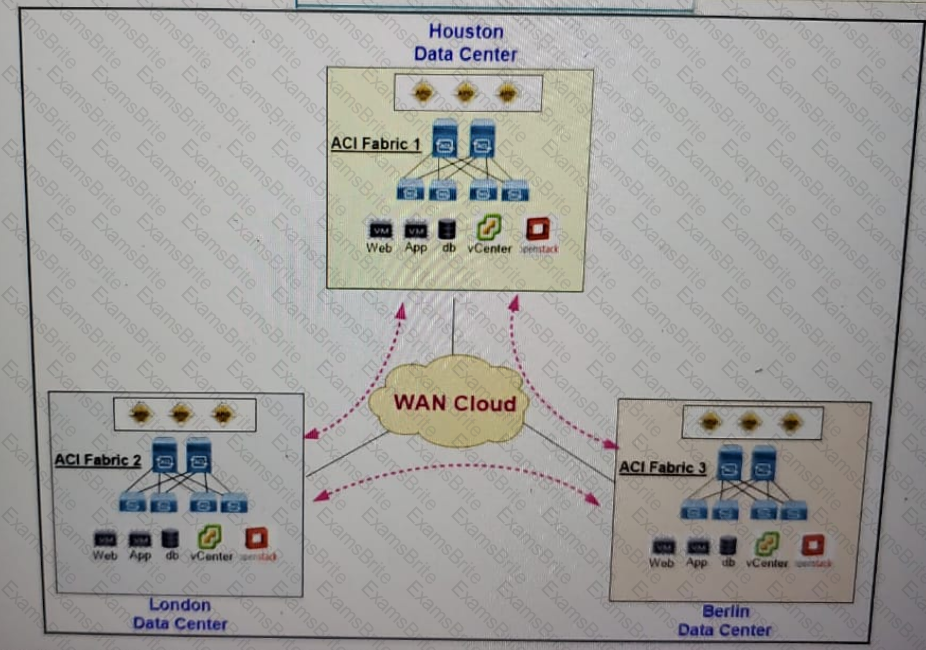

Refer to the exhibit.

A cloud provider service provider deployed three geographically separated Cisco ACI data centers. One of the customers needs to host a clustered application that is spread across the three data centers. The cluster nodes that host the application need a layer 2 topology to communicate with each other. Which Cisco ACI topology design meets these requirements?

An engineer must design the compute portion of a data center environment. The environment includes:

* direct-attach Fibre Channel storage array with four 32 G Fibre Channel ports per controller

* Cisco UCS B-series servers equipped with Cisco UCS IOM 2408 Fabric Extenders

* Cisco 6454 Fabric Interconnects

The fabric interconnects conned to the LAN via 100G ports, the SAN via 32 G Fibre Channel ports, and the IOM 2408 via 10 G ports. Which storage connectivity strategy must the engineer choose?

What are two functions of a Network Services Orchestrator in an NFV environment? (Choose two.)

A company is using Cisco UCS and wants a network orchestration solution to meet these requirements :

centrally manage compute and storage platforms

reduce the time it takes to detect an outage

easily exchange data with TAC to reduce resolution times

The company does not have in-house knowledge about scripting. Which solution must the company choose?

What are two advantages of using Cisco vPC as compared to traditional access layer designs? (Choose two.)

A client in a commercial building Installs a Cisco blade server in the multitenant Cisco UCS blade Infrastructure. To cut operating costs me client’s data center is shared with other organizations. The client asks an engineer prevent third parties from accessing their equipment and from accessing BlOS-related information when booting a server. Which Two policies must be used to meet these requirements? (Choose two.)

Refer to the exhibit. A network engineer must improve high availability within the given UCS infrastructure The engineer configured central nodes A and B in cluster mode to ensure that traffic fails over in the case of a network outage. Which type of redundancy will the cluster configuration provide?

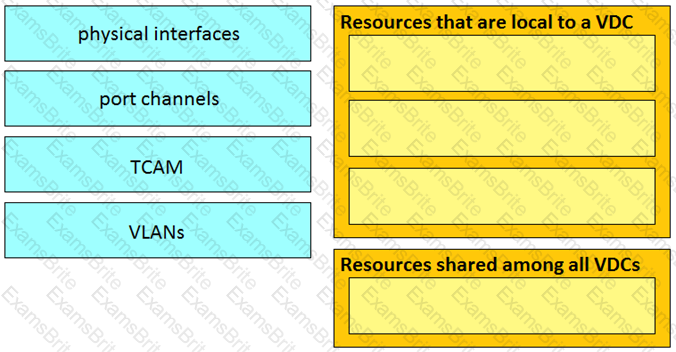

Drag and drop the Cisco Nexus 7000 Series Switch resources from the left onto the correct groups on the right.

An engineer must design a Cisco HyperFlex solution to support a virtualized environment in a single data center location. The design must consider these customer requirements:

a large-scale cluster with eight or more nodes

distributed high-performance file system for virtualized servers

high fault tolerance to multiple node failures

Which action meets these objectives?

A company runs mission -critical infrastructure in a single data center. Due to business growth It plans to open more data center in the coming years. A network engineer is asked to recommend a network technology for data center interconnection that allows scalability and seamless VM mobility while providing maximum security and fault isolation between data center. Which technology must be used to meet these requirements?

An engineer must design a solution to divide the workload across two different data centers and achieve redundancy in case of the failure of either data center Which solution must the engineer choose?

An engineer must interconnect two geographically separated data centers. The service provide offers a Layer 2 metro Ethernet link. The strict security policy requires that the information that is shared between two sites must be sent encrypted. The application deployed between sites requires a line-rate throughput regardless of the packet size and speed. Which solution meets these requirements?

A customer deploys 32 virtualization hosts in a Cisco UCS domain. All hosts run in the same cluster and have Identical hardware specifications. The operating system requires that all firmware is consistent across the hosts (or driver support. The customer must provision additional interfaces later for expandability. Which feature of Cisco UCS Manager meets these requirements?

Where does Cisco UCS handle Fibre Channel traffic failover?

A network design must include a solution to run CLI commands remotely on Cisco Nexus 9000 Series Switches. The customer's security policy requires secure login credentials and an encrypted underlying transport. The command output will be processed using tools that support XML or JSON encoding. Which two components should be included in the design? (Choose two.)

A network engineer is using a Cisco UCS environment connected to a Fibre Channel storage array. The Cisco UCS environment must be connected to an existing SAN network, and several Cisco MDS 9000 Series Switches must be added to increase storage density. The solution must not exhaust the SAN network from the list of available domain IDs after connecting Also, most of the SAN traffic must be mapped from the Cisco UCS blades to a specific group of the fabric interconnect ports Which two features must be deployed to meet these requirements? (Choose

two.)

Which pools are used when a vNIC template is created in Cisco UCS Manager?

What must be configured in Cisco Intersight when Enum is selected as the data typo in a workflow input?

An engineer must choose the World Wide Port Name for the Cisco UCS Fibre Channel virtual host bus adapter.

Which identifier must be used?

A company needs a solution to virtualize their legacy desktop computers. The solution must be highly resilient and able to withstand the loss of a data center site. Each compute node requires a minimum of 20 disk drives.

Which solution meets these requirements?

Refer to the exhibit.

The security team created a new security policy that requires certain types of traffic to be subject to deep packet inspection The traffic types are

•internet traffic to application servers

•internet traffic to corporate users

•partner network traffic to application servers

•partner network traffic to corporate users

Where must the next-generation firewalls be inserted to implement the new policy?

Which protocol prevents fiber failures from causing a Layer 2 loop in a dark fiber DCI?

A storage administrator receives reports of network delays when database software attempts to access the storage array. The virtual machines that host the database software are installed on different rack servers connected to the Cisco UCS Fabric Interconnect domain. The existing SAN switches are connected to the Fabric Interconnects using two 8 Gb port-channel interfaces to connect the storage array. The storage administrator has decided to deploy iSCSI storage with four 10 Gbps interfaces connected to the Cisco UCS Fabric Interconnects.

Which deployment type resolves the problems with storage contention?

What are two advantages of using Cisco vPC over traditional access layer designs? (Choose two.)

The data center aggregation layer that uses IPv4 and IPv6 address space must act as a redundant Layer 3 gateway The solution must support a minimum of 240 virtual groups for an interface The data center aggregation layer hosts network devices from different vendors Which FHRP solution meets these requirements?

An engineer deploys a Cisco UCS environment with the storage array directly attached to the Fabric Interconnects. The operations team mandates that the solution must not require the configuration of Fibre Channel zoning. Which configuration set meets these requirements?

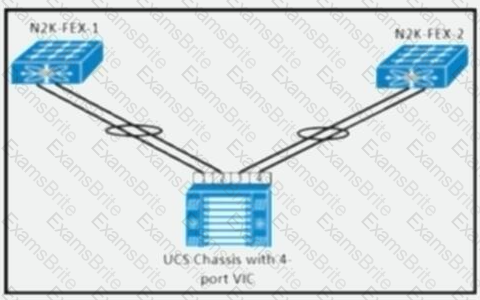

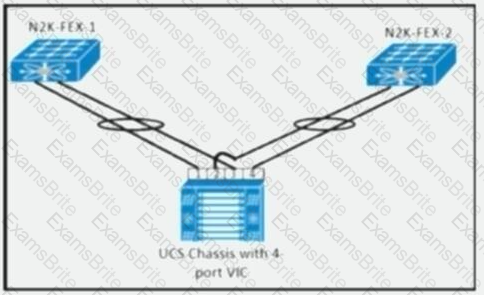

Refer to the exhibit.

An engineer must connect the four-port Cisco UCS VIC adapter to the fabric extenders. Which connectivity implements a port-channel standalone mode?

A)

B)

C)

D)

Which type of encoding is used on 8-Gbps links as compared to 10-Gbps links?

Which type of Cisco Intersight workflow input controls the availability of other specific workflow inputs during the execution of a workflow?

An enterprise is experiencing transmission errors and excessive deploys over their WAN when backing up user workstations. A systems architect decided to resolve the problems by centralizing data storage and processing to within the confines of the data center. Which technology is most suitable to mitigate the issues?

Refer to the exhibit. A Cisco engineer is configuring a customer scenario with 2 x MDS 9000 switches 24 x UCS B200M6 blade servers. UCS 64S4 Fabric Interconnect in end-host mode and 3 x UCS 5108 server chassis with 2408 Fabric Extenders The engineer installs 6 x SQL Server 2019 on all blades and then notices that there are read and write latencies What is the best way to balance the utilization across the shared ports?

A engineer wants to eliminate the manual process of checking the system hardware and firmware against a specified hardware compatibility tool. The tool must be able to manage an extensive list of devices including cisco HyperFlex, MDS, and Nexus switches. The tool must manage hardware in multiple data centers so it should be deployed on public cloud infrastructure. Which tool meets these requirements?

After experiencing traffic disruptions from the failure of a single router, a customer asks an engineer to design a solution that will prevent this from occurring in the future. While examining the customer’s environment, the engineer discovers that the routers are manufactured by a variety of different vendors, and they have varying amounts of CPU and memory resources. Additionally, several of the customer’s applications require the ability to fine-tune the load-balancing parameters between multiple routers. Which solution should be used to meet these requirements?

Which orchestration tool provides a graphical interface to manage LAN and SAN fabrics?

An engineer is configuring a Cisco UCS Service Profile template for an environment that will host Windows servers Some of the servers require access to a Fibre Channel storage network The design requires the server HBA to send the maximum number of commands to a Fibre Channel disk using a single transmission Which action must be taken to meet these requirements?
