Troubleshooting intermittent performance issues is a core component of the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum. When a transaction test using Basic Authentication fails randomly, the engineer must employ a multi-layered diagnostic approach to determine if the fault lies with the credentials, the network path, or the application server.

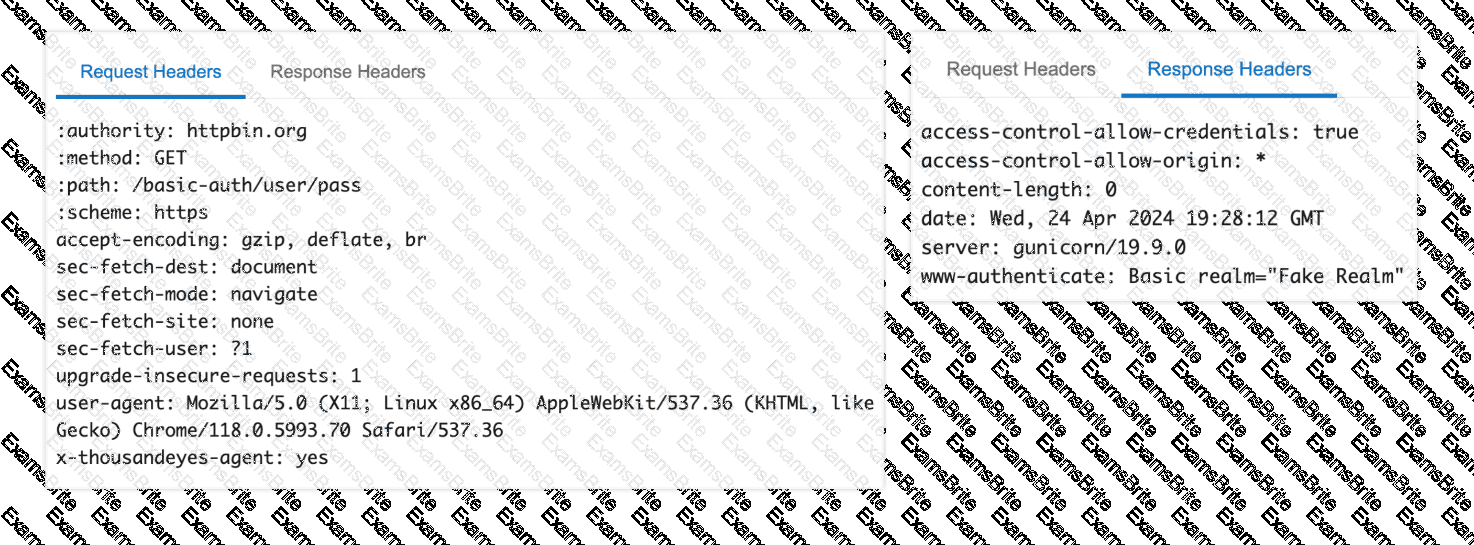

The first step is to verify the correctness of credentials (Option B). Because Basic Authentication encodes credentials in the header, any change in user permissions or account lockouts will trigger immediate failures. Performing manual logins from various geographical locations helps rule out location-based access control lists (ACLs) or regional IdP sync issues.

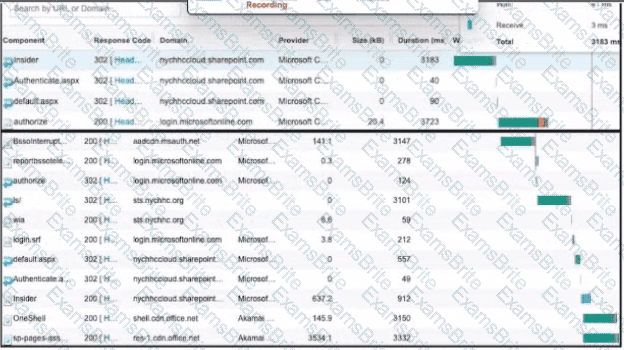

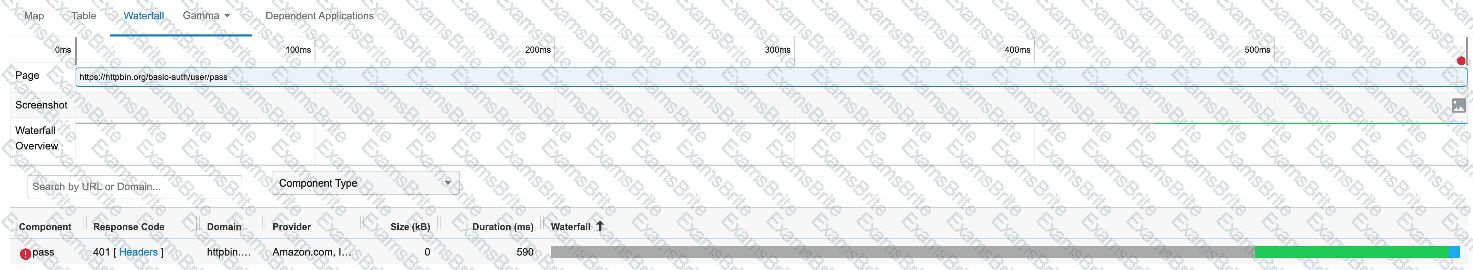

The most data-rich diagnostic step is to analyze the ThousandEyes waterfall charts and HTTP response codes (Option C). The waterfall view allows the engineer to see if the failure happens during the initial 401 Unauthorized challenge or after the credentials are sent. If the charts show high " Wait Time " or 5xx errors, the issue is likely server-side latency or instability. If the " Connect Time " is high, the problem may be network-layer congestion.

Finally, if the telemetry indicates that the network path is healthy but the server is intermittently returning errors or timing out, the engineer should contact the web application vendor (Option D). Providing the vendor with the specific ThousandEyes " Share Link " allows them to see the exact same packet-level and browser-level data, proving that the issue is not with the client ' s network but with the server-side infrastructure. Disabling authentication (Option A) is not a valid troubleshooting step for a test designed specifically to monitor an authenticated workflow.

AppDynamics

Catalyst Center

ThousandEyes

Meraki

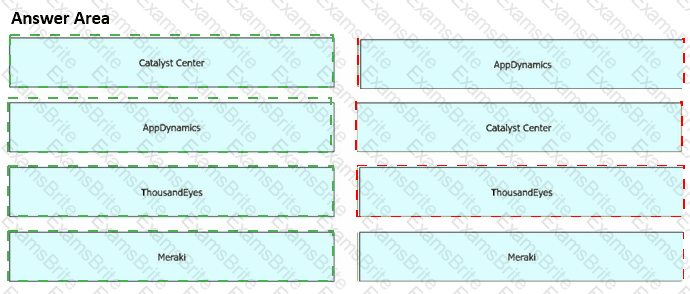

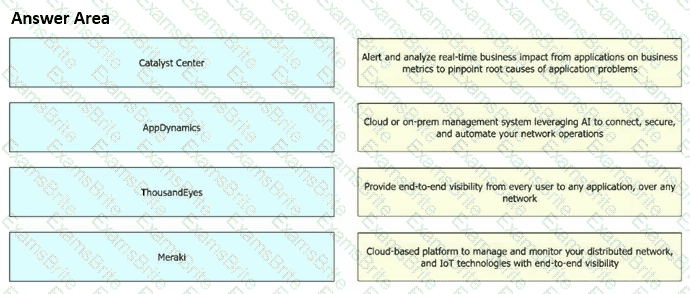

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, each platform is positioned to address a distinct domain of visibility and management within the modern IT visibility framework.

AppDynamics (matched to Case 1) is specifically engineered for Full-Stack Observability and Application Performance Monitoring (APM). Its unique focus is linking technical application performance—such as code-level execution and database queries—directly to business outcomes and real-time business metrics. By doing so, it allows organizations to pinpoint how application latency impacts revenue or user satisfaction, making it the primary choice for business impact analysis.

Catalyst Center , formerly DNA Center (matched to Case 2), serves as the foundational controller for campus and enterprise network infrastructure. It leverages AI-driven insights to automate network operations, enforce security policies, and provide at-a-glance health monitoring for local devices and clients. It is the definitive management system for connecting and securing " inside " the corporate network perimeter.

ThousandEyes (matched to Case 3) provides " Internet Intelligence " and is the key solution for monitoring the service delivery chain across environments the enterprise does not own. By utilizing a global network of Cloud, Enterprise, and Endpoint agents, it provides end-to-end visibility from any user location to any application (SaaS or Cloud) over any network (Internet, ISP, or WAN).

Meraki (matched to Case 4) is a cloud-first platform designed for managing highly distributed network environments and IoT deployments. It provides end-to-end visibility through a simplified dashboard that integrates wireless health, switching, and security across thousands of sites, making it ideal for lean IT teams managing distributed retail or branch locations.

Each platform utilizes different data collection methods—active synthetic testing for ThousandEyes and passive monitoring/AI telemetry for Catalyst Center—to ensure comprehensive network assurance across the entire enterprise ecosystem.

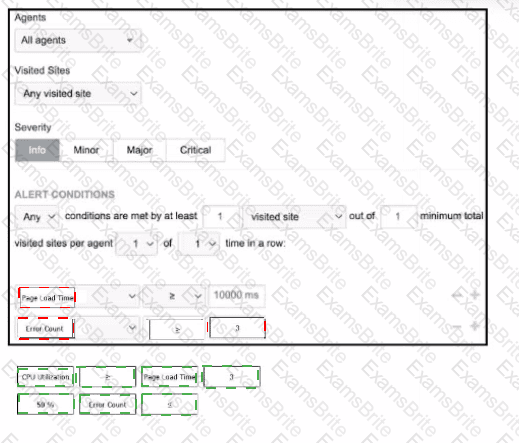

In the ThousandEyes platform, alert rules are the primary mechanism for notifying operations teams when performance thresholds are breached. When configuring alerts for Endpoint Agent HTTP Server tests , the available metrics are limited to those that the Endpoint Agent captures during its synthetic browser-based or network-layer probes.

The two correct metrics for this test type are Response Time (Option A) and Error Type (Option C).

Response Time: This metric measures the time-to-first-byte. It is essential for detecting degradations in web application performance as seen from the user ' s specific machine.

Error Type: This allows administrators to trigger alerts based on specific HTTP response codes or protocol errors (e.g., DNS failures or SSL handshake issues).

Other options are incorrect because they apply to different agent types or monitoring layers:

BGP Reachability (Option B): BGP metrics are not applicable to Endpoint Agent tests. These metrics require the BGP route visualization layer, which is typically associated with Cloud or Enterprise Agents monitoring public internet paths.

Interface Throughput (Option D): This is an infrastructure-level metric rather than a synthetic application metric. While ThousandEyes can monitor device health via SNMP, it is not a metric used in a synthetic HTTP Server test.

By utilizing Response Time and Error Type, an architect can ensure that the operations team is alerted as soon as users experience slow loading or actual failures when accessing critical internal or SaaS-based web applications.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, DNS testing is a fundamental component of ensuring application availability and performance. The ThousandEyes platform provides two primary types of DNS tests: DNS Server and DNS Trace .

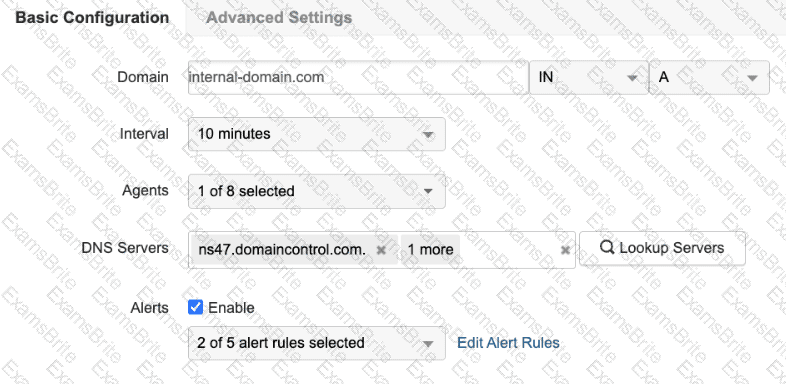

To satisfy the specific requirements of monitoring IPv6 records and name server resolution times , the engineer must utilize the DNS Server test . This test type is designed to measure the performance of specific DNS servers by querying them for particular resource records.

Monitoring IPv6 Records: In the DNS system, IPv6 address records are known as AAAA records . Therefore, to monitor the availability and resolution of IPv6 addresses for a domain, the engineer must create a DNS Server test and set the query type to AAAA (Option B).

Monitoring Name Server Resolution Times: To measure how long it takes for a DNS server to return the authoritative name servers for a domain, the engineer must query for NS (Name Server) records . By creating a DNS Server test targeting the NS record (Option D), the platform can provide granular metrics on the response time and availability of those specific records from the perspective of the selected agents.

DNS Trace tests (Options C and E) are less suitable for measuring specific resolution times of a single server; instead, they are used to visualize the entire delegation path from the root servers down to the authoritative servers to identify where a " break " in the chain occurs. Furthermore, an A record query (Option A) only provides the IPv4 address, failing the requirement to monitor IPv6. By selecting DNS Server tests for AAAA and NS records, the administrator ensures they have the precise performance data needed to baseline and troubleshoot the organization ' s DNS health.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, ThousandEyes provides a suite of native, " out-of-the-box " integrations specifically designed for alert notifications . These integrations are configured via the Manage > Integrations or Alert Rules > Notifications tabs and allow the platform to push instant event data to a variety of collaboration, IT operations, and observability tools.

The verified list of native notification integrations includes:

ServiceNow (A): Facilitates direct incident management and automated ticketing workflows.

PagerDuty (B): Allows for automated incident escalation and on-call routing based on ThousandEyes alerts.

MS Teams (C) & Slack (H): Enable real-time chatops by pushing alert details and permalinks directly into specified channels for team collaboration.

Splunk (D): Utilizes the Cisco ThousandEyes App for Splunk to ingest alert data for historical analysis and correlation within a SIEM or logging platform.

AppDynamics (F): Sends alert notifications directly into an AppDynamics instance, allowing application owners to correlate network issues with APM metrics. 12

Webex (G): Integrates with the Webex Control Hub and specific Webex spaces to provide unified visibility for collaboration performance. 34

AWS (Option E) is not a native alert notification destination 5 in this context; instead, ThousandEyes integrates with AWS for " Cloud Insights " (ingesting VPC Flow Logs) and " Test Recommendations " rather than acting as a receiver for event notifications like a chat or ITSM tool. By utilizing these native integrations, enterprise teams ensure that the right stakeholders are notified through their preferred communication channels the moment a performance threshold is breached, drastically improving response times across the organization.
