A university has three campus locations and the main data center. Each campus location has a Cisco Catalyst 9800-40 WLC that manages 600 APs. The data center has a Catalyst 9800-40 WLC, which serves as N+1 backup for each campus WLC. A consulting engineer must install four additional Catalyst 9800-40 WLCs to serve as high availability SSO pairs for each campus, but only two have been approved due to budget restrictions. Requirements: Data center WLC must always be available as N+1 backup, Campus1 WLC must operate with zero downtime, and in the event of multiple campus outages, the AP priority order is to support Campus3, Campus2, then Campus1. Which design approach must the consulting engineer take?

A customer has two Cisco WLCs configured in a SSO cluster. The wireless network supports a large warehouse. The customer purchases new iPads to replace legacy scanners. Both devices connect to a single SSID named Scanning by using WPA2 Personal. The customer wants to use a standards-based method for fast roaming on the new iPads. Which approach meets the scanner requirement and still supports the legacy scanners?

A customer has 10 access point licenses available on their backup Cisco WLC and their primary Cisco WLC is at full capacity. 5 access points are set to high failover priority and 7 access points are set to critical failover priority. During a failure, not all critical access points failed over to the backup Cisco WLC. Which configuration is the cause of this issue?

A wireless engineer is designing a wireless network for a warehouse using access points with internal antennas. Which two elements have a negative effect on the wireless users? (Choose two.)

What causes the most signal attenuation based on the wireless design tools?

A customer has a single anchor WLC named Anchor A. Anchor A is in a DMZ and provides guest access. The customer wants to deploy an additional anchor controller named Anchor B to provide redundancy if Anchor A fails. Which design approach should be taken for the guest WLAN priority on the foreign WLC for each anchor WLC?

An engineer is estimating the loss between two floors of an office building. Using Ekahau, they have measured -45 dBm at the ground level of the floor with the access point and -50 dBm at the ceiling level of the floor below it. Which value is the loss of the floor?

Users who leave the office with a wireless headset must be able to hand oft the voice call with minimal disruption. The engineer drafted four possible Door plans for AP placement:

• red dots and arrows represent the direction of travel

• blue dots represent the AP placements

Which floor plan provides the requested functionality?

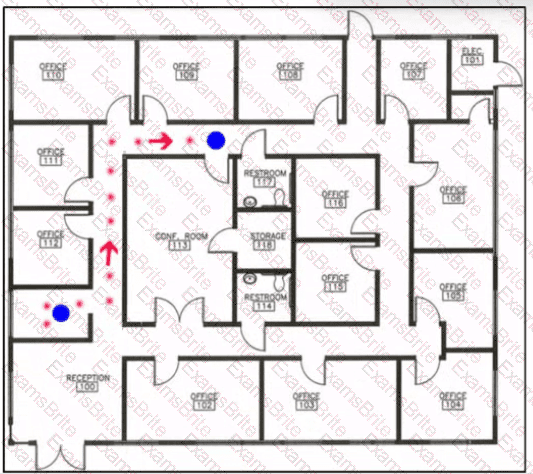

A)

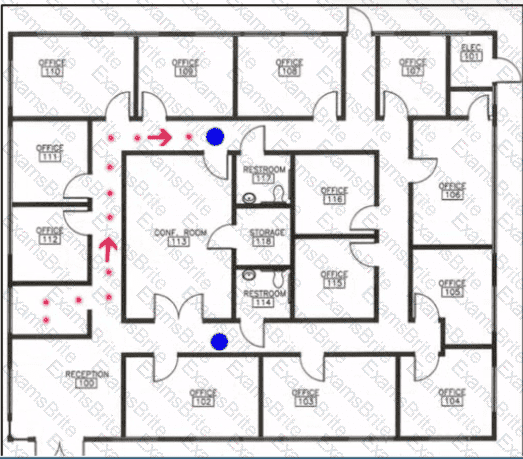

B)

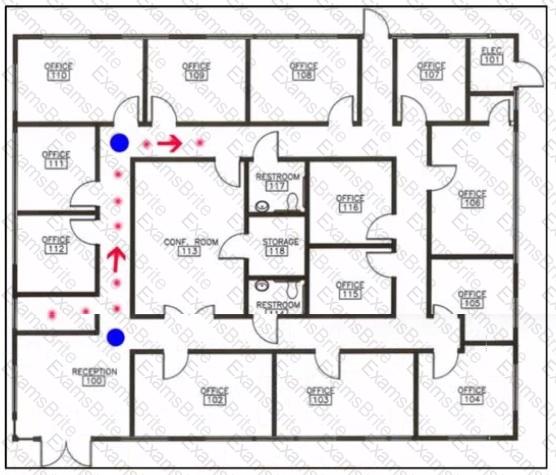

C)

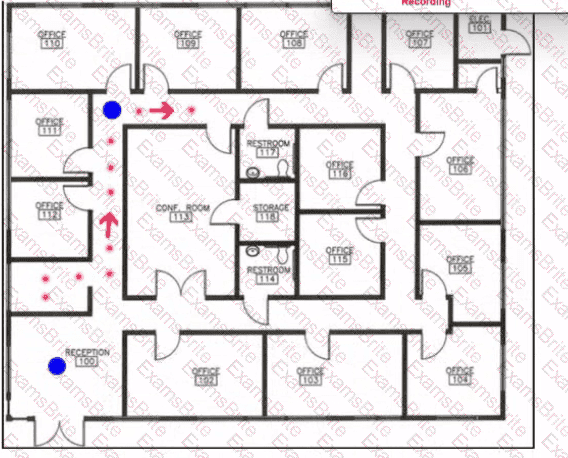

D)

An engineer must perform a predictive wireless survey to indicate the number of access points required. The engineer has created a new project and imported the floor plan. Which step must be taken next for accurate AP placement?

An engineer must design AP placements for a new branch office that contains two floors. The engineer uses Ekahau to complete the predictive survey. To calculate the signal bleed through between floors, the engineer creates a building, adds the floors, and attenuation areas. After the scale is set, what else must be added on the floors to accurately measure the signal bleed at a specific location?

An educational organization recently deployed an anchored WLAN and has a high number of client connections at any given time that stream video. The wireless infrastructure includes two Cisco 9800 WLCs. To prevent web traffic being slow, an engineer must configure the deployment to prevent excessive fragmentation of the client data. Which configuration must the engineer apply?

An engineer is conducting a Layer 2 site survey. Which type of client must the engineer match to the survey?

A wireless network consists of two IOS XE controllers installed in a data center, 9100 series APs, and a corporate and a guest WLAN. The customer must have a high availability pair of two Cisco WLCs for the client SSO. Which two design approaches must the engineer take to meet the requirement? (Choose two.)

A customer purchases this Cisco equipment for a new branch office: • 20 Cisco Catalyst 9120 APs • five Catalyst 9130 APs • a single Catalyst 9300 Series Switch The customer wants to extend its existing wired and wireless fabric-enabled network to the branch office and manage all devices via a centrally deployed Cisco Catalyst Center (formerly DNA Center). Which Cisco Catalyst Center licenses are required for the branch office equipment?

A network engineer must design a new Cisco wireless solution that contains three Cisco 9800-40 WLCs. WLC1 and WLC2 will be combined into one logical unit with SSO and a backup WLC named WLC3 will be joined by using a mobility tunnel. Link redundancy between the WLCs and the switches is required. Which WLCs must the design provide connectivity to the network equipment for LAG to be effective in an SSO failover scenario?

A school deploys a Cisco wireless infrastructure in its classrooms to support a high density of mobile devices. The network administrator wants to bond channels in groups of two and only allow APs to send 802.11 management frames at 24 Mbps. What should be included in the design to accomplish this objective?

A wireless engineer is getting ready to perform a predictive site survey. The new network needs to support data and voice over wireless. Which two Cisco recommendations should be considered for the design? (Choose two.)

A network engineer is configuring high availability on an access point. What is the maximum number of controllers that can be configured?

An engineer is performing a passive survey report. The coverage heat map shows the entire site with all signal levels. To see only the desired coverage, which action must the engineer take?

An enterprise network is deploying two Cisco Catalyst 9800 WLCs in a data center to ensure uninterrupted wireless services for a campus with thousands of users. The IT management requests a design that enables seamless failover without client reauthentication or loss of connectivity if one controller fails. Ease of configuration and ongoing management are high priorities. The controllers will be connected via a high-speed LAN segment, and both must support full active-passive redundancy for all managed APs. Which design approach meets the requirements?

A network design supports data and voice in 2.4 GHz and 5.0 GHz. The design must support asset tracking without affecting the existing design. Which action must be taken?

An enterprise network administrator is asked to set up an experimental WLAN for a collaboration project with a local service provider. The WLAN must be anchored to a WLC in the service provider data center using legacy mobility mode. After the configurations are completed on the WLCs and the firewalls in the path, the data path mobility tunnel is failing to come up. What should be performed by the administrator to debug the issue?

A small customer has a legacy autonomous mode Wi-Fi deployment that provides a low-density and low-capacity service. The customer wants to update and replace this deployment with the latest Wi-Fi technology but has a fixed budget that will pay only to replace the APs. Which architectural controller deployment model suits this requirement?

An engineer configured the optimized client roaming on Cisco WLC with an RSSI threshold of -72 dBm. Clients report frequent disconnections. What must be configured for the AP to guide the client to a better AP?

A customer has a Cisco wireless network that supports VoWLAN services. The customer wants supported voice clients to receive roaming recommendations and suggestions from APs. This functionality must not impact non-VoWLAN clients. What should be enabled on the VoWLAN SSID?

During a post-deployment site survey, issues are found with non-Wi-Fi interference. What should the engineer use to identify the source of the interference?

During a site survey for a new wireless deployment in a multifloor office building, an engineer must identify sources of interference and ensure optimal AP placement for 5 GHz coverage. While walking the site with a spectrum analyzer, the engineer notices periodic spikes in the noise floor on several channels and inconsistent signal strengths reported by the survey tool, despite visually unobstructed paths. Which action must the engineer take next to accurately assess and mitigate the Layer 1 interference?

A retail customer opened two new branch locations, and the main store HQ handles data center operations. Each branch location has three Cisco Catalyst 9130 APs. The data center has a Catalyst 9800 WLC with 18 Catalyst 9130 APs. Growing business and poor WAN uplinks cause impacted branch AP and wireless client connectivity back to HQ, and each branch location is now planned to have its own EWC controller based on C9130 AP to keep traffic local. This new design must accommodate: guests and employees sharing the same WLAN with different VLANs, guest uplink and downlink traffic restricted to 2 Mbps, and each branch acting as secondary or tertiary backup to another branch with the data center WLC always being the primary. Which design approach should the consulting engineer take?
